Quick Details
-
Product Name:
-

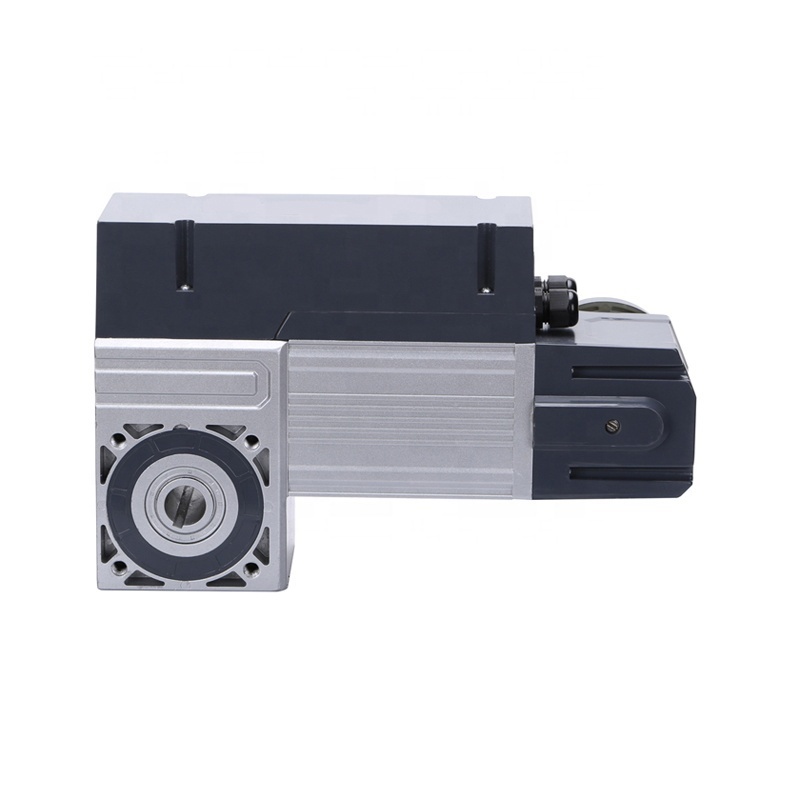

400W Automatic Rolling Shutter / Sectional Door Motor
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Type:
-
Automatic Door Opener
-
Key words:
-
Industrial sectioal door motor
-
Product Name:
-
400W Automatic Rolling Shutter / Sectional Door Motor
The Industrial Sectional Door Motor is ideal solution if you need security and convenience for your residential or commercial property. It is designed for commercial and industrial sectional doors, roller shutters, special doors, folding doors and sliding doors. The door area up to 20 Sq.m., available in AC 220V/50Hz.
It is the essential to select reliable and stable automation for your industrial sectional door. Don't miss the chance, order now!
Oil immersed gear, durable aluminum alloy housing.
Optional for built-in control board or external control unit, integrated receiver.
Self-locking structure, mechanical limit switch.
Standard output shaft aperture dia. 25.4mm, using metal adapter can transfer to dia. 40.00mm.
Hand chain manual release system for emergency power failure.
Multi interface for alarm lamp, photo beam and safety beam.
Output Torque 60N.m
Max. Door Surface 30 Sq.m
Motor Power 400W
Limit Switch Mechanical limit switch
Output Shaft Height 25.4mm
Reduction Ratio 58:1
Remote Control Range ≥30m
Recording of Max Remotes 25 pcs
Work Duty S2 15min
Working Temperature -20℃~70℃
Power Supply AC380V~AC400V
Frequency 433.92MHz
Package Weight 15KG
Motor Size 232*151*368mm
