Products Description
Quick Details

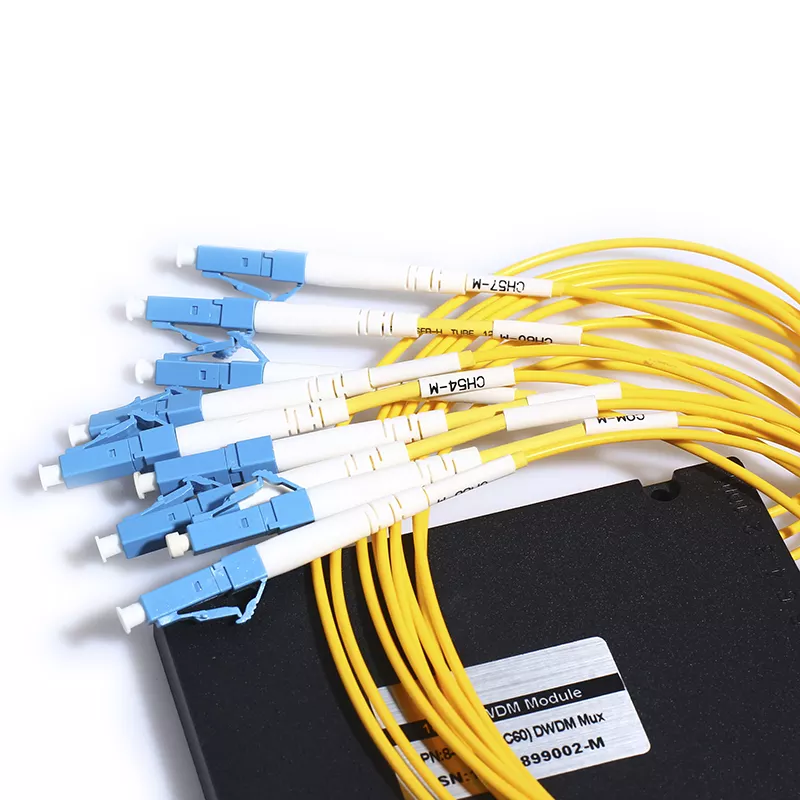

100GHz/200GHz wavelength multiplexer(100,200G DWDM OADM Module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path. It can be used for wavelength add/drop in telecommunication network system.
Product application
1. Channel Add/Drop
2. DWDM Network
3. Wavelength Routing
2. DWDM Network
3. Wavelength Routing
4. Fiber Optical amplifier
Product properties
Product Features:
1. 2-44 channels DWDM Mux/Demux (CH17-CH61)
2. Channel spacing: 0.8nm(100GHz Grid C-Band)
3. Protocol transparent (10Mbps to 100Gbps)
4. Low insertion loss
5. Excellent channel isolation
6. Epoxy-free optical path
7. Compliant to G.657A1 standard
8. Wide Operating Temperature: -20~+70℃
2. Channel spacing: 0.8nm(100GHz Grid C-Band)
3. Protocol transparent (10Mbps to 100Gbps)
4. Low insertion loss
5. Excellent channel isolation
6. Epoxy-free optical path
7. Compliant to G.657A1 standard
8. Wide Operating Temperature: -20~+70℃
Specification
|
Specifications
|
unit
|
Technical data
|
|
Channel Center Wavelength
|
nm
|
C53
|
|
Channel Spacing
|
GHZ
|
100
|
|
Center Wavelength Tolerance
|
nm
|
±0.06
|
|
Channel Passband width
|
nm
|
≥0.38
|
|
Transmission IL
|
dB
|
≤1.1
|
|
Reflection IL
|
dB
|
≤0.6
|
|
Adjcent-isolation
|
dB
|
≥30
|
|
Non-Adjcent-isolation
|
dB
|
≥40
|
|
Reflection Isolation
|
dB
|
≥13
|
|
Channel Ripple
|
nm
|
≤0.5
|
|
Wavelength thermal stability
|
nm/℃
|
≤0.001
|
|
IL thermal stability
|
dB/℃
|
≤0.008
|
|
Directivity
|
dB
|
≥55
|
|
Return loss
|
dB
|
≥45
|
|
PDL
|
dB
|
≤0.1
|
|
Max.power
|
mw
|
300
|
|
Working temperature
|
℃
|
-5~65
|
|
Storage temperature
|
℃
|
-40~85
|
|
Fiber type
|
-
|
G657A1
|
|
Fiber length
|
m
|
≥1.0
|
|
Package dimension
|
mm
|
130*100*25
|
|
Connector type
|
-
|
LC/PC
|
Product packaging
|
Package info.
|
QTY(pcs)/ctn
|
Ctn size(mm)
|
Weight（N.W）
|
Weight（G.W）
|
|
Small ctn
|
2pcs
|
150*120*55
|
0.15
|
0.2
|
|
Big ctn
|
100pcs
|
590*380*305
|
11
|
12
|
