Quick Details
-
Name:
-
Normally open door contact switch
-
Type:
-
Wired Magnetic switch contact
-
Material:
-
Alloy-Zn , Metal magnetic reed switch sensor
-
Color:
-
Grey
-
Operating Gap Inch (mm):
-
2(50±10)
-
Certificate:
-
CE FCC CCC ROHS
-
Output:
-
NO/NC,or NC
-
Reed form:
-
Open Loop or SPDT
-
Describe:
-
12v support NO NC COM normally open door contact switch
-
Installation:
-
Surface mounted metal magnetic reed switch sensor
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
P&H
-
Model Number:
-
ES154
-
Name:
-
Normally open door contact switch
-
Type:
-
Wired Magnetic switch contact
-
Material:
-
Alloy-Zn , Metal magnetic reed switch sensor
-
Color:
-
Grey
-
Operating Gap Inch (mm):
-
2(50±10)
-
Certificate:
-
CE FCC CCC ROHS
-
Output:
-
NO/NC,or NC
-
Reed form:
-
Open Loop or SPDT
-
Describe:
-
12v support NO NC COM normally open door contact switch
-
Installation:
-
Surface mounted metal magnetic reed switch sensor

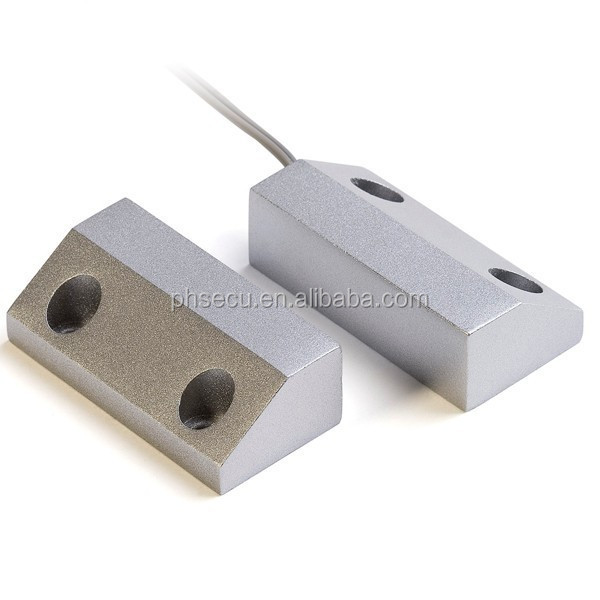

Product description
Name
Magnetic Reed Switch
Infrared sensor none touch 12v support NO NC COM normally open door contact switch
Features
1. Switch & magnet concealed in polished alloy-zinc die-cast housing
2. 21 inch (53cm) side leads
3. Screws included
4. Magnet : NdFeB
5. Color : grey
6.Reed: OKI®
7. Ideal for commercial application or industrial use
Characteristic
Japanese UL listed OKI Reed
Open Loop or SPDT is available if required
Deactivated Rhodium
Plated Reed
Technical Data
| Model | Loop Type | Reed Form | Operating Gap Inch (mm) | Max Contact Resistance (Ohm) | Max Rating Current (mA) | Max Switching Voltage (VDC) |
| ES154 | closed | NO | 2(50±10) | 0.2 | 500 | 100 |
