Perforated Acoustic Gypsum Board Ceiling Tiles With Office Place Removable Modules China Supply Pvc Ceilings

Perforated Acoustic Gypsum Board Ceiling Tiles With Office Place Removable Modules China Supply Pvc Ceilings

FOB Reference Price: Get Latest Price

≥300 Square meters

US $1.45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Office Building

Design Style:: Modern

Place of Origin:: Jiangsu, China

Brand Name:: DEGOTONE

Model Number:: Gypsum600

Material:: Gypsum

Back:: Acoustic paper

surface:: White paint/PVC

Size:: 600X600mm/600X1200mm

Thickness:: 9.5/12.5mm

Hole:: Round 6mm/Square12mm /Mirco 3mm

Weight:: 7.7kg/m2

System:: Ceiling grid T bar

Fireproof:: A2 -s1d0

Sound absorption:: NRC0.65

Quick Details

Warranty:: 3 years

After-sale Service:: Online technical support, Onsite Installation

Project Solution Capability:: graphic design

Application:: Office Building

Design Style:: Modern

Place of Origin:: Jiangsu, China

Brand Name:: DEGOTONE

Model Number:: Gypsum600

Material:: Gypsum

Back:: Acoustic paper

surface:: White paint/PVC

Size:: 600X600mm/600X1200mm

Thickness:: 9.5/12.5mm

Hole:: Round 6mm/Square12mm /Mirco 3mm

Weight:: 7.7kg/m2

System:: Ceiling grid T bar

Fireproof:: A2 -s1d0

Sound absorption:: NRC0.65

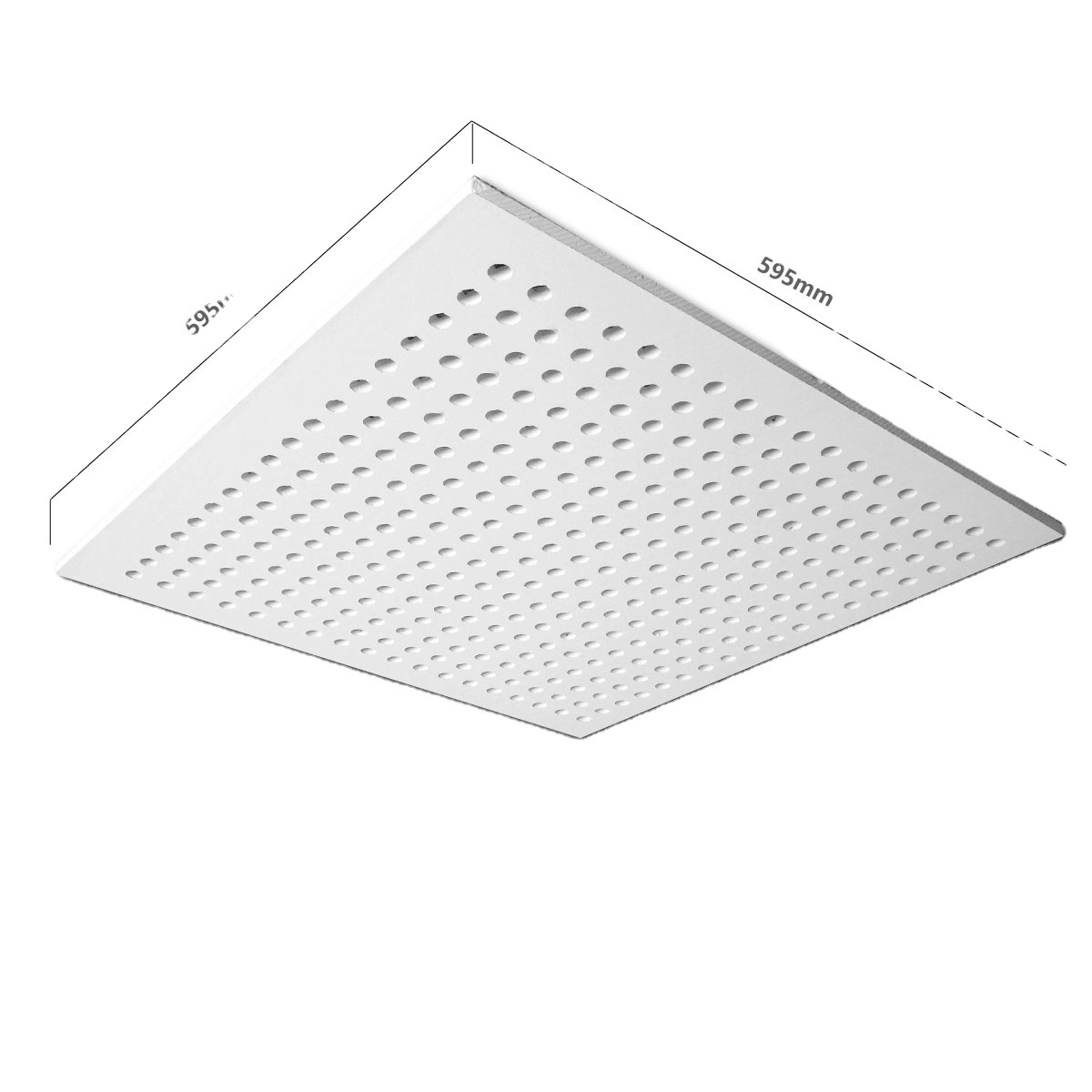

DEGOTONE -600X600mm GYPSUM CEILING TILES
20 years of factory direct supply

--600*600mm High quality Gypsum suspended ceiling tiles，

-8mm 9.5mm 12mm thickess

- OEM for many of the world's big brands

- Surface Texture: PVC vinyl and Acrylic Coating Factory Finished

-Lay in with standard suspension grid system. Modular, detachable, easy to cut and handle

-Fireproof A2 . RH90 Moisture resistance

-Four type : Vinyl 600 Perforated600 Base600 black600

Perforated600

erforation pattern shall be (Tangent, T1 14 x 4mm oval, Micro M1 3 x 3 mm) (squarel Q1 12 x 12 mm) (round 6 mm diameter) (Regula
non perforated) with acoustic tissue backing, (aW 0.65) (Tangent aW 0.73), prepainted white, fire group , size (600 x 600) (1200 x
300) (other) suspension shall be (T24) (T15) two way exposed grid system

Base600
Painted Gypsum tile

adaptable range of pre-finished white gypsum suspended ceiling tiles available in a choice of smooth, textured or Embossed finishes.

Vinyl 600 PVC

Degotone satinspar is a vinyl-faced gypsum tile used with quick-lock lay-in grid to form a demountable suspended ceiling. It has a
smooth, wipeable, surface finish and is ideal for use in a range of commercial and residential ceiling applications

Material:	High-strength gypsum
Surface:	PVC /Acrylic latex paint
Color	White
Hole	Round 6 mm，squarel Q1 12 x 12 mm.Tangent, T1 14 x 4mm oval, Micro M 3 x 3 mm
Sizs：	595595mm，5951195mm
Thickness	8/9.5/12.mm
Weight	7.7kg/m2
Edge	Square ,Tegular
Perforation rate	9-21.3%
Fireproof class	A2 -s1d0
Acoustic performance	αwup to 0.65 - NRC up to 0.65 - Dncwup to 39dB
Moisture resistance	RH70
Suspension system	Ceiling grid (Ceiling T bar)

Square A24 Edeg

Exposed T-15 grid, Exposed T-24 grid Demountable/Prepainted

Tegular E15 Edeg

Exposed, recessed T-15 grid Demountable/Prepainted

Concealed D24 Edeg

Concealed T-24 grid Demountable/Prepainted

Technical data	Value
Edge	A 24	B	E15	D24
Modular size, mm	600 x 600 1200 x 600	600 x 600 1200 x 600	600 x 600 1200 x 600	600 x 600 1200 x 600
Actual size, mm	595 x 595 1195 x 595	595 x 595 1195 x 595	595 x 595 1195 x 595	595 x 595 1195 x 595
Thickness, mm	9.5 12.5	9.5 12.5	12.5	12.5
Weight	7 kg/m2 8 kg/m2	8 kg/m2	8 kg/m2	8 kg/m2
Fire performance	A2s1d0	A2s1d0	A2s1d0	A2s1d0
Colour	White	White	White	White
Light reflection	86%	86%	86%	86%
Perforation rate	8.7-23%	8.7-23%	8.7-23%	8.7-23%
Hole Type	Round Square MICRO Oblong	Round Square MICRO Oblong	Round Square MICRO Oblong	Round Square MICRO Oblong
