Quick Details
-
Warranty:
-
5years
-
Brand Name:
-
TAISHINESOLAR
-
Model Number:
-
THS120-BS
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
540*450*50
-
Certificate:
-
CE, ROHS,ISO9001,ISO14001
Quick Details
-
Cell size:
-
166*83*0.19mm
-

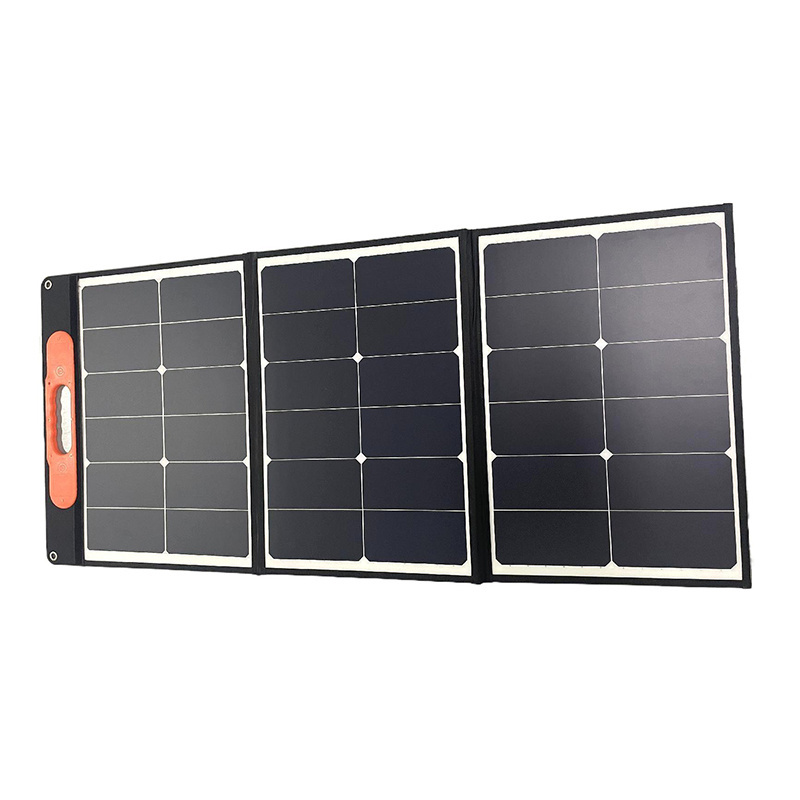

Type:
-
Flexible, Foldable
-
Panel Efficiency:
-
19.5%
-
Warranty:
-
5years
-
Brand Name:
-
TAISHINESOLAR
-
Model Number:
-
THS120-BS
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
540*450*50
-
Certificate:
-
CE, ROHS,ISO9001,ISO14001
- Products Description -
|
Model
|
MONO 120W/18V
|
|
Peak power Pm(W)
|
120W(±3％)
|
|
Open circuit voltage Voc(V)
|
21.6V(±3％)
|
|
Max. power voltage Vmp(V)
|
18V(±3％)
|
|
Max. power current Imp(A)
|
6.66A(±3％)
|
|
Short circuit current Isc(A)
|
7.33A(±3％)
|
|
Dimensions(L*W*T)/ Weight(kgs)
|
540*450*50/1190*540*30/3.2kg
|
|
solar cell / No. of cells and connections
|
IBC 166*83*0.19mm/36 series
|
|
Module conversion efficiency
|
19.5(±5％)
|
|
Front cover(material/thickness)
|
PET
|
|
Encapsulant(material)
|
Ethylene vinyl acetate(EVA)
|
|
Frame(material/collor)
|
/
|
|
Junction box protection degree
|
≥IP67
|
|
Cable /Cable connector Model
|
/
|
|
STC
|
Irradiance:1000W/m2,Cell temperature:25℃,AM:1.5
|
|
Max. static load ,front(e. g .,snow/wind)
|
2400Pa
|
|
Max. static load ,back(e. g .,wind)
|
2400Pa
|
|
Max. hailstone impact (diameter/velocity)
|
25mm/ 23m/s
|
|
Max. over-current (A)
|
15A
|
|
Max. system voltage (V)
|
1000V DC
|
|
Application Class
|
Class A
|
|
NOCT
|
48±2℃
|
|
Operating temperature limits
|
-10℃- +60℃
|
|
Coefficient current TK
|
0.1%/℃
|
|
Coefficient voltage TK
|
-0.37%/℃
|
|
Coefficient power TK
|
-0.45%/℃
|
|
Life
|
≥25 years
|
|
Warranty
|
5 years,Pm≥80% in 10 years, Pm≥60% in 15 years
|
|
Product Certification / Standard
|
CE，ROHS（IEC61215）
|
|
Other Certification
|
ISO 9001：2015
|
