Quick Details
-
Keypad Button Material:
-
polyester/polycarbonate
-
Cross Reference:
-
1
-
Name:
-
Electronic Control Keypads Digital Printed Toy Membrane Switch
-
Color:
-
Pantone
-
Certification:
-
ISO9001:2008
-
Material:
-
PET PC
-
Rear adhesive:
-
3M468MP Adhesive
-
Adhesive:
-
3M467/468
-
Printing:
-
Screen Printing
-
Size:
-
Customized Size
-
Membrane switch:
-
OEM Membrane Switch
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FLEXKYS
-
Model Number:
-
Custom
-
Keypad Button Material:
-
polyester/polycarbonate
-
Cross Reference:
-
1
-
Name:
-
Electronic Control Keypads Digital Printed Toy Membrane Switch
-
Color:
-
Pantone
-
Certification:
-
ISO9001:2008
-
Material:
-
PET PC
-
Rear adhesive:
-
3M468MP Adhesive
-
Adhesive:
-
3M467/468
-
Printing:
-
Screen Printing
-
Size:
-
Customized Size
-
Membrane switch:
-
OEM Membrane Switch

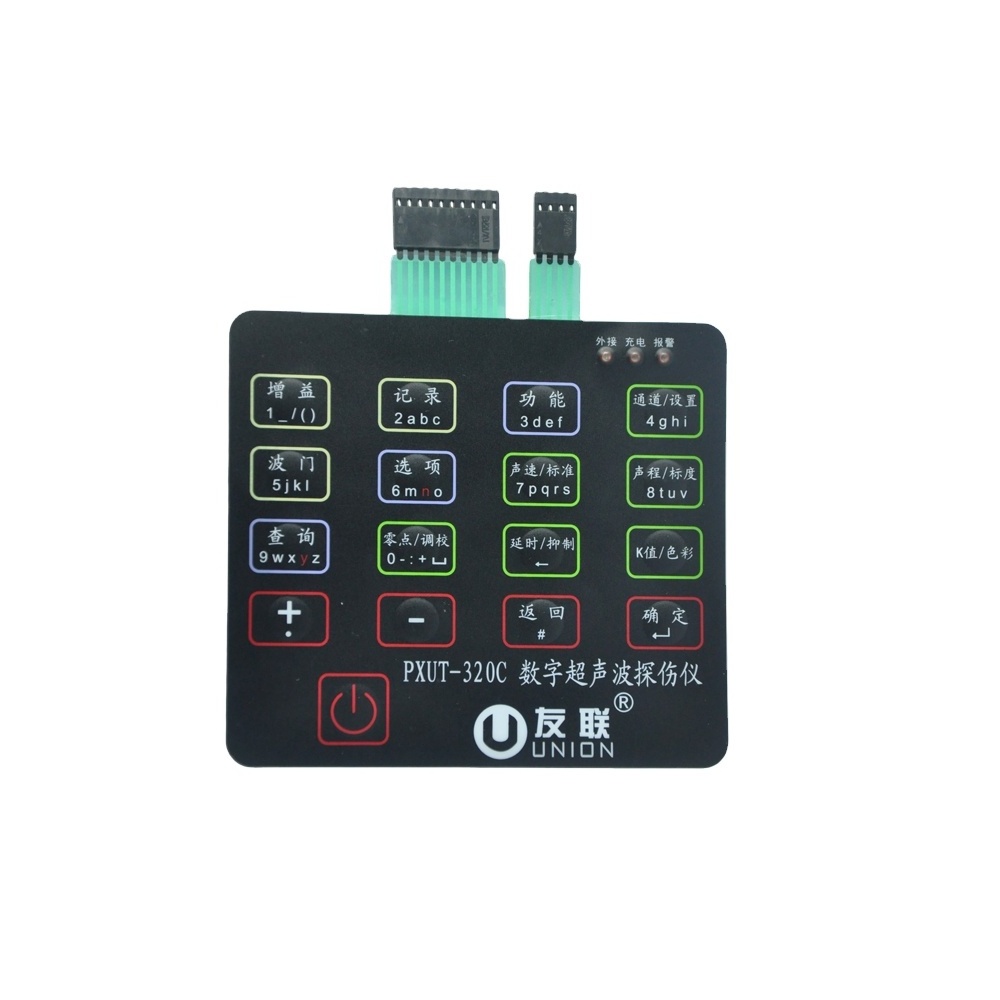

Custom Embossing Electronic Control Keypads Digital Printed Toy Membrane Switch
| Part | Ordinary Material | ||
| Graphic Overlay | Finish | Specification | |
| PC | Gloss | 0.175/.25/.35/.5 mm thickness | |
| Matt | 0.175/.25/.35/.5 mm thickness | ||
| PET | Fine Texture | 0.15/.20 mm thickness | |
| Valet Texture | 0.15/.20 mm thickness | ||
| Gloss with Hard Coat | 0.18 mm thickness | ||
|
Top Adhesive |
PET Double-sided Tape |
0.10/.125mm |
|
| Paper Double-sided Tape | 0.10mm | ||
| Transfer Tape |
0.06/.12mm |
||
| Retainer | PET | Gloss | 0.125mm |
| Spacer | PET Double-sided Tape | 0.225/.275mm | |
| Circuit Layer | PET | Gloss | 0.125mm |
|
Rear Adhesive |
Paper Double-sided Tape | 0.10mm | |
| Transfer Tape | 0.06/.12mm | ||
|
Connector |
Pin | Metal,Male/Female 2.54mm | |
|
House |
Female,2.54mm |
||
|
Conductive Layer |
Silver Paste |
Acheson ELECTRODA 820B | |
| Carbon Paste | Acheson ELECTRODA 423SS | ||
| Insulation Ink | Acheson ELECTRODA 452SS | ||
|
Electrical Performances |
|||
|
Wire Resistance |
0.5mm width,< 1Ω/cm |
Rated Current |
25-100mA, 0-30V DC |
|
Insulation Resistance |
>100MΩ 250V DC |
Working Voltage |
<50V DC |
|
Non-tactile Switch |
0.1-0.4mm |
Tactile Switch |
0.4-1.0mm |
|
Working Life |
> 1 million times |
Working Temperature |
-40℃-70℃ |
|
Working Humidity |
40℃,98%RH No Influence |
Substrate Voltage |
1500V DC |
|
Feed backTime |
10ms |
Tail Folding |
R>1,180 |
1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 15~20 days after payment received.
5. Payment terms:
100% T/T in advance.
