● 9cm thick wallboard can equal 24cm thick brick wall or 20cm thick aerated block wall
● The wallboard can meet the national standard requirements without installing thermal insulation materials, providing people with a comfortable living environment.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ORANGEMECH
-
Voltage:
-
380 V, 50 HZ
-
Power:
-
5.5 kw
-
Dimension(L*W*H):
-
2500*900*750 mm
-
Weight:
-
950 kg
-
Product name:
-

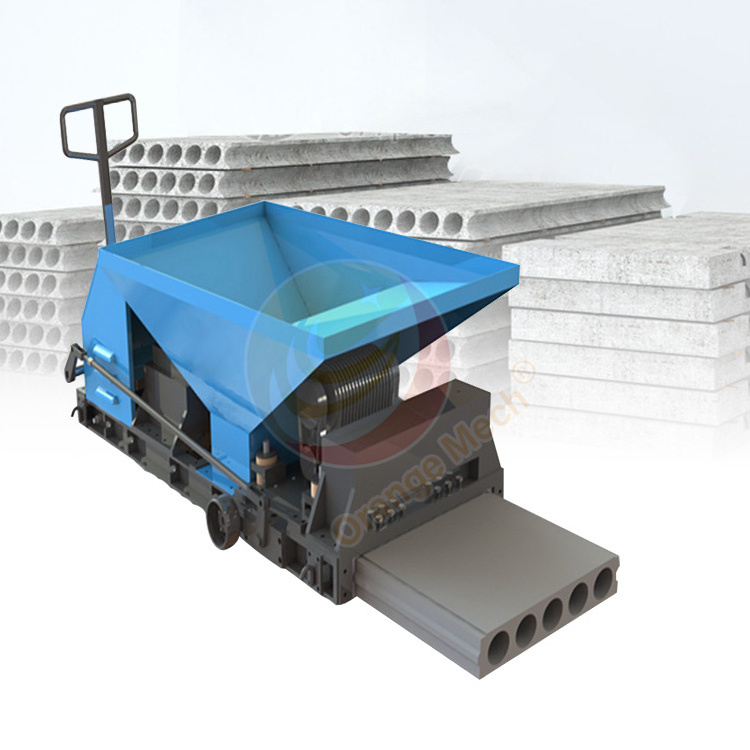

Precast Concrete Wall Panel Making Machine
-
Usage:
-
Precast Concrete Wall Panel Extrusion
-
Finished Product Specification:
-
L*600*90mm, L*600*100mm
-
Number Of Holes:
-
7 Holes 58-62mm
-
Relative moisture content:
-
39.2%
-
Drying shrinkage:
-
0.53mm/m
-
Airborne sound weighted sound insulation:
-
39db
-
Areal density:
-
79.8kg/㎡
-
After-sales Service Provided:
-
Video Technical Support
-
Package:
-
Standard wooden box packing
Quick Details
-
Application:
-
Precast Concrete Board Making Machine
-
Production Capacity:
-
1.5-3 m/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ORANGEMECH
-
Voltage:
-
380 V, 50 HZ
-
Power:
-
5.5 kw
-
Dimension(L*W*H):
-
2500*900*750 mm
-
Weight:
-
950 kg
-
Product name:
-
Precast Concrete Wall Panel Making Machine
-
Usage:
-
Precast Concrete Wall Panel Extrusion
-
Finished Product Specification:
-
L*600*90mm, L*600*100mm
-
Number Of Holes:
-
7 Holes 58-62mm
-
Relative moisture content:
-
39.2%
-
Drying shrinkage:
-
0.53mm/m
-
Airborne sound weighted sound insulation:
-
39db
-
Areal density:
-
79.8kg/㎡
-
After-sales Service Provided:
-
Video Technical Support
-
Package:
-
Standard wooden box packing
Concrete Structural Precast Wall Panel Extrusion Machine Fence Panel Moulding Making Boundary Wall Machine
Product Description
Specification
|
Model
|
OR-90-600
|
OR-100-600
|
|
Power
|
5.5kw
|
5.5kw
|
|
Voltage
|
380v 50Hz
|
380v 50Hz
|
|
Dimensions
|
2500×900×750mm
|
2500×900×750mm
|
|
Weight
|
950kg
|
1000kg
|
|
No.*Diameter Of Hole
|
7* Ø58mm
|
7* Ø68mm
|
|
Production Efficiency
|
1.5-3m/min
|
1.5-3m/min
|
|
Finished product specification
|
L×600×90mm
|
L×600×100mm
|
|
Hollow rate
|
34.6%
|
32.6%
|
Thermal Insulation Performance
● The lightweight partition board itself is inorganic substance, never burn, never produce toxic gas
● It's an ideal fireproof material. 9cm thick wallboard's fire resistance can reach 2 hours
● Low elastic modulus
● Fast impact energy absorption
● The seismic level can reach level Ⅶ
● The wallboard can be cut and sawed
● The line groove can be cut and chiseled
● Can change the previous difficult situation of brick wall buried line.
Convenient Construction
● No need for tie bars, door and window lintels, install concrete bricks for door and window frames during construction
● The wallboard can be sawed, nailed, chiseled, and it is convenient for water, wire pipe pre-embedding, door and window installation and node treatment during construction
● Factory prefabrication
● On-site assembly
● Fast construction speed
● Improving labor efficiency greatly
● No plastering is required to avoid wet work
● Less construction waste
● Can keep the construction site clean
