Quick Details
-
EINECS No.:
-
230-391-5
-
Place of Origin:
-
HeFei,China
-
Brand Name:
-
AOQ
-
Model Number:
-
G-200
-
Type:
-
Gel/Paste
-
Thermal conductivity:
-
2.0W/m.k
-
Net weight:
-
1kg / can
-
Color:
-
Gray
-
Temp Range:
-
-40~220℃
-
Shelf life:
-
24 Months
-
Certification:
-
ROHS,ISO,HF,REACH-SVHC
Quick Details
-
CAS No.:
-
7085-85-0
-
Other Names:
-
thermal Paste
-
MF:
-
Mixture
-
EINECS No.:
-
230-391-5
-
Place of Origin:
-
HeFei,China
-
Brand Name:
-
AOQ
-
Model Number:
-
G-200
-
Type:
-
Gel/Paste
-
Thermal conductivity:
-
2.0W/m.k
-
Net weight:
-
1kg / can
-
Color:
-
Gray
-
Temp Range:
-
-40~220℃
-
Shelf life:
-
24 Months
-
Certification:
-
ROHS,ISO,HF,REACH-SVHC
Product Description

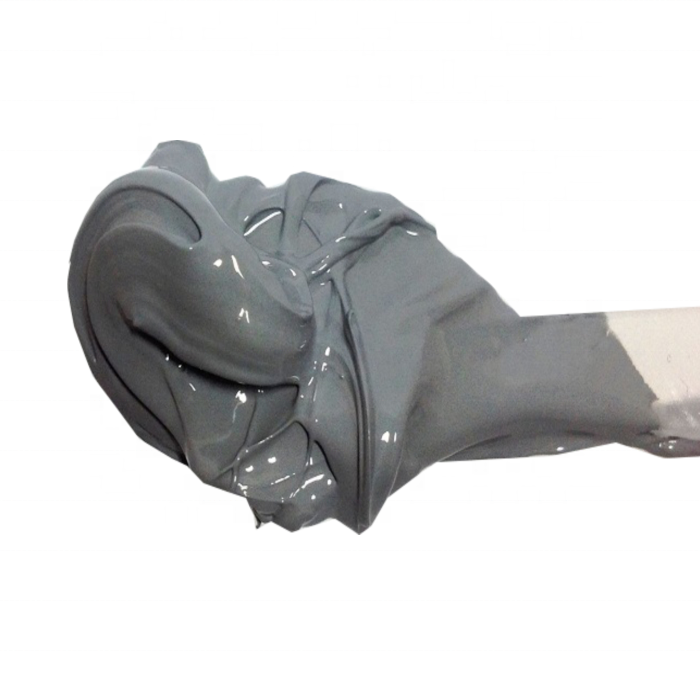

Grey Silicone Compound Thermal Paste Conductive Grease Heatsink
For CPU GPU Chipset notebook Cooling with scraper
G200 thermal conductive silicone grease is a thermal conductive silicone grease with high thermal conductivit.It can fully wettability transfer interface of heat, eliminate the air gap between the formation of interface, forming effectively heat transfer path,reduce the thermal resistance between the radiator . It can be used at -30℃-200℃ for a long time, and can keep the contact surface moist even at temperatures above 200℃,has low oil separation and excellent weather resistance.
Product advantages
★
Low thermal resistance, high thermal conductivity, good thermal conductivity
★
Strong weather resistance (high and low temperature resistance, humidity resistance, aging resistance, etc.)
★
Excellent performance with electric insulation;
★
Non-toxic, Tasteless, Non-corrosive.
Typical applications
★ Desktop computer CPU
★ Radiator, cooling module
★ Power tube, electric reactor, inverter
★ Dedicated power supply, regulated power supply
★ TV, LED lighting
★ Electric wire equipment
G300 thermal grease technical parameters
Properties
|
G200
|
Test method
|
Main Raw Material
|
Mixture of non-vulcanized silicone oil and thermal filler
|
——
|
Shelf life
|
24 months
|
——
|
Form
|
Paste
|
visual
|
Viscosity(mPa.s)
|
250000
|
NDJ-4
|
Specific gravity(g/cm3)
|
2.3
|
ASTM D792
|
Color
|
Gray
|
Visuai
|
Working Temperature(℃)
|
-30—200
|
EN344
|
Breakdown voltage(Kv/mm)
|
5
|
ASTM D149
|
Thermal resistance(℃·in2/W)
|
0.085
|
ASTM D5470
|
Volatilization ratio (%)
|
<0.05
|
120℃,4hr
|
Solid content(%)
|
99.9
|
120℃,4hr
|
Thermal conductivity(W/m.k)
|
2.0
|
ASTM D5470
|
Smearing Steps
Directions for use
Please stir well before each use, and store in a cool, cool, dry, ventilated place sealed at room temperature after use.
Company Introduction
Hefei AOQI Electronic Technology Co., Ltd.:
is established in 2008, it is an enterprise integrating R & D, die cutting, processing and sales. The company's main products include:Thermal Pad ,Thermal Grease,Thermally conductive mud,Thermal conductive double sided adhesive tape,super high conductivity of synthetic graphite film, potting adhesive, electromagnetic wave shielding material, copper foiltemperature materials, phase change material,conductive, insulation materials etc..
Our products have passed UL, RoHs, SGS, REACH and other three certification bodies, the company has passed ISO9001, ISO14001 certification. We coope
ra
te w
ith
Samsung, Foxconn, OPPO, millet, LG,BYD, BenQ, Changhong, AOC,Panasonic, Haier, Hisense, TCL, SKYWORTH, Philips .
We have a powerful R&D team.We can provide OEM & ODM service for clients. We have the ability to provide the customers from the solution to the material selection and from the implementation of the manufacturing process to the related reliability performation test.All of our products thermal conductivity under reality test.
We have a powerful R&D team.We can provide OEM & ODM service for clients. We have the ability to provide the customers from the solution to the material selection and from the implementation of the manufacturing process to the related reliability performation test.All of our products thermal conductivity under reality test.
Certifications
Aoqi passed the international authoritative quality system certification and environmental safety system certification to ensure the quality and safety of customers. Such as: ISO9001: 2015, ISO14001: 2015, UL, RoHs, SGS, REACH and product patents.
Our customers
Packing & Delivery
Safe packing.
300g/can,
1kg/
can,
2kg/
carton,
4
kg/
carton
,
8kg/
carton
,
10kg/
carton
.
Port: Guangzhou/shenzhen/hongkong
Lead Time :3-7working days after payment(Except Holiday).
Shipping methods:DHL,Fedex,TNT,UPS,Air,Ship,please let us know which methods do you prefer
FAQ
Q1:Do you provide samples?
A1: Yes, we do, and could delivery in 24 hours after confirmation for stock. And we can offer free samples.
Just please pay the shipping fee.
Q2:
How long is the warranty period?
A2:
Warranty period of 2 years, any quality problem within 2 years can be returned or replaced free of charge.
so you can rest assured to buy.
Q3: Do you have MOQ?
A3: No MOQ for the standard product.
Q4: Are you factory or trading company?
Q4: Are you factory or trading company?
A4: No, we are a professional manufacturer for over 12 years.
Q5: What is the lead time for mass production?
A5: The lead time of mass production is about 3 - 7 days.
Q6: What is your payment method?
Q6: What is your payment method?
A6: Accept TT, Paypal, West Union, L/C, ect.
