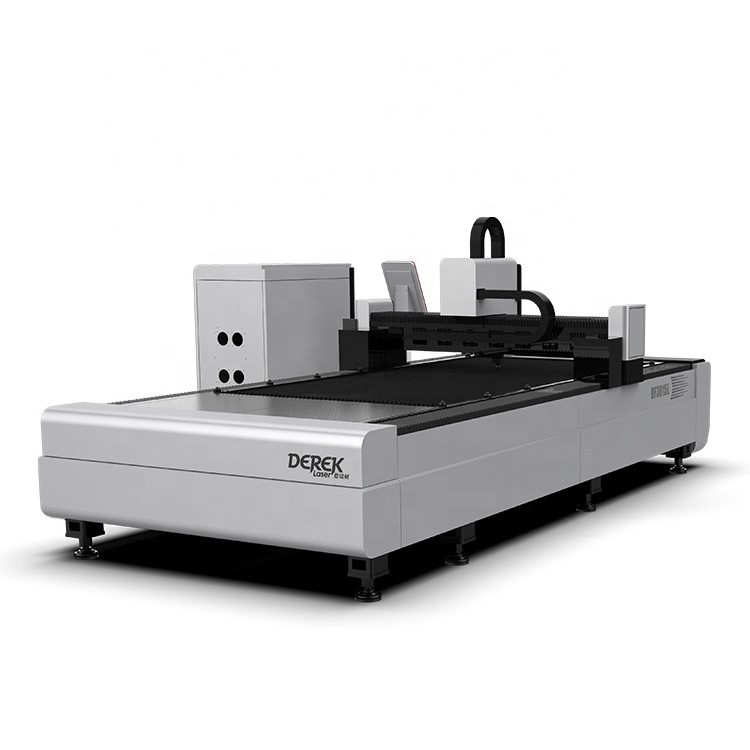

Professional Factory Yes Thunder - CNC Fiber Laser Cutting Machine 1000W

Professional Factory Yes Thunder - CNC Fiber Laser Cutting Machine 1000W

FOB Reference Price: Get Latest Price

≥1 Sets

US $12400

≥3 Sets

US $11900

≥5 Sets

US $11400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: Cypcut

Cutting Area:: 3000*1500mm

Cutting Thickness:: depend on Materials

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: Huamei

Weight (KG):: 3000 KG

Optical Lens Brand:: Raytools

Product name:: Fiber Laser Cutting Machine

Model:: DF3015L

Laser power:: 000W / 1500W/ 2000W / 3000W/4000W/6000W

System:: Au3Tech/ cypcut 2000c/cypcut2000E

Laser head:: Au3Tech /Raytools/Boci

Cutting materials:: Aluminum /brass/ copper/carbon steel/stainless steel

Laser source:: IPG/Raycus/ MAX /RECI

Motor:: Japan Fuji Servo Motor/Yaskawa servo motor

Working area:: Working area

Keyword:: Laser Cutter

Quick Details

Laser Type:: Fiber Laser

Cutting Speed:: fiber laser cutting machine cnc 2kw cut dimensions

Cooling Mode:: WATER COOLING

Control System Brand:: Cypcut

Cutting Area:: 3000*1500mm

Cutting Thickness:: depend on Materials

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: Huamei

Weight (KG):: 3000 KG

Optical Lens Brand:: Raytools

Product name:: Fiber Laser Cutting Machine

Model:: DF3015L

Laser power:: 000W / 1500W/ 2000W / 3000W/4000W/6000W

System:: Au3Tech/ cypcut 2000c/cypcut2000E

Laser head:: Au3Tech /Raytools/Boci

Cutting materials:: Aluminum /brass/ copper/carbon steel/stainless steel

Laser source:: IPG/Raycus/ MAX /RECI

Motor:: Japan Fuji Servo Motor/Yaskawa servo motor

Working area:: Working area

Keyword:: Laser Cutter

Product name	Fiber laser cutting machine
Model	DF3015L fiber laser cutting machine
Rotary Attachment	For metal sheet cutting
Control System	Cypcut
Laser Power	Domestic 1000w/1500w/2000w/3000w/4000w Raycus
Working Area	3000*1500mm
Power Consumption	≤12KW
Laser Wave Length	1080nm
Working Voltage	380V, 50HZ/60HZ
Working Table	Sawtooth
Auxiliary Gas	oxygen,nitrogen,air
Maximum Idle Running Speed	1400mm/s
Working life of fiber module	More than 100000 hours
Fiber laser cutting head	Worthing/Raytools/Precite
Liner guider system	PMI made in Taiwan , (Option THK made in Japan)
Transmit system	Dual Rack & Pinion type
Warranty time	Whole machine for 24 months
Delivery time	7 days
Gross weight	3000kg
Driver system	Janpan FUJI servo motor
Working life of fiber module	More than 100000 hours

French Motoreducer

Fuji Servo motor

FSCUT 2000C control system

Raytools BMH 110

IPAD-Designing-Screen

PMI Guide rail

Raycus Laser source

Schneider electronic components

Taiwan Vastan Gear Rack

Aviation aluminum gantry

Compared with some other metal beams, the aluminum alloy bracket is lighter in weight because of the lower density of aluminum. It
is used on large-format laser cutting machine to ensure the laser head’s running speed and high-speed running stability.

Auto focus laser head

1.The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.
The speed of automatically adjusting focus lens is ten times of the manual adjusting. 2.Bigger adjustment range 3.Adjustment range
-10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates. 4.Long service life 5.Collimator lens and focus
lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.
Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the
resistance and stability of the guide rail so as to effectively avoid the deformation of the bed. High strength, stability, and
tensile strength, ensuring 20 years of use without distortion; laser cutting machine. The thickness of the rectangular pipe wall
is 6mm and weighs 3000 kg.

IPAD-Designing-Screen

The IPAD is designed with a vertical display that is fast in response, high in contrast, wide in the field of view, low in power
consumption, and high in resolution, unlike traditional horizontal displays. In addition, it features high brightness levels and
low reflectivity as well as a rugged solid glass panel.

Dust-proof & Automatic Thermostat

Dust-proof: All electrical components and laser sources are built-in into the independent control cabinet with a dust-proof design
to prolong the lifespan of the electrical components. Automatic Thermostat: The control cabinet is equipped with an air
conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.

Material	Thickness	1000w	1500w	2000w	3000w	4000w	6000w
Unit	mm	m/min	m/min	m/min	m/min	m/min	m/min
CS (Q235A)	1	8.0-10	15-26	24-30	30-40	33-42	35-42
		2	4.0-6.5	4.5-7.0	4.7-7.5	4.8-7.5	5.2-8.0	6.0-8.0
		3	2.4-3.0	2.6-4.0	3.0-4.8	3.3-5.0	3.5-5.5	3.8-6.5
		4	2.0-2.4	2.5-3.0	2.5-3.5	3.0-4.2	3.1-4.8	3.5-5.0
		5	1.5-2.0	2.0-2.5	2.2-3.0	2.6-3.5	2.7-3.6	3.3-4.2
		6	1.4-1.6	1.6-2.2	1.8-2.6	2.3-3.2	2.5-3.4	2.8-4.0
		8	0.8-1.2	1.0-1.4	1.2-1.8	1.8-2.6	2.0-3.0	2.2-3.2
		10	0.6-1.0	0.8-1.1	1.1-1.3	1.2-2.0	1.5-2.0	1.8-2.5
		12	0.5-0.8	0.7-1.0	0.9-1.2	1.0-1.6	1.2-1.8	1.2-2.0
		14		0.5-0.7	0.7-0.8	0.9-1.4	0.9-1.2	1.5-1.8
		16			0.6-0.7	0.7-1.0	0.8-1.0	0.8-1.5
		18			0.4-0.6	0.6-0.8	0.65-0.9	0.65-0.9
		20				0.5-0.8	0.6-0.9	0.6-0.9
		22				0.4-0.5	0.5-0.8	0.5-0.8
		25					0.3-0.5	0.3-0.7
SS -201	1	18-25	20-27	24-30	30-35	32-40	45-55
		2	7.0-12	8.0-13	9.0-14	13-21	16-28	20-35
		3	1.8-2.5	3.0-5.0	4.0-6.5	6.0-10	7.0-15	15-24
		4	1.2-1.3	1.5-2.4	3.0-4.5	4.0-6.0	5.0-8.0	10-16.0
		5	0.6-0.7	0.7-1.3	1.8-2.5	3.0-5.0	4.0-5.5	8.0-12
		6		0.7-1.0	1.2-2.0	2.0-4.0	2.5-4.5	6.0-9.0
		8			0.7-1.0	1.5-2.0	1.6-3.0	4.0-5.0
		10				0.6-0.8	0.8-1.2	1.8-2.5
		12				0.4-0.6	0.5-0.8	1.2-1.8
		14					0.4-0.6	0.6-0.8
		20						0.4-0.6
Aluminum	1	6.0-10	10-20	15-25	25-38	35-40	45-55
		2	2.8-3.6	5.0-7.0	7.0-10	10-18	13-25	20-30
		3	0.7-1.5	2.0-4.0	4.0-6.0	6.5-8.0	7.0-13	13-18
		4		1.0-1.5	2.0-3.0	3.5-5.0	4.0-5.5	10-12.0
		5		0.7-1.0	1.2-1.8	2.5-3.5	3.0-4.5	5.0-8.0
		6			0.7-1.0	1.5-2.5	2.0-3.5	4.0-6.0
		8			0.6-0.8	0.7-1.0	0.9-1.6	2.0-3.0
		10				0.4-0.7	0.6-1.5	1.0-2.0
		12				0.3-0.45	0.4-0.6	0.8-1.4
		16					0.3-0.4	0.6-0.8
		20						0.5-0.7
Brass	1	6.0-10	8.0-13	10-16.0	20-35	25-30	45-55
		2	2.8-3.6	3.0-4.5	4.5-7.5	6.0-10	8.0-12	25-30
		3	0.5-1.0	1.5-2.5	2.5-4.0	4.0-6.0	5.0-6.5	12-18.0
		4		1.0-1.6	1.5-2.0	3.0-5.0	3.2-5.5	8.0-10
		5		0.5-0.7	0.9-1.2	1.5-2.0	2.0-3.0	4.5-6.0
		6			0.4-0.7	1.0-1.8	1.4-2.0	3.0-4.5
		8				0.5-0.7	0.7-10	1.6-2.2
		10					0.2-0.4	0.8-1.2
		12						0.2-0.4
