Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
1900*1000*1500(mm)
-
Weight:
-
1000 KG
-
Certification:
-
CE
-
Screen Printer MAIN MOTOR:
-
SITI(Italy)
-
PLC:
-
Omron(Japan)
-
Screen Printer Switch:
-
Schneider(France)
-
printing colors:
-
1 color
-
Screen Printer opration:
-
full aoto
-
min printing diameter:
-
round bottle: 20 mm
-
Screen Printer Volum:
-
4.8
-
Application area:
-
package of cosmetic, lipstick, bottles
-
Main Parts:
-
1. MAIN MOTOR: SITI(Italy) ,3. SENSOR: Optex(Japan)
-
Free Fittings:
-
SILK SCREEN PLATE ,SQUEEGEE,
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
AC380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
1900*1000*1500(mm)
-
Weight:
-
1000 KG
-
Certification:
-
CE
-
Screen Printer MAIN MOTOR:
-
SITI(Italy)
-
PLC:
-
Omron(Japan)
-
Screen Printer Switch:
-
Schneider(France)
-
printing colors:
-
1 color
-
Screen Printer opration:
-
full aoto
-
min printing diameter:
-
round bottle: 20 mm
-
Screen Printer Volum:
-
4.8
-
Application area:
-
package of cosmetic, lipstick, bottles
-
Main Parts:
-
1. MAIN MOTOR: SITI(Italy) ,3. SENSOR: Optex(Japan)
-
Free Fittings:
-
SILK SCREEN PLATE ,SQUEEGEE,
Products Description

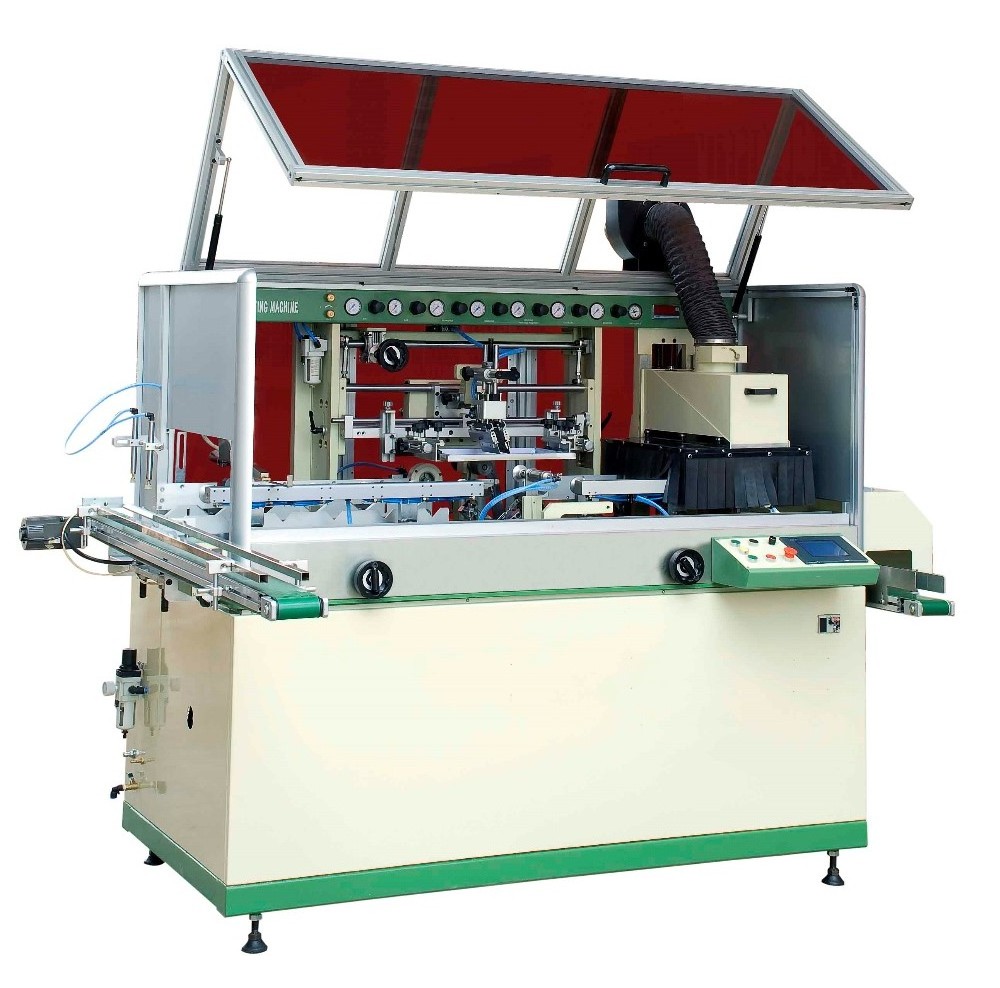

Automatic 4-colour cylinder UV Silk Screen Printer
LCB-120UV-4This auto printing press system is specially used for printing different patterns on the objects with round shape or oval shape. As it is made up of several individual units to form a printing chain, it can be used for the purpose of one-color printing. The materials to be printed can be plastic, glass, ceramics, metal, etc
Product Paramenters
|
Model No
|
LCB-120UV-1
|
max printing radius
|
oblate bottle :260 mm
|
|
Printing colors
|
1 color
|
oblate bottle width
|
20-100 mm
|
|
Product appearance
|
Round bottle / oblate bottle
|
oblate bottle thickness
|
20-80 mm
|
|
Operation
|
Full Auto
|
Max Printing speed
|
4000-5000Pcs/Hr
|
|
min printing diameter
|
round bottle: 20 mm
|
Power
|
380V
|
|
max printing diameter
|
round bottle :100 mm
|
Weight
|
1050（kg）
|
|
min printing radius
|
oblate bottle :25 mm
|
Dimensions
|
L:1900×W:1000×H:150（mm）
|
Core Selling Point
|
MAIN MOTOR
|
SITI(Italy)
|
(CONTACTOR)
|
(Schneider)(France)
|
|
PLC
|
Omron(Japan)
|
(RELAY)
|
(Idec)(Japan)
|
|
SENSOR
|
Optex(Japan)
|
(INVERTER)
|
Omron(Japan)
|
|
TOUCH SCREEN
|
Proface(Japan)
|
(UV CURING)
|
(Primarc brand uv lamp ) Britain
|
|
Switch
|
Schneider(France)
|
(PNEUMATIC)
|
Festo(Germany)
|
Advantages
1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and falt workpieces;
2.Coupled with auto workpiece feeding and loading system;
3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;
4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;
6.High quality UV curing system adopted to ensure fast ink drying and color registration;
7.High printing speed that up to 4000pcs/hr will bring you with high productivity;
8.Conveniently and easily fixture adjustment and change that save your valuable time;
9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system..
2.Coupled with auto workpiece feeding and loading system;
3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;
4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;
6.High quality UV curing system adopted to ensure fast ink drying and color registration;
7.High printing speed that up to 4000pcs/hr will bring you with high productivity;
8.Conveniently and easily fixture adjustment and change that save your valuable time;
9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system..
