Quick Details
-
Brand Name:
-
HBYB
-
Model Number:
-
HBLD
-
Display:
-
OLED/LCD Digital Display
-
Medium:
-
Various conductive liquid
-
Caliber range:
-
DN3-DN3000 (DN3\DN4 is flange clamping type)
-
Lining type:
-
Polychloroprene rubber, PTFE, F46, PFA
-
Electrode type:
-
316L, titanium, stainless steel tungsten carbide
-
Accuracy:
-
±0.5% can be customized ±0.3%±0.2%
-
Pressure range:
-
0.6~42Mpa; (high pressure needs to be customized)
-
Temperature resistance:
-
-25~80℃;
-
Protection level:
-
Sensor IP65\IP67\IP68 (optional), converter IP65
-
Power supply:
-
85~250V, 45~63Hz, 20VDC --- 36VDC
Quick Details
-
Type:
-
electromagnetic flowmeter, industrial flow meter, Water Treatment Flow Meter, Conductive Liquid Flow Meters, magnetic flowmeter
-
Warranty:
-
18 mouth
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HBYB
-
Model Number:
-
HBLD
-
Display:
-
OLED/LCD Digital Display
-
Medium:
-
Various conductive liquid
-
Caliber range:
-
DN3-DN3000 (DN3\DN4 is flange clamping type)
-
Lining type:
-
Polychloroprene rubber, PTFE, F46, PFA
-
Electrode type:
-
316L, titanium, stainless steel tungsten carbide
-
Accuracy:
-
±0.5% can be customized ±0.3%±0.2%
-
Pressure range:
-
0.6~42Mpa; (high pressure needs to be customized)
-
Temperature resistance:
-
-25~80℃;
-
Protection level:
-
Sensor IP65\IP67\IP68 (optional), converter IP65
-
Power supply:
-
85~250V, 45~63Hz, 20VDC --- 36VDC
Product details

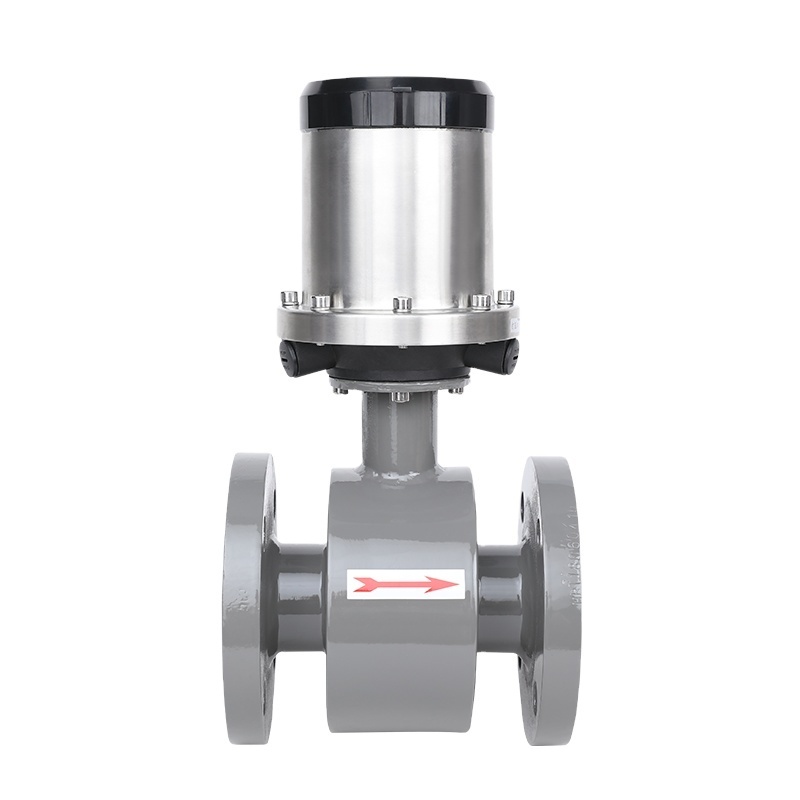

The
HBLD electromagnetic water meter
is powered by an internal battery. It is suitable for situations where the on-site grid cannot reach and the grid is difficult to lay. It is especially suitable for monitoring, calculation and settlement of tap water supply system. With GPRS and CDMA wireless data transmission function; with RS485modbus protocol (external power supply or battery power supply) communication function to achieve remote data acquisition and management. It adopts stainless steel casing and infrared remote control to achieve IP68 sealing protection design, which can be used in wet places such as underground.
|
Technical parameter
|
|
|
|
Applicable scenarios
|
Areas that cannot be reached by the field grid, suitable for tap water supply systems
|
|
|
Caliber range
|
DN3-DN300
|
|
|
Lining type
|
Polychloroprene rubber, PTFE
|
|
|
Electrode type
|
316L, HastelloyB, HastelloyC, titanium, tantalum, platinum-iridium alloy, stainless steel tungsten carbide
|
|
|
Pressure range
|
0.6-4.0Mpa
|
|
|
Temperature resistance
|
-25~80℃
|
|
|
Accuracy
|
±0.5%1.5%
|
|
|
Protection level
|
IP68
|
|
|
Output type
|
Pulse (for supporting external power supply), 4-20mA (only supporting external power supply), RS485 interface, GPRS wireless
remote transmission (full Netcom SIM card) |
|
|
Power supply
|
3.6V battery power supply
|
|
|
Sensor material
|
Carbon steel, 304 (customized), 316 (customized)
|
|
|
Structure form
|
Integrated type, split type
|
|
Product information
Why Choose Us
Each of our instruments has been factory calibration and 100% inspection, and there is a perfect after-sales system.Different products have different packages because of their different sizes.We will ensure that each flow meter, safe and complete to your hands.
Product packaging
Certifications
About us
Our company has
CE
,
ISO
certification,
E
xplosion-proof
certification, more than 30 real-type new patents.
The company’s main products are electromagnetic flowmeters, vortex flowmeters, ultrasonic flowmeters, turbine flowmeters, open channel flowmeters, orifice flowmeters, metal rotor flowmeters, thermal gas mass flowmeters, etc., which can meet the needs of different occasions.And can design and produce special customized products according to user requirements.
FAQ
Can I buy the sample separately?
A: Of course, many customers will choose to buy a sample to check the quality before placing a large order.
Can you customize the products according to the customer's needs?
A: Yes, dear, we can customize the specifications you want according to your requirements.
Is there a discount for purchasing products?
A: Yes, if you buy a large number of products, we will give you a partial discount.You can follow our store, if there is an event,you can receive the notice in the first time.
How long is your warranty?
A: The electromagnetic flowmeter has a free warranty within 18 months, and other products have a free warranty within one year.
Can you customize the products according to the customer's needs?
A: Yes, dear, we can customize the specifications you want according to your requirements.
Is there a discount for purchasing products?
A: Yes, if you buy a large number of products, we will give you a partial discount.You can follow our store, if there is an event,you can receive the notice in the first time.
How long is your warranty?
A: The electromagnetic flowmeter has a free warranty within 18 months, and other products have a free warranty within one year.
What is the delivery time, please?
A: Under normal circumstances, standard products are in stock and the delivery time is 1-2 days.Bulk purchase or customized productsplease consult customer service.
A: Under normal circumstances, standard products are in stock and the delivery time is 1-2 days.Bulk purchase or customized productsplease consult customer service.
