Quick Details
-
Function:
-
Dimming(optional)
-
Control:
-
IoT smart control(Optional)
-
IP Rating:
-
IP66
-
Lens material:
-
PC
-
Glass cover:
-
WHITE tempered glass 5mm thick
-
Heat sink:
-
Die-casting pure aluminum
Quick Details
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
Project Installation
-
Place of Origin:
-
Guangdong, China
-
Function:
-
Dimming(optional)
-
Control:
-
IoT smart control(Optional)
-
IP Rating:
-
IP66
-
Lens material:
-
PC
-
Glass cover:
-
WHITE tempered glass 5mm thick
-
Heat sink:
-
Die-casting pure aluminum
Products Description

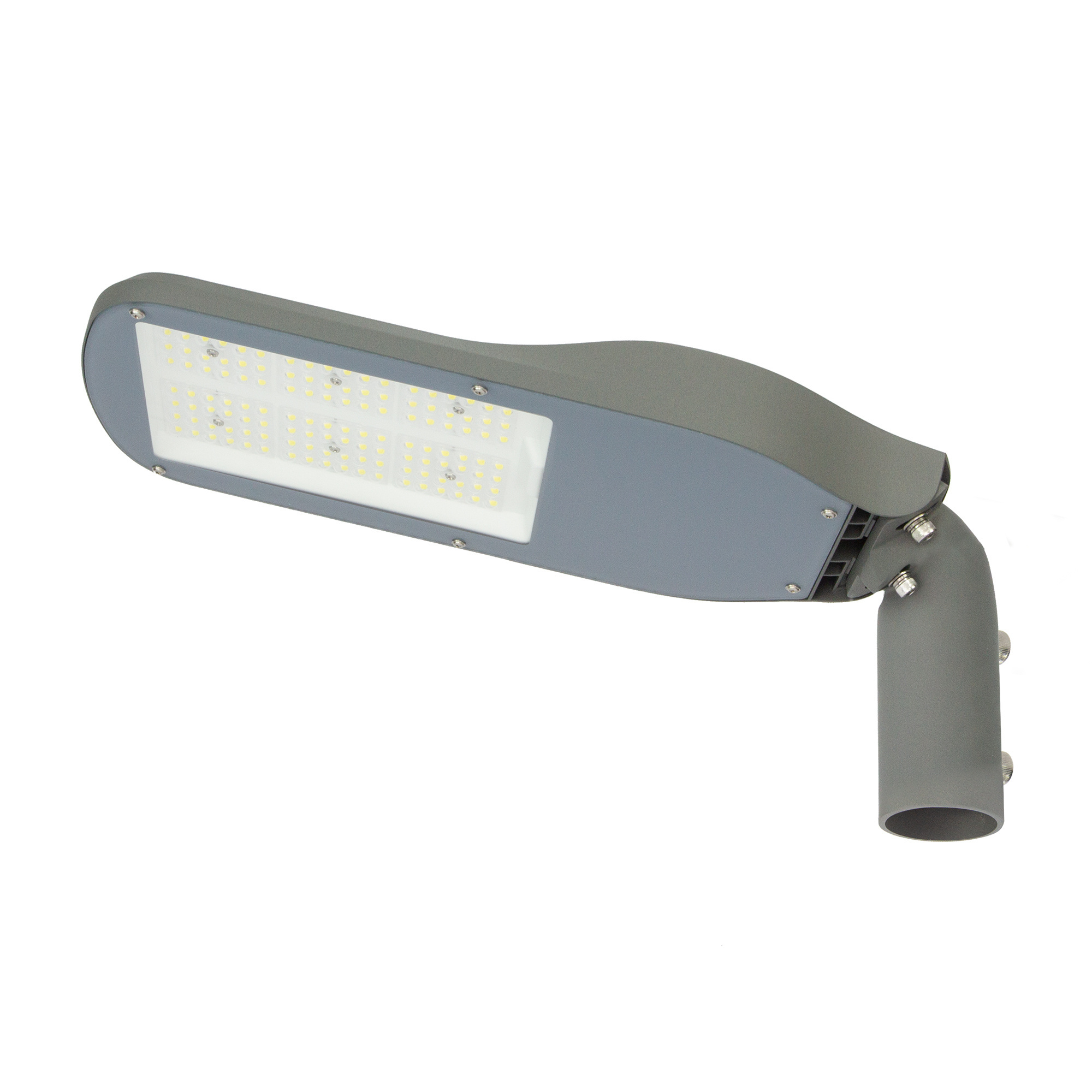

LED PACKING LOT LIGHT
Datasheet - 50W/80W/100
W/150w
-NEW design LED Street Light
|
A:Technical Parameter
|
|
|
|
|||
|
Item No.
|
STL-50W-N08
|
STL-100W-N08
|
STL-150W-N08
|
|||
|
Led Source
|
Cree SMD3030
|
Cree SMD3030
|
Cree SMD3030
|
|||
|
LED Quantity
|
96pcs
|
192pcs
|
288pcs
|
|||
|
LED Luminous Efficiency
|
145lm/W
|
130lm/W
|
130lm/W
|
|||
|
Color Temperature(CCT)
|
2700-6500K
|
2700-6500K
|
2700-6500K
|
|||
|
Beam Angle
|
80x150°(TYPE III)
|
80x150°(TYPE III)
|
80x150°(TYPE III)
|
|||
|
Color Rendering Index(CRI)
|
Ra>80
|
Ra>80
|
Ra>80
|
|||
|
IP Rating
|
66
|
65
|
65
|
|||
|
Lens
|
PC lens
|
PC lens
|
PC lens
|
|||
|
Heat Radiator
|
Die-casting Aluminum
|
Die-casting Aluminum
|
Die-casting Aluminum
|
|||
|
Warranty
|
5 years
|
5 years
|
5 years
|
|||
|
LED Emitter Life
|
70,000 Hours
|
70,000 Hours
|
70,000 Hours
|
|||
|
Certificate
|
CE RoHS, TUV
|
CE RoHS, TUV
|
CE RoHS, TUV
|
|||
|
B: Mechanical Specification
|
|
|
|
|||
|
LED Driver Brand
|
Meanwell driver
|
Meanwell driver
|
Meanwell driver
|
|||
|
Power
|
50W
|
100W
|
150W
|
|||
|
Input voltage:
|
AC100-240V, 50/60HZ
|
AC100-240V, 50/60HZ
|
AC100-240V, 50/60HZ
|
|||
|
Power Factor(PF)
|
>0.90
|
>0.90
|
>0.90
|
|||
|
Driver efffiency (%)
|
>92%
|
>92%
|
>92%
|
|||
|
Total Harmonic Distortion(THD)
|
<10%
|
<10%
|
<10%
|
|||
|
Dimmable
|
Dimmable or non-dimmable is option
|
Dimmable or non-dimmable is option
|
Dimmable or non-dimmable is option
|
|||
|
C: Environmental Specification
|
|
|
|
|||
|
Temperature Range Operating
|
-10℃ to 50℃
|
-10℃ to 50℃
|
-10℃ to 50℃
|
|||
|
Humidity Range Operating
|
10% to 70%RH
|
10% to 70%RH
|
10% to 70%RH
|
|||
Product Analysis
Technical Parameters
One of the questions that people ask when installing LED lights is related to spacing
* Spacing depends on how high upon you go.
* The higher up you go, the bigger the fixture you can use and the farther spaced out you will be.
* Be careful because going higher can leave a lot of light up high and you can run into code issues and wind problems.
* Every setup is different and requires different planning.
* Retail and sport Court requires brighter, where lightly used back lots require less.
One of the questions that people ask when installing LED lights is related to spacing
Project Case
Application:
Parking Lot lighting, outdoor lighting, wall lighting area street lighting, Bridge, Square Lighting,Car Park, Highway, Stadium, Highway Lighting, Petrol Station, lighting parks, parking lots, campuses, walkways, side roads,etc
Bulk Order
Factory Profile
PENEL OPTOELECTRONICS TECHNOLOGY CO.,LTD
Shenzhen Penel Optoelectronics Technology Co.,Ltd founded in 2006. Through 15 years of hard work and continuous innovation, now we have been a leading high-tech enterprise in Shenzhen LED lighting industry, specialized in R&D, producing and marketing high quality outdoor LED lighting products.
Our products line include : Solar and AC led Street lights, High power LED Sporst lights, LED High Bay lights, All of the products are TUV GS, CB, CE & ROHS approved,With 5 years warranty, 100% of our products are exported. With 15 years’experiences of working with direct overseas markets, what we supply are not only the best cost-effective products with competitive ratio of quality price than our competitors, but also professional services.
