Quick Details
-
Dimension(L*W*H):
-
Base on models
-
Motor Power (kW):
-
4
-
Model Number:
-
MNP-60
-
Weight (T):
-
180
-
Product name:
-
high speed pneumatic hole punch machine
-
Application:
-
Metal Sheet Stamping
-
Speed:
-
80-120times/Min
-
presssure:
-
30-130t
-
Weight (KG):
-
220
-
Power(W):
-
Base on models
-
Nominal Force (kN):
-
3000
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MONA
-
Voltage:
-
110V 220v 380V, 220v 380v or 110V
-
Dimension(L*W*H):
-
Base on models
-
Motor Power (kW):
-
4
-
Model Number:
-
MNP-60
-
Weight (T):
-
180
-
Product name:
-
high speed pneumatic hole punch machine
-
Application:
-
Metal Sheet Stamping
-
Speed:
-
80-120times/Min
-
presssure:
-
30-130t
-
Weight (KG):
-
220
-
Power(W):
-
Base on models
-
Nominal Force (kN):
-
3000
Best Selling Portable Stainless Steel Pipe Angle Punching Machine 45 90 Degree Hydraulic Square Tube Notching Machine
Features
of
Steel Pipe Punching Machine :
1
. Change mold easily, We can customize it as per request.
2
. The hole shape can be customized as per the request.
3
. Hydrau
lic
-cylinder control ,more stable
4
. Punching holes are smooth and no burrs and no deformation.
5
. Half Hole or Completely hole are available
Machine can do 1-5 heads ,You can purchase according yourself need
Technical details of Steel Pipe Punching Machine :
|
Model |
MN-125 |
MN-100 |
MN-80 |
|
Hydraulic cylinder dia |
125mm |
100mm |
80mm |
|
Hydraulic oil tank |
2 pc |
2 pc |
2 pc |
|
Pressure |
About 30T |
About 20t |
About 12t |
|
Motor power |
7.5 kw |
5.5kw |
4kw |
|
Voltage |
380v 50hz 3phase |
380v 50hz 3phase |
380v 50hz 3phase |
|
Working speed |
30-60times/min |
30-60times/min |
30-60times/min |
|
Punching hole size |
As require |
As require |
As require |
|
Punching thickness(for steel) |
0.5-4mm |
0.5-3mm |
0.5-2 mm |
|
Punching tube length |
3-6m |
3-6m |
3-6m |
|
Tube support frame length |
3m |
3m |
3m |
|
Punching molds with machine |
2pcs |
2pcs |
2pcs |

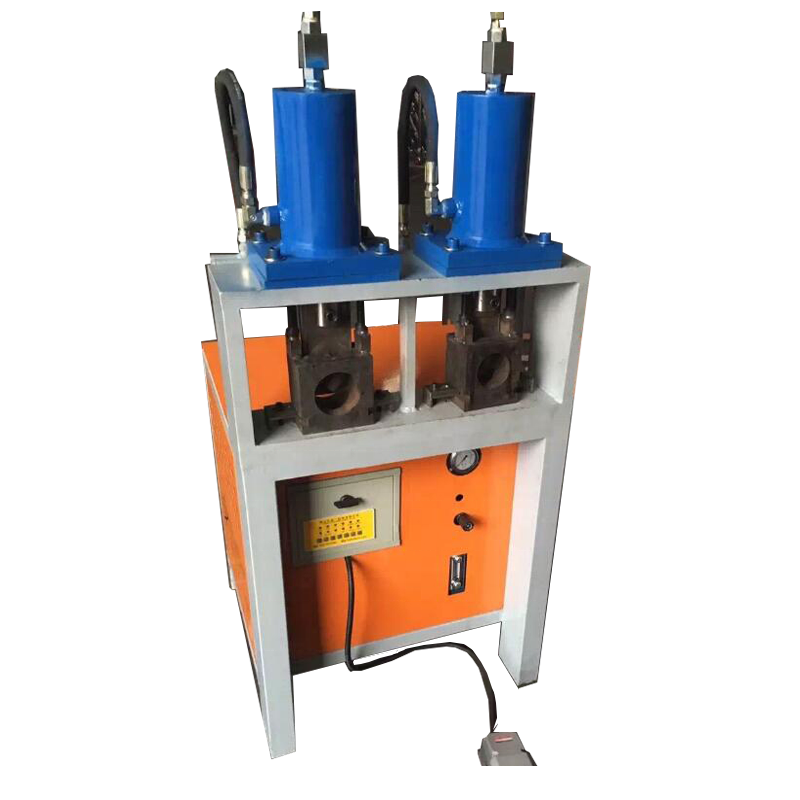

Picture of Steel Pipe hole Punching Machine
