Ask Technology Company limited was established in 2009 , manufacturer for Audio and Video products ODM/OBM/OEM with concentrate on R&D ,solution, design ,QC and producing teams . And insist on high quality level A/V products for market remand. Specially for HDMI switcher, splitter, converter, matrix, extender, wireless, KVM, video Capture, decoder, audio extractor, digital audio and SDI , DVI, VGA, AV, RF, Type-C,SPDIF and so on A/V interface devices , high-end professional displays include hook face displays and V-COB LED screen . With 3 R&D teams , more than 100 engineers with over 10 years experience for A/V technology hardware, software, PE and custom-development.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
HDMI Switch
-
Input:
-
HDMI-A
-
Resolution:
-
7680x4320
-
Output:
-
HDMI-A
-
HDMI version:
-
HDMI 2.1
-
Power supply:
-
5V1A
-
Video format:
-
4K@120 4:4:4 12bit/8K@60 4:2:0 12bit
-
HDR:
-
HDR/HDR10/HDR10+/Dolby Vision/HLG
-
Deep color:
-
8/10/12Bit@4K(4:4:4)/8K(4:2:0)
-
Audio format:
-
Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM etc.
Quick Details
-
Model Number:
-
HDSW0043M1
-
Brand Name:
-
ASK
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
HDMI Switch
-
Input:
-
HDMI-A
-
Resolution:
-
7680x4320
-
Output:
-
HDMI-A
-
HDMI version:
-
HDMI 2.1
-
Power supply:
-
5V1A
-
Video format:
-
4K@120 4:4:4 12bit/8K@60 4:2:0 12bit
-
HDR:
-
HDR/HDR10/HDR10+/Dolby Vision/HLG
-
Deep color:
-
8/10/12Bit@4K(4:4:4)/8K(4:2:0)
-
Audio format:
-
Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM etc.
Product Description
Product Description
|
Model No.
|
HDSW0043M1
|
|
Model name
|

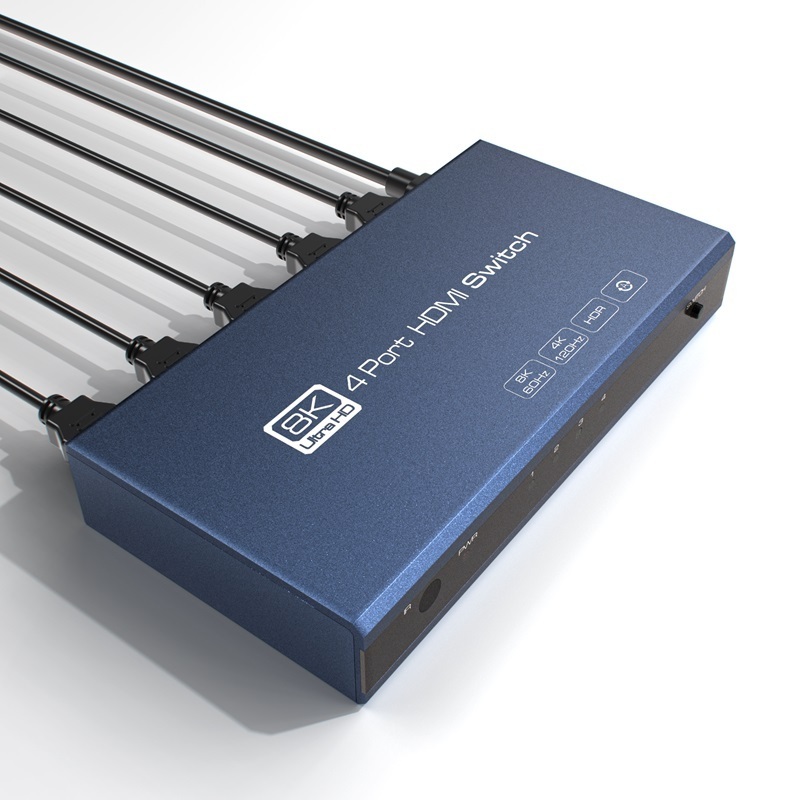

4 Port 8K HDMI Switch
|
|
Input ports
|
HDMI x4, TYPE-C(DC5V) x1
|
|
Output ports
|
HDMI x1
|
|
Video format
|
Up to 4K@120 4:4:4 12bit/8K@60 4:2:0 12bit
Backward compatibility |
|
HDR
|
Supports HDR/HDR10/HDR10+/Dol by Vision/HLG
|
|
Deep color
|
8/10/12Bit@4K(4:4:4)/8K(4:2:0)
|
|
Audio format
|
Dolby HD/DTS HD/Dol by Atoms/Dol by AC3/DTS/LPCM Etc.
|
|
Transmission bandwidth
|
1.2GHz Max.
|
|
Transmission rate
|
48Gbps Max.
|
|
IR distance
|
≤5m
|
|
Input cable length
|
4320P≤3m,2160P≤8m,1080P ≤10m(AWG 26 Standard cable)
|
|
Output cable length
|
4320P≤3m,2160P≤8m,1080P ≤10m(AWG 26 Standard cable)
|
|
Power adapter specification
|
AC 100~240V/ USB 5V/1A
|
|
Max working current
|
500mA
|
|
Working temperature range
|
-5 ~ +40℃
|
|
Working humidity range
|
5 to 85%RH（No Condensation）
|
|
Storage temperature
|
-15 to 55℃
|
|
Storage humidity
|
5 ~95%RH(No Condensation)
|
|
Size
|
135*70.4*21.2(mm)
|
|
Weight
|
145g
|
|
Accessories
|
Manual, Remote, Power Adaptor, USBA-Type C power cable
|
Packing&Shipping
1.Manual x1
2.Remote x1
3.USB Cable x1
4.IR Receiver cable x1
