- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LXBKZ
-
Model Number:
-
Y2-15000D
-
Max. Working Pressure:
-
240V
-
IP level:
-
IP54
-
Product Features:
-
customziable
-
supplier country:
-
China
-
Product cetifications:
-
CE
-
Application:
-
Water pump
-
customzied:
-
ODM/OEM
-
Supplier features:
-
≤1h response time
-
Product features:
-
Customizable
-
Categories:
-
Pumps
-
Pressure:
-
Low pressure
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LXBKZ
-
Model Number:
-
Y2-15000D
-
Max. Working Pressure:
-
240V
-
IP level:
-
IP54
-
Product Features:
-
customziable
-
supplier country:
-
China
-
Product cetifications:
-
CE
-
Application:
-
Water pump
-
customzied:
-
ODM/OEM
-
Supplier features:
-
≤1h response time
-
Product features:
-
Customizable
-
Categories:
-
Pumps
-
Pressure:
-
Low pressure
|
Type
|
Y2
|
|
|
|
|
|
|||||
|
Model
|
Y2-4KW
|
Y2-7.5KW
|
Y2-11KW
|
Y2-15KW
|
Y2-18.5KW
|
Y2-22KW
|
|||||
|
Rated Power
|
0.75-4KW
|
1.1-7.5KW
|
1.1-11KW
|
2.2-15KW
|
3-18.5KW
|
4-22KW
|
|||||
|
Rated Input Voltage
|
single Phase 220-240VAC/ 3 Phase ,380-415VAC,50/60Hz
|
|
|
|
|
|
|||||
|
Qty.of Pump
|
Double pump
|
|
|
|
|
|
|||||
|
Display
|
LCD display
|
|
|
|
|
|
|||||
|
Signal Transmission Mode
|
Level float switch
Level probe Pressure switch Electric contact pressure gauge |
|
|
|
|
|
|||||
|
Max.Control Distance
|
≤2000m without strong electric and electromagnetic fields
|
|
|
|
|
|
|||||
|
Over/under-voltage Range
|
176-264V/304V-456V(adjustable)
|
|
|
|
|
|
|||||
|
Protections
|
1, dry run alarm and protection
2, overload alarm and protection
3, no load alarm and protection
4, water shortage alarm and protection
5, over-voltage alarm and protection
6, under-voltage alarm and protection
7, pump stalled alarm and protection
8, anti-seizing alarm and protection
9, short circuit alarm and protection
10, phase loss alarm and protection
|
|
|
|
|
|
|||||
|
Main Functions
|

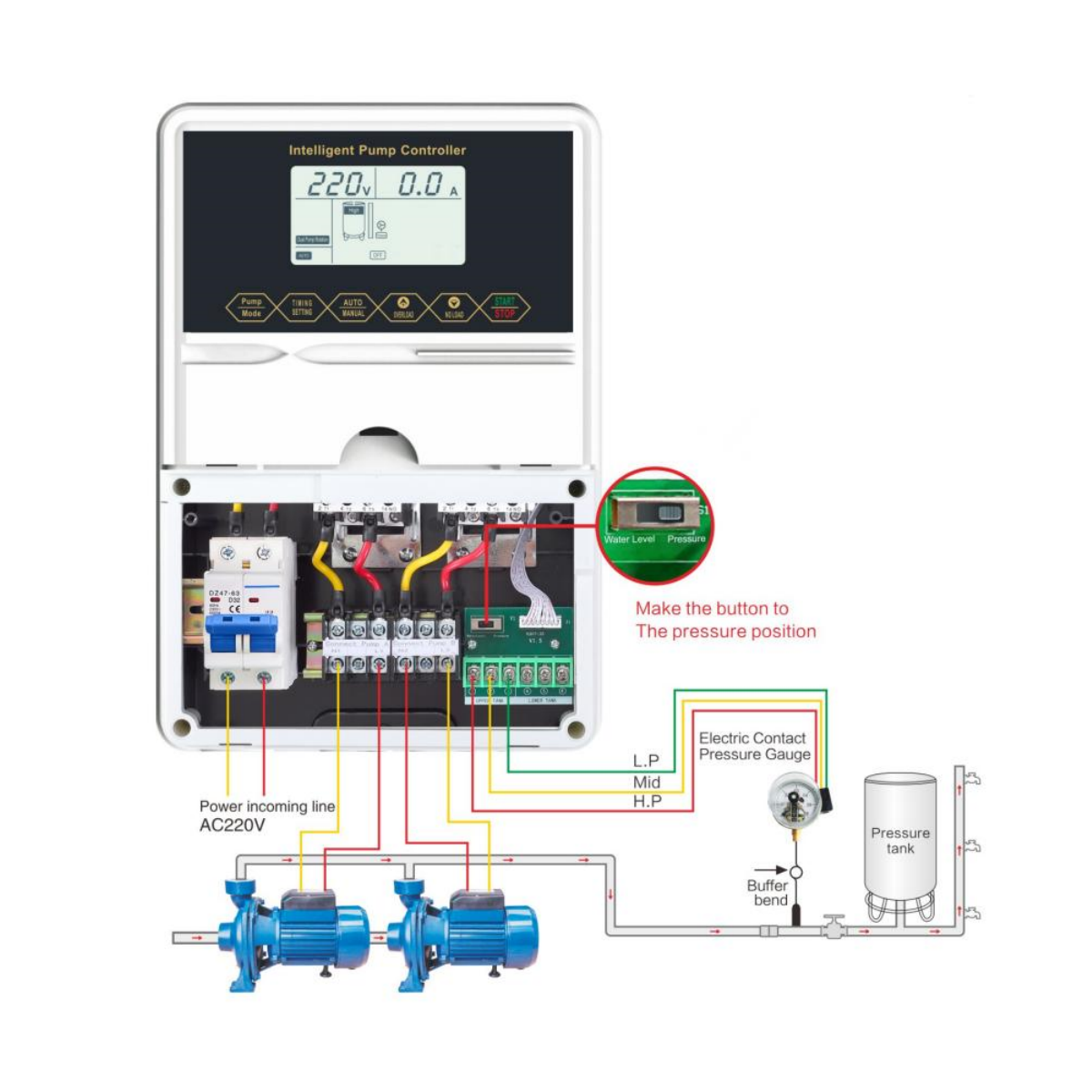

1,Water level control: level probes or float switch
2,Pressure control: electric contact pressure gauge or pressure switch
3,User interface: a user-friendly interface for configuring settings, monitoring operation, and accessing diagnostic information.
4,Operation mode: automatic/manual starts and stops
5,Fault indication: failure record, latest 10 pump failure reasons display, audio/light alarms.
6,Anti-rust protection, long-term non-use of the pump,15 days to start once for 3 seconds. 7,Setting protection current for motor overload/no-load,no-load delay restart time adjustable. 8,Automatic restart when voltage comes to normal rating after over- voltage/under-voltage protection.
9,Automatic restart after power failure recovery.
10,Automatic re-starting pump from dry running,restart time range 0- 720 minutes adjustable. 11,Restore factory setting: press both“Overload”and“NO-Load” for 3 seconds.
|
|
|
|
|
|
|||||
|
Working temperature
Working humidity
Degree of protection
|
-25ºC-- +55ºC
20%--90%RH, no drips concreted IP54 |
|
|
|
|
|
|||||
Q:Can you provide OEM or ODM ?
A:Yes,we can make the orders according to your detailed request.
Q:What is your delivery time?
A:For sample order,it takes 1-3 days.Bulky order depends on the quantity.Our monthly ability is 15000pcs,and daily 500pcs.Custom
panels depend.
Q:What is your warranty?
A:We warrant that panels and equipment will be free from defects in material,workmanship,and title.Each panel is backed by a full
1-year warranty.
Q:How about your quality control?
A: Each panel,whether pre-configured or custom,is 100% factory tested and simulated under load conditions to exceed our customer's
Quality and Functionality requirements.
Q:What are your payment methods acceptable?
A:T/T and L/C
A:Yes,we can make the orders according to your detailed request.
Q:What is your delivery time?
A:For sample order,it takes 1-3 days.Bulky order depends on the quantity.Our monthly ability is 15000pcs,and daily 500pcs.Custom
panels depend.
Q:What is your warranty?
A:We warrant that panels and equipment will be free from defects in material,workmanship,and title.Each panel is backed by a full
1-year warranty.
Q:How about your quality control?
A: Each panel,whether pre-configured or custom,is 100% factory tested and simulated under load conditions to exceed our customer's
Quality and Functionality requirements.
Q:What are your payment methods acceptable?
A:T/T and L/C
