Quick Details
-
Model Number:
-
BR-XQ281
-
Type::
-
Digital
-
Frequency::
-
1GHZ
-
Power Supply::
-
DC 5V/1000mA
-
High Definition::
-
Yes
-
OS::
-
Win XP/Vista/WIN7/WI8
-
Style::
-
RTL2832U+ R820T
-
Condition::
-
Brand-New
-
Product Name:
-

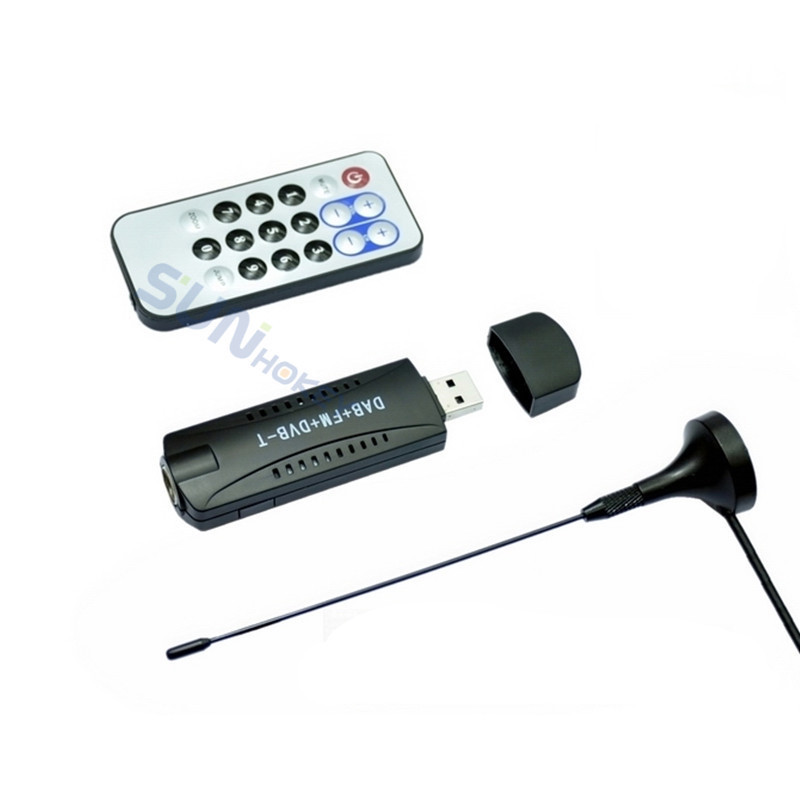

USB DVB-T+RTL-SDR Receiver RTL2832U+ R820T Tuner MCX Input DVB-T
-
Support SDR::
-
Yes
-
Product number:
-
T64
Quick Details
-
Support Resolution:
-
1920 x 1080
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
N
-
Model Number:
-
BR-XQ281
-
Type::
-
Digital
-
Frequency::
-
1GHZ
-
Power Supply::
-
DC 5V/1000mA
-
High Definition::
-
Yes
-
OS::
-
Win XP/Vista/WIN7/WI8
-
Style::
-
RTL2832U+ R820T
-
Condition::
-
Brand-New
-
Product Name:
-
USB DVB-T+RTL-SDR Receiver RTL2832U+ R820T Tuner MCX Input DVB-T
-
Support SDR::
-
Yes
-
Product number:
-
T64
Product Details
|
Top 10 dvb-t Receiver USB DVB-T+RTL-SDR Receiver RTL2832U+ R820T Tuner MCX Input DVB-T
|
|
|
|
|
||||
1.RTL2832+R820T Instead of E4000
2.MPEG4 H.264
3.FM,DAB,DAB+ SDR
4.OS:Win XP/Vista/WIN7/WI8
Description:
Sticks with this combination (RTL2832 + R820T) are relatively new on the market. The main difference to all the other supported tuners so far is that it uses a Low-IF (3.57 MHz) architecture instead of Zero-IF. That means the tuner is only connected to the In-Phase ADC input, and the internal down converter of the RTL2832 is generating the
complex samples. This has the benefit of having no DC offset spike in the middle of the spectrum.
The driver originally had a frequency limitation of 40 MHz to 900 MHz, but tests showed that the PLL of my stick can achieve lock up to 1766 MHz, and indeed both ADS-B at 1090 MHz and L-Band DAB at 1463 MHz, as well as GMR at 1556 MHz can be received just fine with the R820T.Also, the PLL could lock again at 1850 MHz to 1860 MHz, and the reception of a GSM 1800 BTS at 1854 MHz worked as well.
Some initial comparisons [1] between the E4000 and R820T seem to hint at the R820T being a bit more sensitive, especially visible in the Tetra screenshots.
