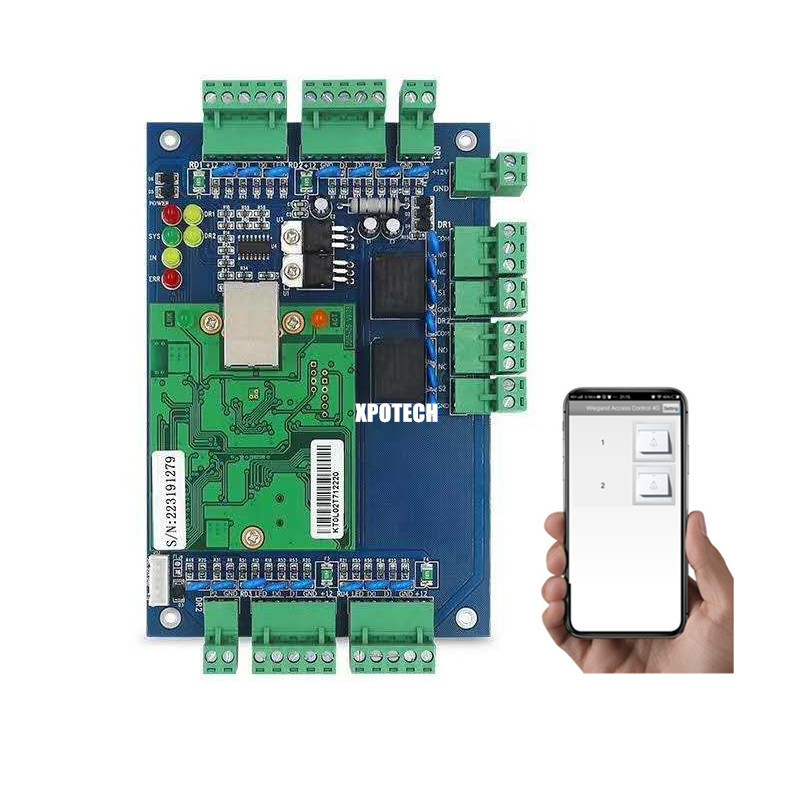

High Security Access Control Panel Two Door Two Ways TCP/IP 40000 User Biometric Door Access Control Board

High Security Access Control Panel Two Door Two Ways TCP/IP 40000 User Biometric Door Access Control Board

FOB Reference Price: Get Latest Price

≥1 Pieces

US $38

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: No brand

Model Number:: 2002.web

Capacity:: 20000 cards,100000 offline memory

Work with:: 4 readers; 2 for enter, 2 for exit

Communication:: TCP/IP; built-in IE Browser optional

Access Control Board:: 1/2/4 doors

Benefits:: intergrating access control, attendance, patrol and cost meal

Wiegand:: 26&34

1 Doors:: 2 reader, 1 exit button

4 Doors:: 4 reader, 4 exit button

Quick Details

Special Features:: Other

Customized support:: OEM, ODM

Place of Origin:: Guangdong, China

Brand Name:: No brand

Model Number:: 2002.web

Capacity:: 20000 cards,100000 offline memory

Work with:: 4 readers; 2 for enter, 2 for exit

Communication:: TCP/IP; built-in IE Browser optional

Access Control Board:: 1/2/4 doors

Benefits:: intergrating access control, attendance, patrol and cost meal

Wiegand:: 26&34

1 Doors:: 2 reader, 1 exit button

4 Doors:: 4 reader, 4 exit button

Recommend Products

K14 Time Attendance

1000 Fingerprint capacity

80000 logs capacity

TCP/IP and USB

Built-in battery optional

K40 Time Attendance

2000 Fingerprint capacity

80000 logs capacity

TCP/IP and USB

Built-in battery & Lock interface

UF100 Plus Time Attendance

300 face, 1000 fingerprint

100000 logs capacity

TCP/IP, USB and WIFI

Face and Fingerprint

2001.web

TCP/IP Communication

1 door connect with 2 readers

Professional standalone software

Cloud based software

4G smart app remotely unlock

2002.web

TCP/IP Communication

2 door connect with 4 readers
Professional standalone software
Cloud based software
4G smart app remotely unlock

2004.web

TCP/IP Communication

4 door connect with 4 readers
Professional standalone software
Cloud based software
4G smart app remotely unlock

Product Paramenters

Parameter	Single Door Panel	Multi Door (2) Panel	Multi Door (4) Panel
Model	2001.web	2002.web	2004.web
Commnunication	TCP/IP	TCP/IP	TCP/IP
Description	Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button	Control 2 door, get in and out door by swiping card, of get in by swiping card and get out door by button	Control 4 door, get in the door by swiping card, and get out door by button
Dimension	160*106mm	160*106mm	160*106mm
Size of Case	27322865mm
Power Supply	12VDC 4-7A
Work Current	Less than 100mA
Reader protocol	Wiegand 26/34 card reader
Qty of Readers	2 pcs	4 pcs	4 pcs
Door Controlled	1 door	2 door	4 door
Power Supply	DC 12V/3A
Temperature	0°C - 45°C / 32°F - 113°F
Humidity	20% - 80%
Default function	Standalone software for TCP/IP
Optional Function	Cloud software (need to do port forwarding); 4G app release door lock

Access Control Board Software

Access Control Board Web-based Software

Access Control Board Smart Phone APP

XPOTECH Fingerprint Scanner

Xpo Technology is a leading supplier in the field of access control and security products.

Our range of products extends from single door access control to integrated systems capable of managing hundreds of doors and
alarm monitoring points at worldwide locations.

Beside, we accept OEM and ODM as per clients' requirements too. If you got any requirements, please feel free to contact us.
