- Product Details
- {{item.text}}
Quick Details
-

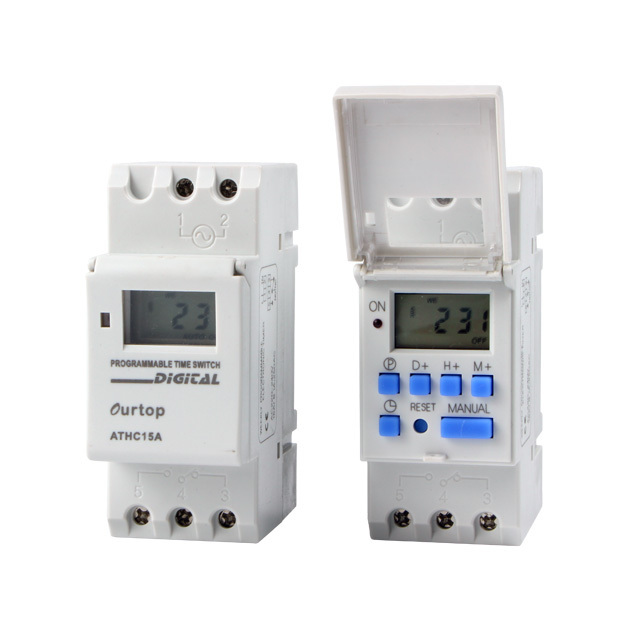

Model Number:
-
AHC15A, AHTC15A
-
Max. Current:
-
16A
-
Rated Voltage:
-
AC 220V 50*60HZ 85% ~110%
-
Certifications:
-
CE/CB/IEC
-
Switch Power:
-
16A 250Vac / 20A 250Vac
-
Display:
-
lcd
-
On/Off Operation:
-
18 on &18 off, 18 times pluse
-
Min.Setting Time:
-
1 Min
-
Warranty:
-
2 Years
-
Packing:
-
100pcs
-
Battery:
-
CR2450 Inside
-
Certification:
-
CE/CB
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
aultop
-
Model Number:
-
AHC15A, AHTC15A
-
Max. Current:
-
16A
-
Rated Voltage:
-
AC 220V 50*60HZ 85% ~110%
-
Certifications:
-
CE/CB/IEC
-
Switch Power:
-
16A 250Vac / 20A 250Vac
-
Display:
-
lcd
-
On/Off Operation:
-
18 on &18 off, 18 times pluse
-
Min.Setting Time:
-
1 Min
-
Warranty:
-
2 Years
-
Packing:
-
100pcs
-
Battery:
-
CR2450 Inside
-
Certification:
-
CE/CB
Specification:
.The products according to the time set by the user,automatically turn on and turn off the varity of electrical equipment.Control object can lights,light boxes,neon signs,production equipment,agriculture,aquaculture,warehouse exhaust dehumidifier automatically preheat optimal control products,such as radio and television equipment.Lithium battery inside,high-precision,industrial-grade chips,strong anti-jamming
Function
Technical Data
Operating voltage 220 V AC
Frequency 50-60 Hz
Width 2 modules
Installation type DIN-rail
Power reserve 3 years
Max. switching capacity at 250 V AC, cos φ = 1 16 A
Max. switching capacity at 250 V AC, cos φ = 0.6 10 A
Incandescent/halogen lamps 2300 W
Pulse 1 sec-59 min 59 sec
Switching contact 1 changeover switch
Display LCD
Set numbers for ON/OFF 18 ON/OFF
Power consumption 5VA (MAX)
Power reserve 3 years (lithium battery )
Ambient temperature –10 °C … +40 °C
About us
1, Yueqing Aultop Electrical Co.,Ltd is located in,Liushi,Yueqing,Zhejiang, China,We are a high-tech enterrises soecialized in ,including designing, developing, producing and
Selling. Ourmain products are: relay, timer, electric meter, counter, Ac contactor, temperature Controller, elevator push button switch and etc.
Equipment & technology
2, We have an outstanding professional technical team, with independent innovation and Development capabilities. Serve the customer in every detail is key to our services
Service
3, quality first, honesty and trustworthiness,Seeking for greater prefection ,pioneering and innovation.24hrs online service, any problem we can solve at first time
Services
1.You inquiry related to our products or prices , we will be replied in 24hours
2.We have staffs trained and experienced to answer all your enquires in fluent english
3. we have unique design and some our current models offered for you
4. Protection of you sales area ,ideas of design and all your private information
Trade terms
1.Payment : T/T ,paypal,western union
2.Sample lead time: 1-3 days
3.Production lead time: 3-5 days
4.Shipping freight are delivered under your requests
5.Shipping port :Shanghai/Ningbo,mainland china
6.Discounts are offered based on order quantities
7.Service :ODM/OEM Available
8.Packaging: 12pcs/box
9.Shipping: By Express(EMS,DHL,UPS,ARAMEX), By Air or By Sea
AH3-NB
1): Time setting range: 1S-10M, 3S-30M,6S-60M,1M-10H,3M-30H
2) Rated Voltage : DC 12-24V, AC 12-380V
3) Dimensions: 50 x 40x 57.5mm
4) Certificate: CE
ATRM04 Relay
1) Coil Voltage : DC 6-220V, AC 6-380V
2) Dimensions: 27.5x 21 x 34mm
3) Contact Capacity: 5A 250VAC DC28V
4) Pole:4P
5) Certificate: CE
ATRP17TG Phase Control Relay
1) Application: for 3phase supply
2)Max Switch Voltage :250VDC/250VAC
3) Output Contact : 1C/O
4)Output Current : 5A
5) Certificate: CE
SYS-1 Hour Meter
1) Time setting range: 0 - 99,999.99 hours
2) Voltage: AC12 - 36V, DC 10 - 80V
3) Dimensions: 54 x 32 x 58.5mm
4) Certificate: CE
PR384 Fan Relay
1) : Type: ATR-2
2) Coil Voltage : DC 6-120V, AC 6-227V
3) Dimensions: 47x 32 x 28.5mm
4) Certificate: CE
Round hour meter
1) Type : TH-1
2) Time Seting Range : 0-99999.99 hours
3) Voltage : DC10-60V, AC 220-240V
4) Certificate: CE
