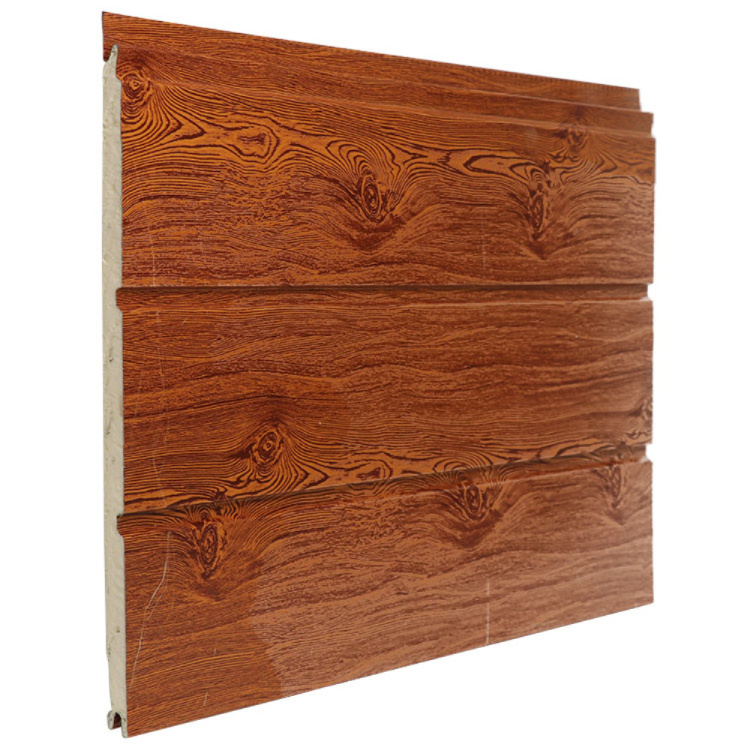

Facade wood texture insulation wall cladding siding panels exterior home decor
Facade wood texture insulation wall cladding siding panels exterior home decor
Facade wood texture insulation wall cladding siding panels exterior home decor
Facade wood texture insulation wall cladding siding panels exterior home decor
Facade wood texture insulation wall cladding siding panels exterior home decor
Facade wood texture insulation wall cladding siding panels exterior home decor
Facade wood texture insulation wall cladding siding panels exterior home decor
Facade wood texture insulation wall cladding siding panels exterior home decor

Facade wood texture insulation wall cladding siding panels exterior home decor

FOB Reference Price: Get Latest Price
≥100 Square meters
US $6.8
≥1000 Square meters
US $6.5
≥3000 Square meters
US $5.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
China
Thickness:
16 mm
Raw Material:
High rigid polyurethane
Density:
40 kg/m3
Width:
383 MM
Steel Thickness:
0.27MM
Fireproof grade:
B1 B2
MOQ:
200 square meters
Delivery Time:
7-10 working days
Keywords:
PU sandwich panels siding
Certificate:
CE

Quick Details

Project Solution Capability:
Others
Application:
Exterior
Design Style:
Modern
Place of Origin:
China
Thickness:
16 mm
Raw Material:
High rigid polyurethane
Density:
40 kg/m3
Width:
383 MM
Steel Thickness:
0.27MM
Fireproof grade:
B1 B2
MOQ:
200 square meters
Delivery Time:
7-10 working days
Keywords:
PU sandwich panels siding
Certificate:
CE

Product Description
Good Performance
1 The product is cost-effective. It is discovered through test that thermal insulation performance of rigid polyurethane decreases down to under 3% after using it for 25 years under high temperature. So it can maintain long- term stable effect thermal insulation and energy-saving.After special treatment, the metal carving board has good flame retardant performance and safety.
2 The boards can avoid the structural damage caused by the circulation of rain, snow, freezing, thawing, dry and wet, eliminate the worry of water seepage on the wall after installation, and effectively avoid the mildew phenomenon on the indoor wall. Even in severe cold areas, the stable performance of the external wall insulation and decoration integrated board has no worry of water seepage and deformation, which extends the service life of the building.

3 Metal carving board has stable chemical and physical structure, will not decompose mildew, no radiation, no pollution, green environmental protection. The board can also be flexibly disassembled and reused for installation on other buildings, and the construction leftover materials can also be recycled, which greatly reduces the construction waste in the construction process. It is a high-quality and high-performance environmental protection product. The external wall heat preservation and decoration integrated board is easy to clean, durable and has long service life.
Specification
Thickness
16/20 mm
Fire resistance level
B1/B2
Width
383mm
Size toleranc
-/+2mm
Length
2000mm~6000mm
Tensile bond strength
0.17MPA
Surface steel
Galvalume,C type
Wind load value
9 KPA
Steel alloy composition
Aluminum 55%,Zinc 43.5%,Silicon 1.5%,ect.
Package
10 pieces/carton,8pieces/carton
Core material
Polyurethane
OEM
Logo and panel size
Closed cell rate
90%~95%
Container load
20GP:1600sqm(panel length 1.82m)
40HC/HQ : 3800 sqm (panel length:3.8m).
40NOR:3300 sqm(panel length:3.8m).
Panel weight
3.5-3.7 kg/m 2
Port
QINGDAO
Heat conductivity
0.018-0.024 w/m*k(in theory)
Brand
DIBAIER
Water absorption
≤3 %
Oxygen index
≥26 %

Color And Design

Over 100 types color and design for choice ,brick , stone , wood, embossed texture etc .
Design
Company Introduction

Jinan Dibaier Environmental Protection Material Co.,Ltd

J inan Dibaier Environmental Protection Materials Co., Ltd. is a high-tech enterprise combining with design,development, manufacturing, sales and service of metal carving board, activity room and booth.New wall materials of Dibaier have features like good thermal insulation, sound insulation and noise reduction effects,light weight, high strength, simple construction and corrosion resistance. The appearance is elegant and reusable.And its service life is long and the weather resistance is good. The company has strong technical strength,standardized management and perfect technology. With professional technology, leading equipment, scientific management and excellent service,we have won wide acclaim from all walks of life. Our products can be used in the following fields: high-rise buildings, modern villas, light steel workshops,mobile homes, European and American boxes, renovation of exterior walls of old buildings, movement of scenic spots and permanent houses, environmentally friendly public toilets, various beautiful and energy-saving buildings.
Packing&Shipping
Packing:Carton packaging + Packaging belt
About 3.5-3.7kg per square meter.
(1) Board cabinet size:
It is generally required to be 5.8m for 20 foot cabinet,
According to the needs of customers, the total length of 40 foot cabinet is less than 11.8 meters
(2) Loading information:
The size and specification of the 20 foot small cabinet is about 5.898 × 2.352 × 2.385m, and the assembly level is about 1300 (excluding spare parts space)
40 large cabinet (high cabinet): 12.032 × 2.352 × 2.69M, about 3300 flat (excluding spare parts space)
