Quick Details
-
Brand Name:
-
Xukang
-
Model Number:
-
F1
-
Product Name:
-
vortex flow meter
-
Inside nominal diameter (mm):
-
25,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in)
-
Accuracy:
-
±1%R,±1.5%R
-
Power supply:
-
24VDC/ 3.6V battery
-
Output:
-
4-20mA /RS485/ Pulse
Quick Details
-
Type:
-
Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xukang
-
Model Number:
-
F1
-
Product Name:
-
vortex flow meter
-
Inside nominal diameter (mm):
-
25,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in)
-
Accuracy:
-
±1%R,±1.5%R
-
Power supply:
-
24VDC/ 3.6V battery
-
Output:
-
4-20mA /RS485/ Pulse
Products Description

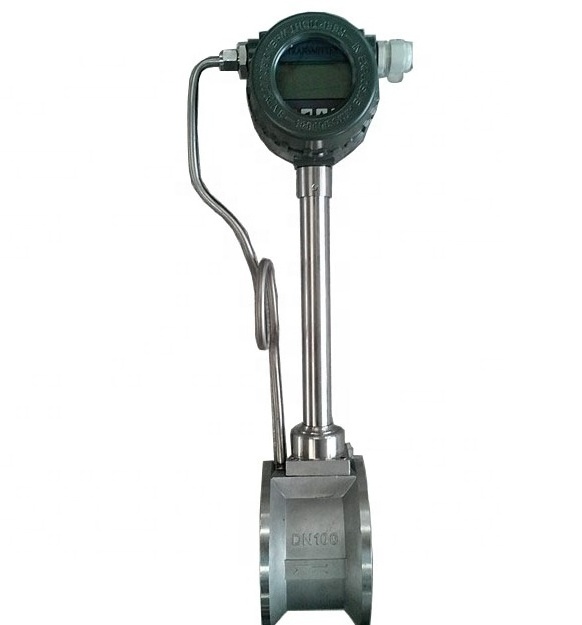

Propane biogas steam vortex air flow meter
LUGB series Vortex flow meters are designed for measuring the volume/mass flow of liquids, gases and steam based on Karman vortex principle.
Adopting advanced differential algorithm along with measurement of isolation, shielding and wave iltering, LUGB series vortex flow meters have the advantages of immunity on vibration and noise. Meanwhile, the liabilities of LUGB series vortex flow meters are well guaranteed by unique sensor packaging technology.
Main Features:
1、Lattice LCD display.
2、Easy operation.
3、Configure with temperature/pressure senor. For temperature sensors, Pt100 or Pt1000; For pressure sensor, gauge pressure sensor or absolute pressure sensor.
4、Multiple Outputs can be optional: Two-Wire 4-20mA, Three-Wire pulse and Three-Wire equivalent output.
5、Excellent nonlinearity correction function, greatly improve the appearance of linearity.
6、Spectral analysis, improve the ability of anti-interference and vibration resistance.
7、 A variety of measuring medium: vapor, liquid, gas and natural gas, etc.
8、Low power consumption, a dry cell can maintain at least 3 years.
9、Automatic switching ability of the working modes: Battery supply, Two-Wire and Three-Wire.
10、Self-checking function: the rich self-checking information make easy maintenance and debugging.
11、Independent password setup, the parameters setup, total flow reset and calibration can be set with different- level passwords, it is convenient for management.
12、Three-Wire system supports RS485 communication.
13、The display unit can be selected and user-defined.
Product Paramenters
|
Measuring system
|
|
|
|
Application range
|
( 1 ) Gas; ( 2 ) Liquid; ( 3 ) Steam
|
|
|
Measured Value
|
|
|
|
Primary measured value
|
Flow Rate
|
|
|
Secondary measured value
|
Volume flow; ( Pressure and Temperature is available for model with compensation )
|
|
|
Design
|
|
|
|
Features
|
( 1 ) Gas: ( 2 ) Liquid; ( 3 ) Steam
|
|
|
Modular construction
|
The measurement system consists of a flow sensor and a signal converter. It is available as compact and as separate version.
|
|
|
Compact version converter
|
N Type: Pulse output without local display
|
|
|
|
A Type : 4-20MA Output without local display
|
|
|
|
B Type : Local Display; Lithium Battery Power; No Output
|
|
|
|
C Type : Local Display: 24V DC Power; 4-20MA Output;
Optional Function:
( 1 ) Backup Power Supply: Lithium Battery
( 2 ) Modbus RS485
( 3 ) Pulse Output
|
|
|
Connection
|
Flange : DN15-DN300
|
|
|
|
Wafer : DN15-DN300
|
|
|
Measurement Ratio
|
Standard-10 : 1
|
|
|
Reference conditions
|
Flow conditions similar to EN 29104
|
|
|
|
Medium: Water / Gas
|
|
|
|
Electrical conductivity: ≥ 300 μs / cm
|
|
|
|
Temperature: + 10 ~ +30℃ / + 50 ~ + 86℉
|
|
|
|
Inlet section: > 10 DN
|
|
|
|
Operating pressure: 1 bar / 14.5 psig
|
|
|
Flow Meter Accuracy
|
For Liquid: 1.0% of rate
|
|
|
|
For Gas and Steam: 1.5% of rate
|
|
|
Operating conditions
|
|
|
|
Temperature
|
|
|
|
Process temperature
|
T1 Level: -20 ~ + 70 ℃
|
|
|
|
T2 Level: -20 ~ + 250 ℃
|
|
|
|
T3 Level: -20 ~ + 350 ℃
|
|
|
Ambient temperature
( all versions )
|
Standard ( with aluminum converter housing ): -10 ~ + 55 ℃
|
|
|
Storage temperature
|
-20 ~ + 70 ℃
|
|
|
Pressure
|
|
|
|
EN 1092-1
|
DN200 ~ DN300: Pn10
|
|
|
|
DN100 ~ DN200: PN 16
|
|
|
|
DN15 ~ DN80: PN 25
|
|
|
|
Other pressures on request
|
|
|
ASME B16.5
|
1/2" ~ 8" : 150 Ib RF
|
|
|
|
Other pressures on request
|
|
|
JIS
|
1/2" ~ 8": 10K
|
|
|
|
Other pressures on request
|
|
|
Installation conditions
|
|
|
|
Installation
|
Take care that flow sensor is always fully filled
|
|
|
|
For detailed information see chapter "Cautionsfor Installation"
|
|
|
Flow direction
|
Forward
|
|
|
|
Arrow on flow sensor indicates flow direction
|
|
|
Inlet run
|
≥ 10DN
|
|
|
Outlet run
|
≥ 5DN
|
|
|
Materials
|
|
|
|
Sensor housing
|
SS304
|
|
|
|
Other materials on request
|
|
|
Flanges
|
SS304
|
|
|
|
Other materials on request
|
|
|
Converter Housing Outlet run
|
Standard: polyurethane coated die-cast aluminum
|
|
|
Process connections
|
|
|
|
Flange
|
|
|
|
EN 1092-1
|
DN15 ~ 300 in PN 6~25
|
|
|
ASME
|
1/2" ~ 12 " in 150 Ib RF
|
|
|
JIS
|
1/2" ~ 12 " in 10~ 20K
|
|
|
Design of gasket surface
|
RF
|
|
|
|
Other sizes or pressure ratings on request
|
|
|
Wafer
|
DN15 ~ DN300
|
|
