Quick Details
-
Screw Speed (rpm):
-
112 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Pansatec
-
Voltage:
-
380V 50Hz 3 phase or customized, 380V 50Hz
-
Dimension(L*W*H):
-
depend on machine width
-
Power (kW):
-
69
-
Weight:
-
6500 KG
-
Brand since:
-
1992
-
Motor:
-
SIEMENS or equivalent
-
Material:
-
LDPE/LLDPE
-
Length/diameter ratio:
-
32:1
-
Average lifespan:
-
10 years+
-
Automatic Grade:
-
Automatic
-
Raw material:
-
LDPE/LLDPE
-
Name:
-
Air bubble film machine
-
Marketing Type:
-
New Product
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
32:1
-
Screw diameter (mm):
-
90 mm
-
Screw Speed (rpm):
-
112 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Pansatec
-
Voltage:
-
380V 50Hz 3 phase or customized, 380V 50Hz
-
Dimension(L*W*H):
-
depend on machine width
-
Power (kW):
-
69
-
Weight:
-
6500 KG
-
Brand since:
-
1992
-
Motor:
-
SIEMENS or equivalent
-
Material:
-
LDPE/LLDPE
-
Length/diameter ratio:
-
32:1
-
Average lifespan:
-
10 years+
-
Automatic Grade:
-
Automatic
-
Raw material:
-
LDPE/LLDPE
-
Name:
-
Air bubble film machine
-
Marketing Type:
-
New Product

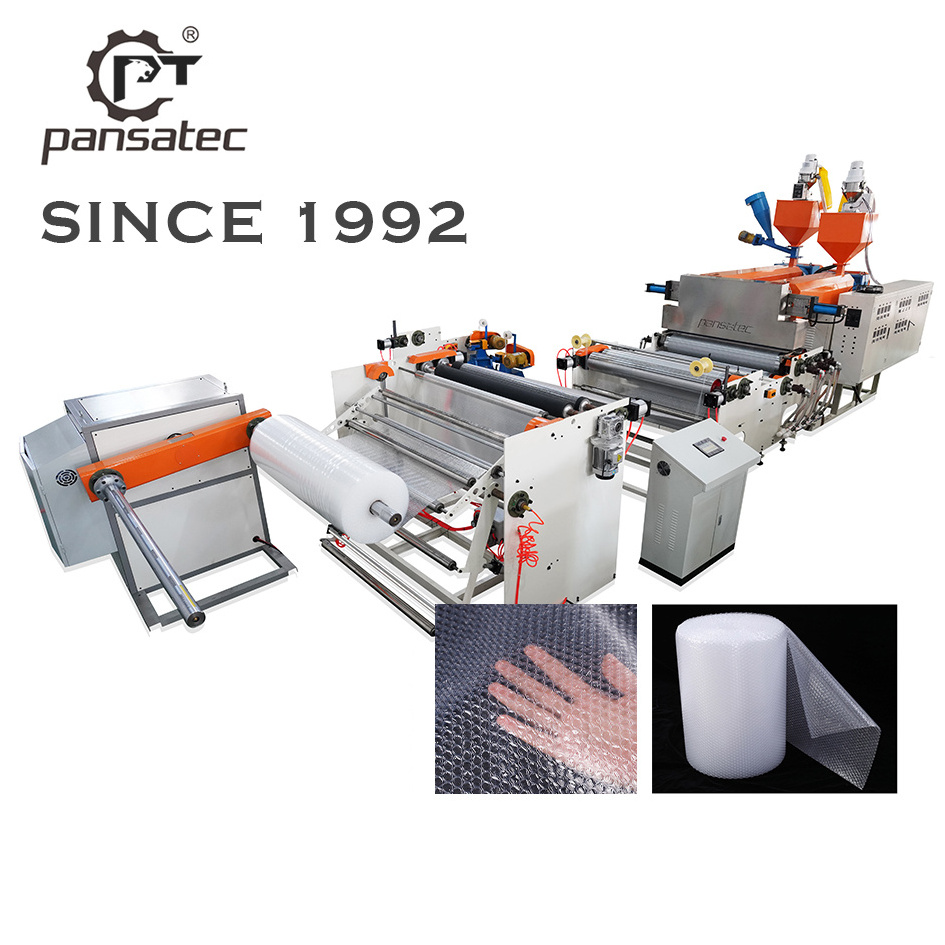

Two layers air bubble film machine
|
Complete film width (mm)
|
1000
|
1250
|
2000
|
2500
|
|
Material
|
LDPE/LLDPE
|
LDPE/LLDPE
|
LDPE/LLDPE
|
LDPE/LLDPE
|
|
Line speed (m/min)
|
15-35
|
15-35
|
15-35
|
15-35
|
|
Capacity (kg/hr)
|
50-100
|
60-120
|
70-160
|
85-200
|
|
Thickness (g/m²)
|
25-300
|
25-300
|
28-300
|
28-300
|
|
Main screw diameter (mm)
|
Φ65/Φ75/Φ80
|
Φ65/Φ75/Φ80
|
Φ90/Φ105/Φ110
|
Φ90/Φ105/Φ110
|
|
Heating power (kw)
|
40-65
|
43-68
|
54-80
|
66-94
|
|
Operation power (kw)
|
28-46
|
30-48
|
38-56
|
46-65
|
|
Dimension L×W×H (m)
|
7×2×3.3
|
7×2.3×3.3
|
8×3×3.3
|
8×3.5×3.3
|
|
Weight (kg)
|
5000
|
6000
|
7500
|
9400
|
Three layers air bubble film machine
|
Complete film width (mm)
|
1000
|
1250
|
2000
|
2500
|
|
Material
|
LDPE/LLDPE
|
LDPE/LLDPE
|
LDPE/LLDPE
|
LDPE/LLDPE
|
|
Line speed (m/min)
|
15-35
|
15-35
|
15-35
|
15-35
|
|
Capacity (kg/hr)
|
80-130
|
90-150
|
120-210
|
135-250
|
|
Thickness (g/m²)
|
25-300 (two layers)
38-300 (three layers)
|
25-300 (two layers)
38-300 (three layers)
|
28-300 (two layers)
42-300 (three layers)
|
28-300 (two layers)
42-300 (three layers) |
|
Main screw diameter (mm)
|
Φ65/Φ75/Φ80
|
Φ65/Φ75/Φ80
|
Φ80/Φ90/Φ105
|
Φ80/Φ90/Φ105
|
|
Sub screw diameter (mm)
|
Φ50/Φ65
|
Φ50/Φ65
|
Φ75/Φ80
|
Φ75/Φ
80
|
|
Heating power (kw)
|
60-85
|
65-90
|
102-128
|
103-131
|
|
Operation power (kw)
|
42-60
|
46-63
|
71-90
|
72-92
|
|
Dimension L×W×H (m)
|
10×6×3.3
|
10×6.3×3.3
|
11×9×3.3
|
11×10×3.3
|
|
Weight (kg)
|
7500
|
8000
|
11200
|
12500
|
Shipping and loading
Certificate
Factory
Pansatec, brand of Shanghai Shenxin Plastic Machinery Factory, is one plastic industry leading manufacturer in research, development, production, sales and service of air bubble film wrap machines, stretch film machines, air cushion packing material making machines, bag making machines, coreless rewinder and related auxiliary machines.
In the past three decades, we have helped our customers get successful in their local and online packing markets and created a strong long-term cooperation with them globally.
Now we keep providing quality machines with custom solutions and service for customers all over the world.
