Quick Details
-
Standard:
-
DOCSIS/EURODOCSIS 3.0/2.0/1.1/1.0
-
Input:
-
1*RF
-
Output:
-
4*RJ45 Ethernet (1000M)
-
Max US Number:
-
4
-
Max DS Number:
-
8
-
DS Freq. Range:
-
88-1002 MHz
-
US Freq. Range:
-
5 to 65MHz
-
Wireless Standard:
-
IEEE 802.11 b/g/n/ac
-
Max No. of SSID:
-
8
-
Product name:
-
EURODOCSIS 3.0 Cable Modem
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIBSYS
-
Model Number:
-
CG314
-
Standard:
-
DOCSIS/EURODOCSIS 3.0/2.0/1.1/1.0
-
Input:
-
1*RF
-
Output:
-
4*RJ45 Ethernet (1000M)
-
Max US Number:
-
4
-
Max DS Number:
-
8
-
DS Freq. Range:
-
88-1002 MHz
-
US Freq. Range:
-
5 to 65MHz
-
Wireless Standard:
-
IEEE 802.11 b/g/n/ac
-
Max No. of SSID:
-
8
-
Product name:
-
EURODOCSIS 3.0 Cable Modem

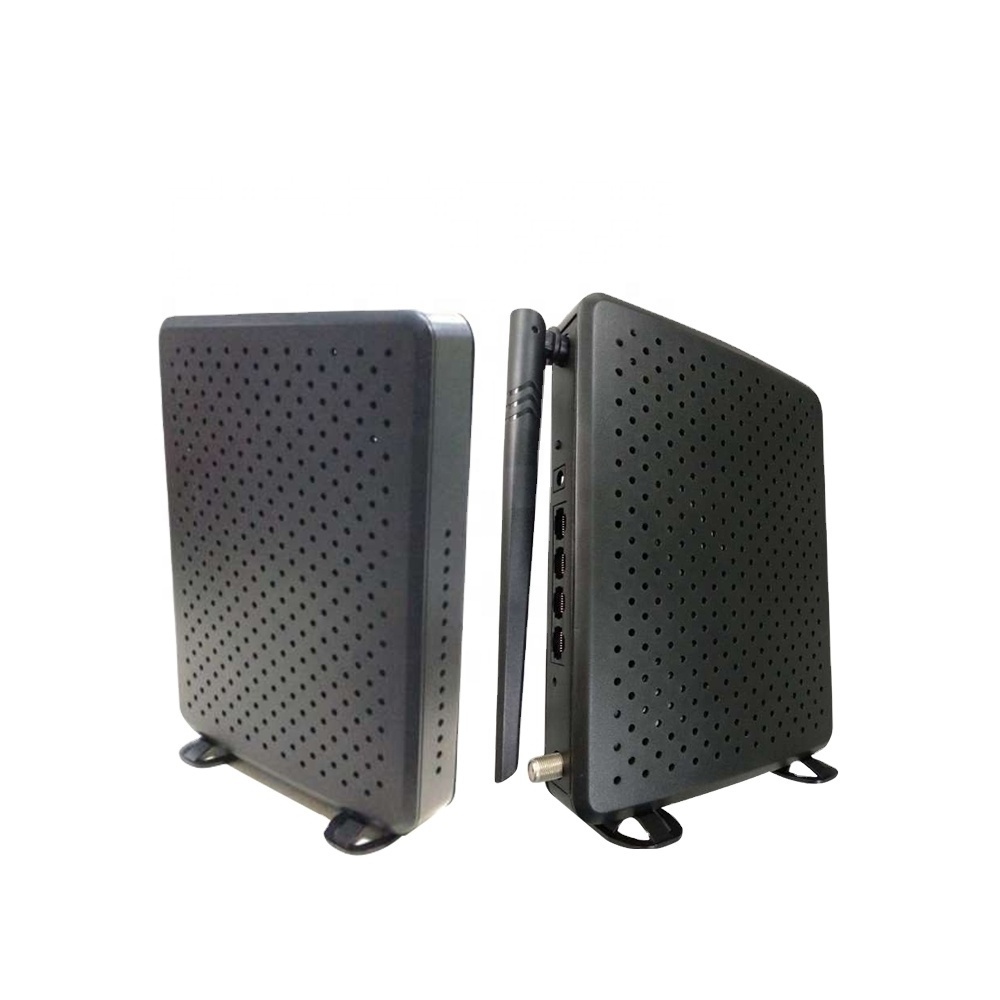

2.4G wifi DOCSIS EURODOCSIS 3.0 Cable Modem mini cmts designed with 3.0 8*4 channel bonding technology
DOCSIS system include CMTS (Headend cable network ) and CM (user end). The main function of DOCSIS Cable Modem system is transparently transmitting IP packets between the front end and the user end.
The series are designed with state-of-the-art DOCSIS/EuroDOCSIS 3.0 8*4 channel bonding technology, as well as backward compatible to all existing DOCSIS 2.0/1.1/1.0 head-end equipment under Multiple Service Operator networks. DIBSYS cable modem provides a cost-effective solution which delivers high-speed and bi-directional data services.
The series product cover from low-end two/four Giga Ethernet port model to high-end with integrated optional Wi-Fi feature, DIBSYS offer a one-stop solution to satisfy customers all kinds of demands. It not only play as cable modem feature, some models with built in Wi-Fi Router function are even capable to work as Residential Gateway in your home or small office and offer excellent bandwidth to all your Internet-capable devices.
Features
◆DOCSIS/EURODOCSIS 3.0 Standard Compliant, compatible with Euro Docsis2.0/1.0/1.1 standard;
◆Broadcom 33838M as main chipset;
◆BPI/BPI+ supported
◆Software upgrade by HFC network;
◆Support connected up to 128 CPE devices;
◆Supports up to 8 downstream and 4 upstream channels bonding;
◆Full Band Capture (FBC), DS frequency shouldn't have to be adjacent;
◆Hardware packet processing accelerator, low CPU consuming, high packet throughput;
◆High speed Internet via 2/4 Ports Giga Ethernet Connector with auto-negotiation MDIX functions;
◆SNMP v1/2C/3 and TR069
◆Supports baseline privacy encryption (BPI/BPI+)
◆High performance 802.11n 2.4GHz 2x2 optional
