Quick Details
-
Brand Name:
-
Filter
-
Product name:
-

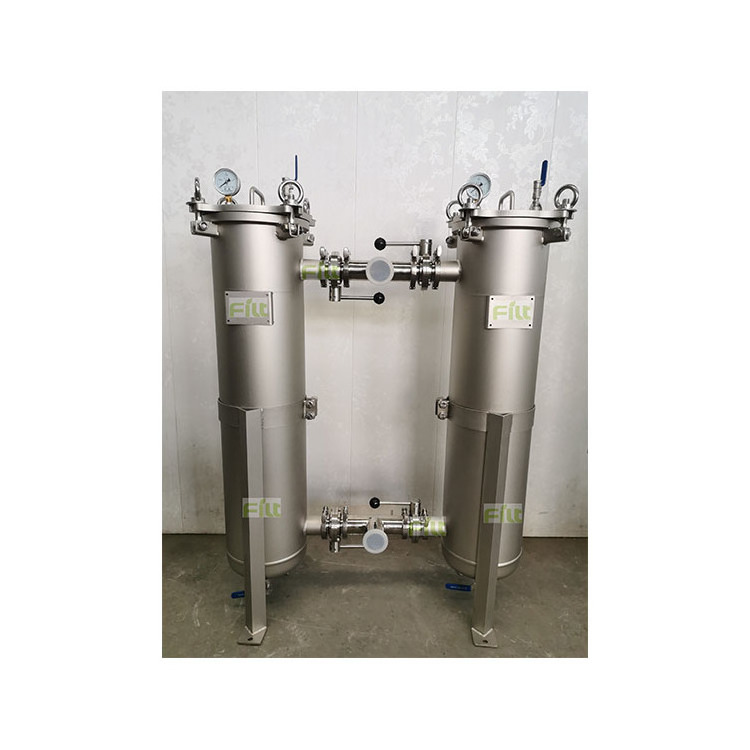

Double bag filter
-
Single Filtering Area:
-
1㎡
-
Filtration accuracy:
-
100μm
-
Connection:
-
K50
-
Design Temperature::
-
0-100℃
-
Standard Design Pressure::
-
1.0MPa
-
Housing Material:
-
SS304/SS316L/Duplex 2205/Duplex 2507
-
Filter Bag Material:
-
PP/PE
-
Bag Filter baskets:
-
SS304/SS316L
Quick Details
-
Weight (KG):
-
70
-
Core Components:
-
Quick opening device
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Filter
-
Product name:
-
Double bag filter
-
Single Filtering Area:
-
1㎡
-
Filtration accuracy:
-
100μm
-
Connection:
-
K50
-
Design Temperature::
-
0-100℃
-
Standard Design Pressure::
-
1.0MPa
-
Housing Material:
-
SS304/SS316L/Duplex 2205/Duplex 2507
-
Filter Bag Material:
-
PP/PE
-
Bag Filter baskets:
-
SS304/SS316L
Product Description
Specification
|
Model
|
Filter bag#
|
Filter bag Qty
|
Firltration area(m²)
|
Connection
|
Max. Flow (m³/h)
|
Working pressure(MPa)
|
|
FIL-BF-C1
|
1#
|
1
|
0.25
|
DN50
|
20
|
0.5-1.6
|
|
FIL-BF-C2
|
2#
|
1
|
0.5
|
DN50
|
40
|
0.5-1.6
|
|
FIL-BF-C4
|
4#
|
1
|
0.125
|
DN25
|
10
|
0.5-1.6
|
|
FIL-BF-2P2S
|
2#
|
2
|
1
|
DN50-DN100
|
70
|
0.5-1.6
|
|
FIL-BF-3P2S
|
2#
|
3
|
1.5
|
DN80-DN100
|
100
|
0.5-1.6
|
|
FIL-BF-4P2S
|
2#
|
4
|
2
|
DN80-DN150
|
140
|
0.5-1.6
|
|
FIL-BF-5P2S
|
2#
|
5
|
2.5
|
DN80-DN150
|
175
|
0.5-1.6
|
|
FIL-BF-6P2S
|
2#
|
6
|
3
|
DN80-DN150
|
210
|
0.5-1.6
|
|
FIL-BF-7P2S
|
2#
|
7
|
3.5
|
DN80-DN150
|
245
|
0.5-1.6
|
|
FIL-BF-8P2S
|
2#
|
8
|
4
|
DN100-DN200
|
280
|
0.5-1.6
|
|
FIL-BF-10P2S
|
2#
|
10
|
5
|
DN150-DN200
|
350
|
0.5-1.6
|
|
FIL-BF-12P2S
|
2#
|
12
|
6
|
DN150-DN250
|
420
|
0.5-1.6
|
|
FIL-BF-14P2S
|
2#
|
14
|
7
|
DN200-DN250
|
490
|
0.5-1.6
|
|
FIL-BF-16P2S
|
2#
|
16
|
8
|
DN200-DN300
|
560
|
0.5-1.6
|
|
FIL-BF-18P2S
|
2#
|
18
|
9
|
DN250-DN350
|
630
|
0.5-1.6
|
|
FIL-BF-20P2S
|
2#
|
20
|
10
|
DN250-DN400
|
700
|
0.5-1.6
|
|
FIL-BF-22P2S
|
2#
|
22
|
11
|
DN300-DN450
|
770
|
0.5-1.6
|
|
FIL-BF-24P2S
|
2#
|
24
|
12
|
DN350-DN450
|
840
|
0.5-1.6
|
