Quick Details
-
connector standard:
-
type 2 to type 2
-
Protection rank:
-
IP55
-
cable color:
-
black
-
Rated Current:
-
16/32A
-
Insulation resistance:
-
> 1000M ohm (DC 500V)
-
Withstand voltage:
-
2000V
-
Operating temperature:
-
-30℃ to 50℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HJ-EV-XCE1-03
-
Brand Name:
-
Hongju
-
connector standard:
-
type 2 to type 2
-
Protection rank:
-
IP55
-
cable color:
-
black
-
Rated Current:
-
16/32A
-
Insulation resistance:
-
> 1000M ohm (DC 500V)
-
Withstand voltage:
-
2000V
-
Operating temperature:
-
-30℃ to 50℃
Product Description
Fast Type 2 Ev Charger Cable 16a 32a 5m IEC61296-2 Type 2 to Type 2 Ev Charging Cable
Product features: Integrated external mold.
Excellent waterproof and dustproof performance
Cable specification: [AC220V-7KW] 3x6mm2+1x0.5mm2, TPU OD: 13.5mm
[AC380-480V-11KW]5x2.5mm2+1x0.5mm2, TPU OD: 13.5mm
[AC380-480V-22KW]5x6mm2+1x0.5mm2, TPU OD: 16.8mm
Mechanical life: No-load plug in / pull out > 10,000 times
Product dimensions: EV plug - 210x69x62mm
Case material: Thermoplastic(flame retardant grade UL94-0)
Protection rank: IP65
Type 2 plug+5m cable or custom cable length and color
EN Standard Strong Patience.
The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.
TPU Cable.
Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.
Climate Friendly Stronger & Anti-aging.
The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
Specification
|
Protection rank
|
IP55
|
|
Fire retardant level
|
94 V-0
|
|
Rated Current
|
16A / 32A
|
|
Rated voltage
|
250V / 480V~
|
|
Insulation resistance
|
> 1000M ohm (DC 500V)
|
|
Terminal temperature rise
|
<50K
|
|
Withstand voltage
|
2000V
|
|
Contact resistance
|
0.5m ohm Max
|
|
Coupled insertion force
|
0.5m ohm Max
|
|
Coupled insertion force
|
>45N <80N
|
|
Operating temperature
|
30℃to 50℃
|
|
Mechanical life
|
no load plug in / pull out > 10000 times
|
|
Impact of external force
|
qualify 1m drop or 2 Ton vehicle run over
|
|
Specification & Technicals
|

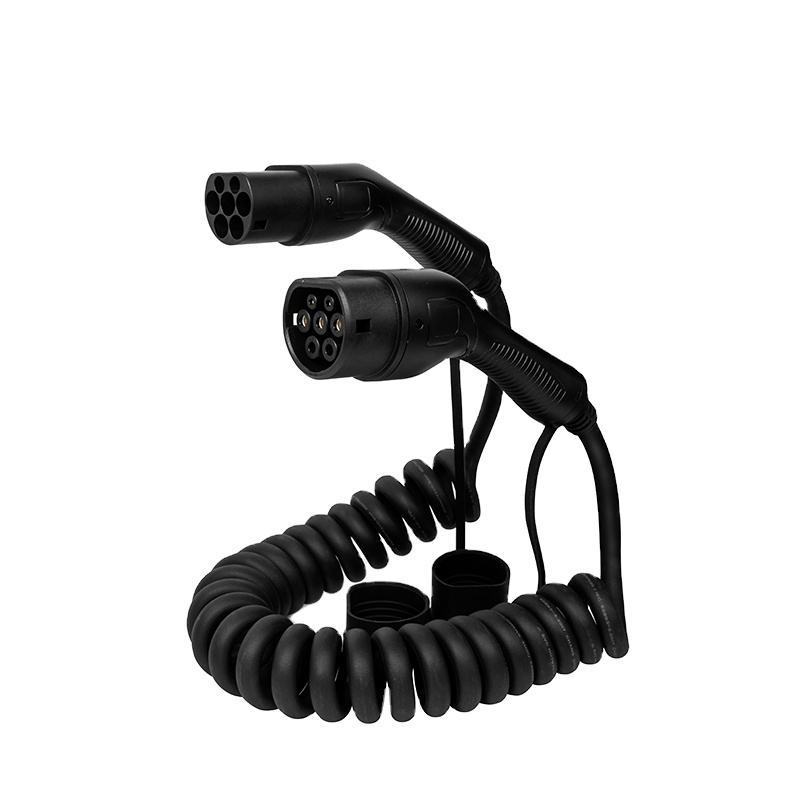

1, EV Charging cable, IEC 62196 type 2 to type 2
2, Dust proof cap made by silicon, attached on tail 3, Certs: RoHS 4, TPU jacket for lifetime protection 5, Model No. and Cable specification HJ-EV-XCE1-03-3: 1 phase, 16A, 250V, 3.5kW HJ-EV-XCE1-03-7: 1 phase, 32A, 250V, 7kW HJ-EV-XCE1-03-11: 3 phase, 16A, 480V, 11kW HJ-EV-XCE1-03-22: 3 phase, 32A, 480V, 22kW 6, Each side keep 0.5M length, rest spiral 7, Spiral ratio: 0.25(25%); Workable length ratio: 0.5(50%) |
Mechanical Testing
Mechanical life: no load plug in / pull out > 10000 times
Impact of external force:qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector: by copper alloy with nickel bottom plating and 3um silver surface plating
Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable: black with TPU jacket. Other color optional by customizing
Mechanical life: no load plug in / pull out > 10000 times
Impact of external force:qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector: by copper alloy with nickel bottom plating and 3um silver surface plating
Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable: black with TPU jacket. Other color optional by customizing
