Quick Details
-
Model Number:
-
PS102-201N001R1B(S)
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000 Cycles
-
Lamp color:
-
Red, Green, Blue,Yellow
-
Type:
-
Rocker Switch With Light
-
Usage:
-
Large Wave Power Appliance
-
Soldering:
-
hand soldering
-
Terminal:
-
4 Feet 2 Files
-
Soldering ability:
-
230±10℃/ 3±1s
-
Dialectric strength:
-
≥1500 V AC
-
Insulation resistance:
-
≥100mΩ
-
Contact resistance:
-
≤50mΩ
-
Certification:
-
CCC CE ISO14001/9001 RHOHS REACH
Quick Details
-
Max. Voltage:
-
AC250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GANGYUAN
-
Model Number:
-
PS102-201N001R1B(S)
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000 Cycles
-
Lamp color:
-
Red, Green, Blue,Yellow
-
Type:
-
Rocker Switch With Light
-
Usage:
-
Large Wave Power Appliance
-
Soldering:
-
hand soldering
-
Terminal:
-
4 Feet 2 Files
-
Soldering ability:
-
230±10℃/ 3±1s
-
Dialectric strength:
-
≥1500 V AC
-
Insulation resistance:
-
≥100mΩ
-
Contact resistance:
-
≤50mΩ
-
Certification:
-
CCC CE ISO14001/9001 RHOHS REACH

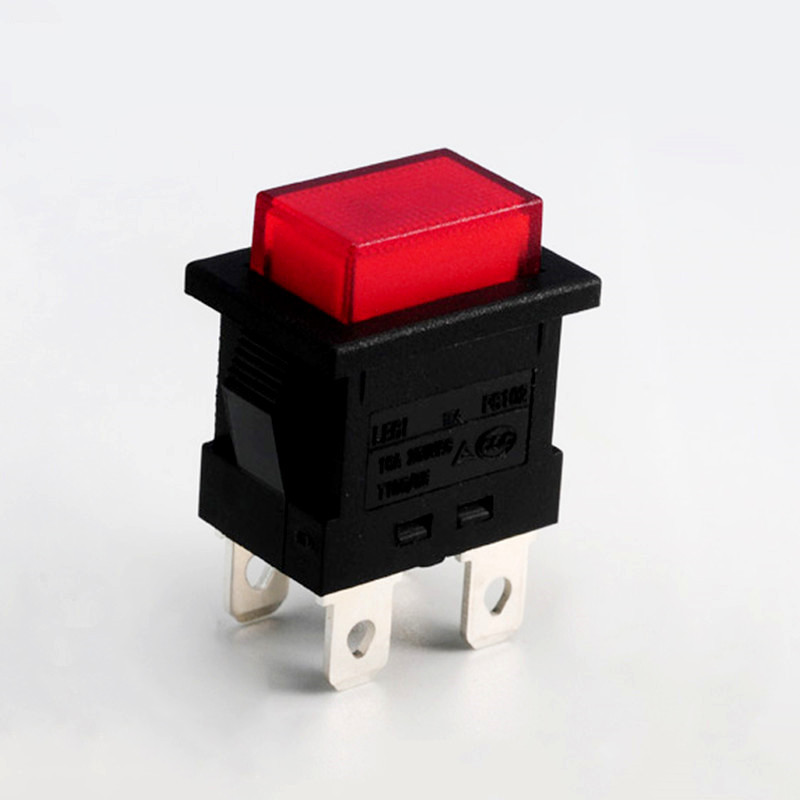

16a 250v 1e4 t125 4 pin custom automotive rocker switch
Product Description :
|
Product Name: |
rocker switch |
|
P roduct No.: |
PS102-201N001R1B(S) |
|
Dimension: |
21.1X15.1 |
|
Maximum Rating: |
16A,250V |
|
Dielectric Strength: |
≥1500 V AC |
|
Contact Resistance: |
≤50mΩ |
|
Insulation Resistance: |
≥100mΩ |
|
Electrical Life: |
>10000 Cycles |
|
Soldering ability |
230±10℃/ 3±1s |
|
Certifications: |
TUV UL CQC VDE |
Dimension:
