Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
BEKE
-
Year:
-
2023
-
Weight (KG):
-
8000 KG
-
Motor Power (kw):
-
11 kw
-

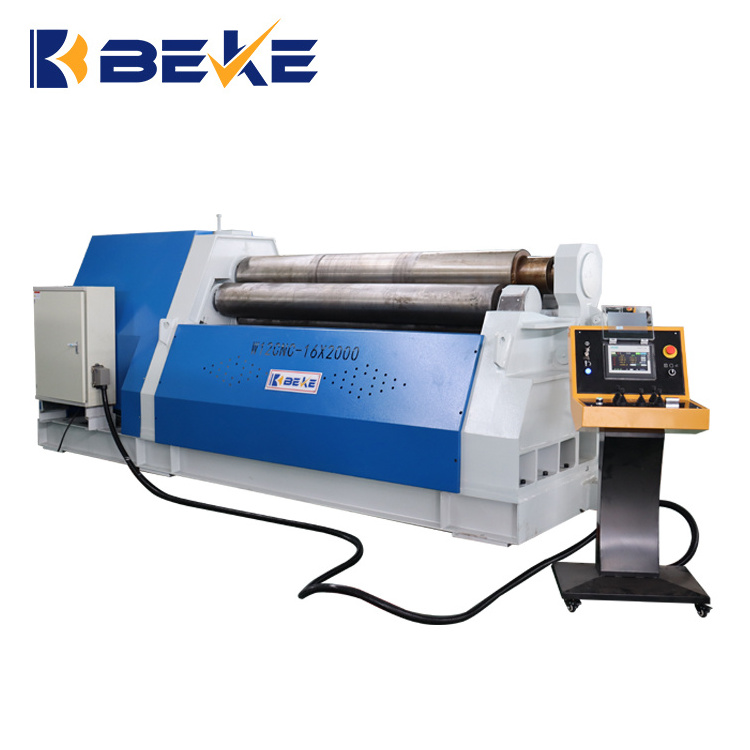

Model:
-
W12-16x2000
-
Max. Thickness of plate:
-
16mm(CS),12mm(CS)
-
Max. Pre-bending thickness:
-
12mm(CS),10mm(SS)
-
Max. Width of plate:
-
2000mm
-
The length of working rolls:
-
2050mm
-
Up roller diameter:
-
300mm
-
Bottom roller diameter:
-
270mm
-
Side roller diameter:
-
220mm
-
Minimum bending diameter:
-
600mm
-
Yield limit:
-
245MPa
Quick Details
-
Max. Working Length (mm):
-
2000 mm
-
Max. Plate Thickness (mm):
-
16 mm
-
No. of Roller:
-
4
-
Place of Origin:
-
China
-
Brand Name:
-
BEKE
-
Year:
-
2023
-
Weight (KG):
-
8000 KG
-
Motor Power (kw):
-
11 kw
-
Model:
-
W12-16x2000
-
Max. Thickness of plate:
-
16mm(CS),12mm(CS)
-
Max. Pre-bending thickness:
-
12mm(CS),10mm(SS)
-
Max. Width of plate:
-
2000mm
-
The length of working rolls:
-
2050mm
-
Up roller diameter:
-
300mm
-
Bottom roller diameter:
-
270mm
-
Side roller diameter:
-
220mm
-
Minimum bending diameter:
-
600mm
-
Yield limit:
-
245MPa
Product Description
Technical Details
| ITEM | VALUE |
| Model | W12-16x2000 |
| Max. Thickness of plate | 16mm(CS),12mm(CS) |
| Max. Pre-bending thickness | 12mm(CS),10mm(SS) |
| Max. Width of plate | 2000mm |
| The length of working rolls | 2050mm |
| Up roller diameter | 270mm |
| Side roller diameter | 220mm |
| Minimum bending diameter | 600mm |
| Yield limit | 245MPa |
| Warranty | 2 years |
| Bending speed | 4m/min |
| Main motor | 11KW |
| Weight | 8000KGS |
| Dimension |
4700mmx1500mmx1500mm |
