Quick Details
-
Model Number:
-
Long-Medical Tubes-PVDF
-
Standard:
-
ISO 10993-1
-
Shrink rate:
-
2:1
-
Operating temperature:
-
-55°C ~140°C
-
Initial shrink temperature:
-
>100°C
-
Environmental standard:
-
RoHS
-
Standard color:
-
Transparent, black (other colors can be customized)
-
Size:
-
1.2mm-12.7mm
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WOER
-
Model Number:
-
Long-Medical Tubes-PVDF
-
Standard:
-
ISO 10993-1
-
Shrink rate:
-
2:1
-
Operating temperature:
-
-55°C ~140°C
-
Initial shrink temperature:
-
>100°C
-
Environmental standard:
-
RoHS
-
Standard color:
-
Transparent, black (other colors can be customized)
-
Size:
-
1.2mm-12.7mm

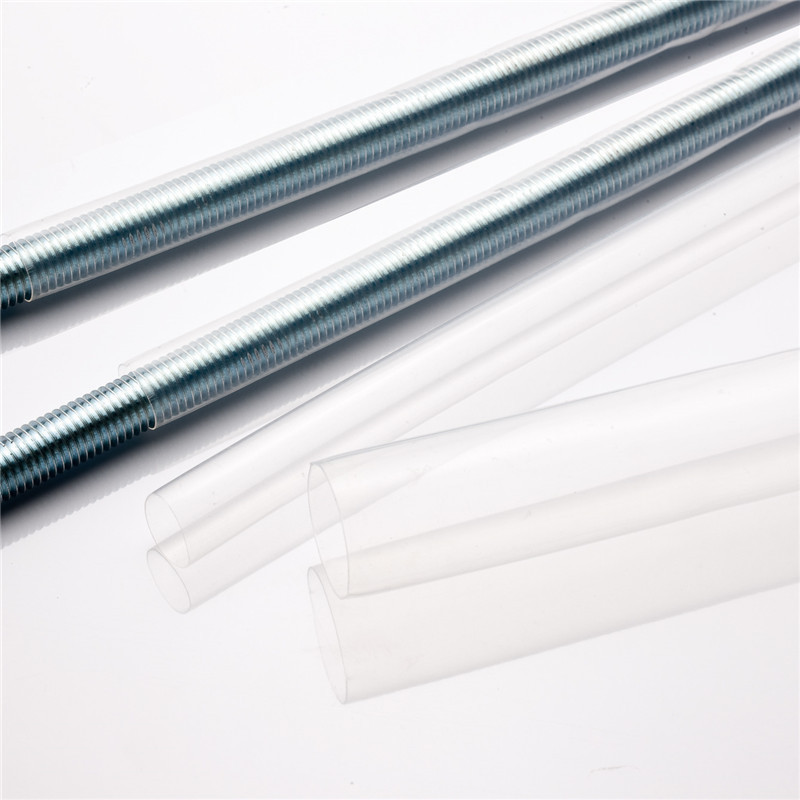

PVDF is a cross-linked polyvinylidene fluoride (PVDF) heat shrinkable tube. PVDF has excellent chemical and abrasion resistance, high dielectric strength and excellent tensile strength. Its uniform structure contributes to its consistency and high performance, making our MT-PVDF essentially free of defects, pinholes, seams, cracks or speckles. MT-PVDF is flexible, more flexible than our other PVDF heat shrink tubing.lt can provide wear protection for surgical and internal instruments.
Features
Shrink rate :2:1
Operating temperature :-55°C ~140°C
Initial shrink temperature: >100°C
Excellent electrical insulating properties
Compliant with ISO 10993-1 for gamma,
ETO and dry heat sterilization
Environmental standard: RoHS
Standard color: Transparent, black (other colors can be customized)
Properties :
|
Performance |
Test standard |
Standard |
|
Tensile Strength/MPa |
ASTMD2671 |
>24.3 |
|
Elongation at Break/% |
ASTMD2671 |
>300 |
|
Voltage Resistance test (V) |
ASTM D149 |
4000V,lmin No Breakdown |
|
Volume Resistivity/Q,cm |
IEC 60093 |
>10 u |
|
Flame Retardant |
ASTM D 2671 C method |
Pass |
|
Water Absorption/% (23 o C\24h) |
ASTM D 2671 |
<0.5 |
Size Chart
|
Prat No. |
As Supplied Inside Diameter min(D) |
Recovered Size |
||||
|
inch(in) |
(mm) |
Inside Diameter max(d) |
Wall Thickness(W) |
|||
|
|
inch(in) |
(mm) |
inch(in) |
(mm) |
||
|
RSFR-MT-PVDF-2X-1.2-* |
3/64 |
1.20 |
0.023 |
0.60 |
0.010+0.002 |
0.31±0.06 |
|
RSFR-MT-PVDF-2X-1.6-* |
1/16 |
1.60 |
0.031 |
0.80 |
0.010±0.002 |
0.31±0.06 |
|
RSFR-MT-PVDF-2X-2.4-* |
3/32 |
2.40 |
0.046 |
1.20 |
0.010±0.002 |
0.31 ±0.06 |
|
RSFR-MT-PVDF-2X-3.2-* |
1/8 |
3.20 |
0.062 |
1.60 |
0.010±0.002 |
0.31 ±0.06 |
|
RSFR-MT-PVDF-2X-4.8-* |
3/16 |
4.80 |
0.093 |
2.40 |
0.010+0.002 |
0.31±0.06 |
|
RSFR-MT-PVDF-2X-6.4-* |
1/4 |
6.40 |
0.125 |
3.20 |
0.012±0.003 |
0.38±0.06 |
|
RSFR-MT-PVDF-2X-9.5-* |
3/8 |
9.50 |
0.187 |
4.80 |
0.012 ±0.003 |
0.38±0.07 |
|
RSFR-MT-PVDF-2X-12.7-* |
1/2 |
12.70 |
0.250 |
6.40 |
0.012 ±0.003 |
0.38±0.07 |
