Quick Details
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
1800
-
Working Temperature(℃):
-
-30 - 50
-
LED Light Source:
-
Epistar SMD2835
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Product name:
-
surface mounted LED ceiling light
-
Warranty:
-
2 years
-
Aluminum housing color:
-
black,white,grey color
-
power:
-
20W
-
Product Size:
-
300*300*85mm
-
Material:
-
Die-casting aluminum, milky PC cover
-
Application:
-
Hotel,bathrom,corridor,bacony,stairs,spa,toilet
-
Function:
-
with motion sensor,emergency, dimmable
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
hofoled
-
Model Number:
-
HF-CL20R300
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
1800
-
Working Temperature(℃):
-
-30 - 50
-
LED Light Source:
-
Epistar SMD2835
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Product name:
-
surface mounted LED ceiling light
-
Warranty:
-
2 years
-
Aluminum housing color:
-
black,white,grey color
-
power:
-
20W
-
Product Size:
-
300*300*85mm
-
Material:
-
Die-casting aluminum, milky PC cover
-
Application:
-
Hotel,bathrom,corridor,bacony,stairs,spa,toilet
-
Function:
-
with motion sensor,emergency, dimmable

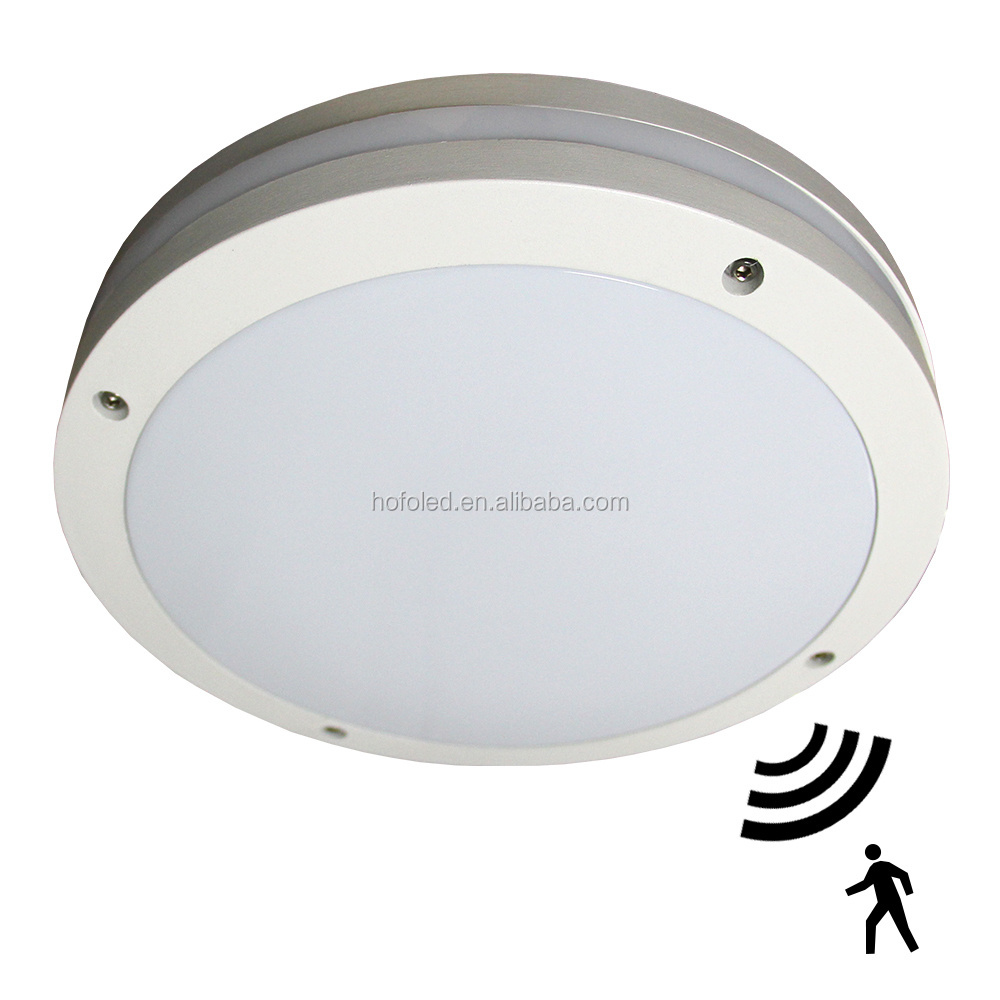

Indoor Outdoor IP65 IK10 Round Modern Surface Mounted LED Ceiling Light
Same diameter 300mm for 20W 30W 40W, Black,White,Grey colors available for choose
Online price is for 20W only, if need 30W 40W, contact us for quota. With sensor add 6usd/pc
Can offer IES, Free-design, Project Support, Wholesales Available
| Model | Dimension | CRI | PF | N.G(KG) |
| HF-CL20R300 20W | 300*300*85mm | >80 | >0.95 | 1.5 |
| HF-CL30R300 30W | 300*300*85mm | >80 | >0.95 | 1.6 |
| HF-CL40R300 40W | 300*300*85mm | >80 | >0.95 | 1.8 |
3. IP65 waterproof, dustproof for indoor and outdoor lighting
4. 304 Stainless steel hexagon socket head cap screws
5. Can add with 0-100% microwave sensor, dimming sensor, RF sensor
6. Can add emergency function 3 hours
7. Black / white / grey aluminum housing color available
8. Glow wire test at 850 ℃ pass NF EN 60695-2-1,VDE approval.
1. Can add Microwave Motion Sensor Function
Microwave Motion Sensor are available to add inside the led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 10m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
2. Can add emergency function:
Input Voltage: AC 100-277V 50/60Hz Standard Power: 20W
Emergency Power: 8W(SMD 2835) Continuous Illumination: 180 minutes
Battery: LIR 7.4V 4400MAH Recharging time >24 hours
Over-discharge protection: Yes Battery warranty: 2 years
3. Motion Sensor + Emergency function for complete use
4. Dimmable Function
Flick free and soft dimming in any power or brightness.Built-in dual independent constant
current output,through a total anode connection to achieve stepless,dimming and color
temperature adjustment function.
1).1-10V PWM dimmable
2).Triac dimmable
3).DALI dimmable
4).CCT adjustment dimmable
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa, Corridor, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
|
UK Hilton Hotel Project 2017
Project Location: England
Completion Date: Jan, 2017
Number of lamps: 2000PCS
|
UK Hilton Hotel Project 2018 Project Location: England
Completion Date: June, 2018
Number of lamps: 2100PCS
|
UK Stairway Project 2018 Project Location: London
Completion Date: Sep, 2018
Number of lamps: 1500PCS
|
|
Netherlands
40 Buildings 2018
Project Location: Amsterdam
Completion Date: May, 2018
Number of lamps: 2000PCS
|
New Zealand
Apartment 2017
Project Location: Auckland
Completion Date: Dec, 2017
Number of lamps: 3500PCS
|
UAE Dubai Nad Mall Project 2019
Project Location: Dubai
Completion Date: July, 2019
Number of lamps: 5000PCS
|
1.Payment T/T , L/C , Paypal , Trade Assurance, Western Union. small order is 100%, large amount 30% down payment, 70% balance before shipping
2. MOQ: 5 pcs, Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Shipping: can by express DHL,FEDEX,UPS, TNT etc, By air flight, By sea
