Quick Details
-
Stroke:
-
100mm
-
Cylinder diameter:
-
80mm
-
type:
-
Horizontal three cylinder reciprocating single acting piston pump
-
Pressure:
-
2.5MPa
-
Pump speed:
-
200 times/min
-
Power:
-
15 KW
-
Flow:
-
250L/min
-
Dimension:
-
1000*995*650mm
-
Weight:
-
760kg
Quick Details
-
Brand Name:
-
Hengwang
-
Model Number:
-
BW250
-
Product name:
-
BW200 Horizontal double cylinder reciprocating double acting Mud Pump
-
Stroke:
-
100mm
-
Cylinder diameter:
-
80mm
-
type:
-
Horizontal three cylinder reciprocating single acting piston pump
-
Pressure:
-
2.5MPa
-
Pump speed:
-
200 times/min
-
Power:
-
15 KW
-
Flow:
-
250L/min
-
Dimension:
-
1000*995*650mm
-
Weight:
-
760kg

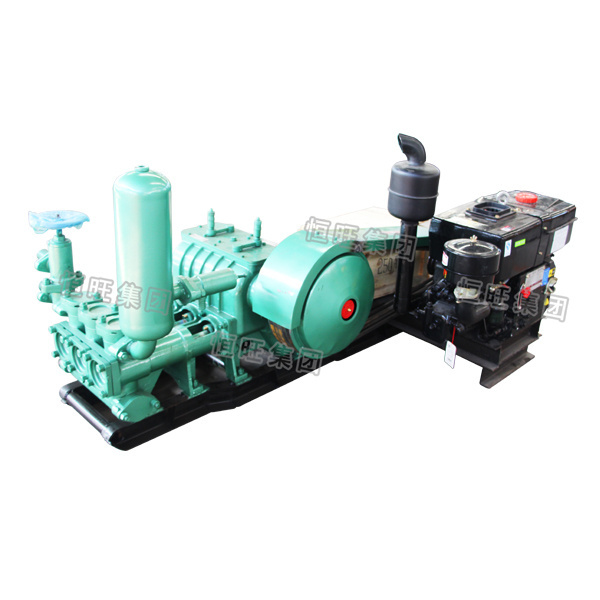

BW200 Portable Horizontal double cylinder reciprocating double acting piston Mud Pump for Drilling Rig machine mud pump
Product Description
Mud pump is a kind of portable hydralic pump. The pump is a horizontal three cylinder reciprocating single acting piston pump, has four flow and four kinds of pressure, flow and pressure range, the pump has the advantages of small volume, light weight, long service life, simple operation, reliable and flexible, general and standard partsand other characteristics, light and flexible, easy to move. Can be used in railway, within the water, metallurgy, construction, geological industry deep hole 1000m geological exploration, engineering exploration with pump.
1,Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, motor, diesel engine；
2,The design on the use of new ideas, new structure, new materials, new technology;
3,Horizontal pump to improve standardization, seriation, generalization,crankshaft, connecting rod body, the cross head, the pump head and some other components related to serialization and the universal, the other components of the reduced species；
4,Loss of long life, high reliability .
Technical Parameters
|
Model
|
BW150
|
BW160
|
BW250
|
BW320
|
BW850
|
|
Max. flow
|
150L/min
|
160L/min
|
250L/min
|
320L/min
|
850L/min
|
|
Max. pressure
|
7Mpa
|
6Mpa
|
6Mpa
|
8Mpa
|
8Mpa
|
|
Power
|
7.5kw
|
11kw
|
15kw
|
30kw
|
54KW
|
|
Inlet pipe diameter
|
51mm
|
51mm
|
76mm
|
76mm
|
152mm
|
|
Outlet pipe diameter
|
32mm
|
32mm
|
51mm
|
51mm
|
64mm
|
|
Weight
|
560kg
|
480kg
|
760kg
|
1000kg
|
3100kg
|
