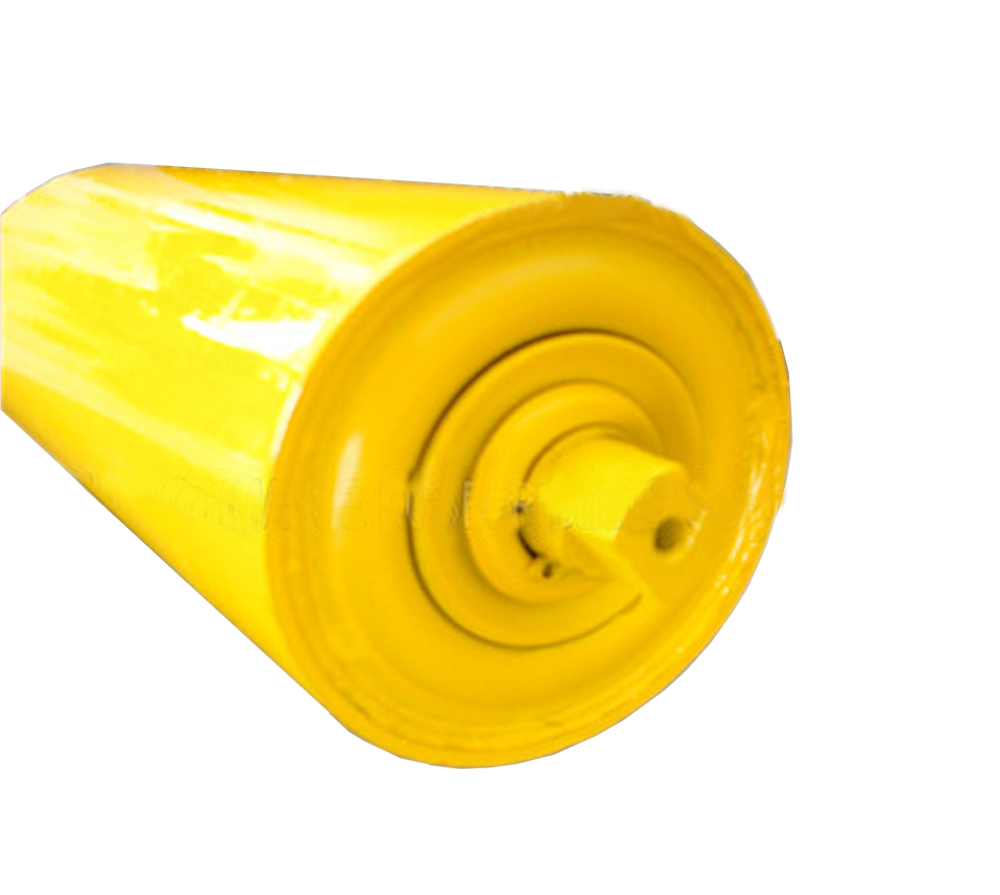

steel rollers for belt conveyor/roller conveyor

steel rollers for belt conveyor/roller conveyor

This type of  coal mine rubber conveyor belt idler roller has been exported to more than 30 countries all over the world and particularly suitable for South America market and we have professional engineers and all of them have rich experience in this field, we can design the goods independently.Huayue rubber belts.,ltd Din Standard Conveyor Idler/Roller is the best choice for you.

Specification

Pipe - roller pipe/Q235/carbon steel

Diameter(mm): 51, 60, 63.5, 76, 89, 108, 127, 133, 159

Length(mm):190, 200, 240, 250, 305, 315, 375, 380, 455, 465, 525, 530.

Thickness(mm):1.8, 2.0, 2.2, 2.5, 2.75, 3.0, 3.25, 3.5, 3.75, 4.0

Brand:BAOLAI, GH

Shaft - A3(45#steel)

Diameter(mm):20, 25, 30, 35, 40

Bearing - C&U,HRB,ZWZ,LYO,NWH,SKF,NSK

Type: deep groove ball bearing with C3/C4

Size: 6104, 6204, 6205, 6305, 6206, 6306, 6307, 6308

Bearing Housing - Trinity,special customized for Huayue

Type: pressed housing, cast iron bearing housing, polymer

housing

Seal - Multiple labyrinth seal, water proof, dust proof

Type: general use(nylon), Double labyrinth seal,TR seal

Grease: Lithium grease lubricant

Standard: GB, ISO, CEMA, DIN, JIS, ETC

Production capacity: 2000pcs/day.

Advantage

1. The life time: more than 30000 hours

2. Samples for testing are available.

3. Minimum revoiving resistance

4. Small maintain work

5. High load capability

6. The more relaxed payment terms

7. Dust proof & water proof
