- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BQLED
-
Model Number:
-
BQ-BH300T-20
-
Color Temperature(CCT):
-
3000K-6000K
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Efficiency(lm/w):
-
90-95
-
Lamp Luminous Flux(lm):
-
2000
-
Warranty(Year):
-
3 Year
-
Working Temperature(℃):
-
-20 - 45
-
Cover Material:
-
PC
-
Application:
-
Living Room,Home Office,Outdoor, Corridor,Staircase,Balcony
-
PCs/ Ctn:
-
12
-
Packing Dimension:
-
32x10x32cm
-
Product Weight（kg）:
-
1.1
-
Power brand:
-
BQ
-
Free sample:
-
YES
-
Lamp Sizes:
-
300x80
-
Product Name:
-
LED Ceiling Bulkhead Light
-
Material:
-
ABS+PC
-
Power Factor:
-
>0.88
-
LED Chip:
-
2835
-
Function:
-
Emergency Commercial Lighting
-
IK:
-
IK10
-
Certificate:
-
Ce Rohs LVD EMC MSDS
-
Power:
-
10W 15W 20W
Quick Details
-
Design Style:
-
Modern
-
Product Dimension:
-
300x80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BQLED
-
Model Number:
-
BQ-BH300T-20
-
Color Temperature(CCT):
-
3000K-6000K
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Efficiency(lm/w):
-
90-95
-
Lamp Luminous Flux(lm):
-
2000
-
Warranty(Year):
-
3 Year
-
Working Temperature(℃):
-
-20 - 45
-
Cover Material:
-
PC
-
Application:
-
Living Room,Home Office,Outdoor, Corridor,Staircase,Balcony
-
PCs/ Ctn:
-
12
-
Packing Dimension:
-
32x10x32cm
-
Product Weight（kg）:
-
1.1
-
Power brand:
-
BQ
-
Free sample:
-
YES
-
Lamp Sizes:
-
300x80
-
Product Name:
-
LED Ceiling Bulkhead Light
-
Material:
-
ABS+PC
-
Power Factor:
-
>0.88
-
LED Chip:
-
2835
-
Function:
-
Emergency Commercial Lighting
-
IK:
-
IK10
-
Certificate:
-
Ce Rohs LVD EMC MSDS
-
Power:
-
10W 15W 20W
Products Description

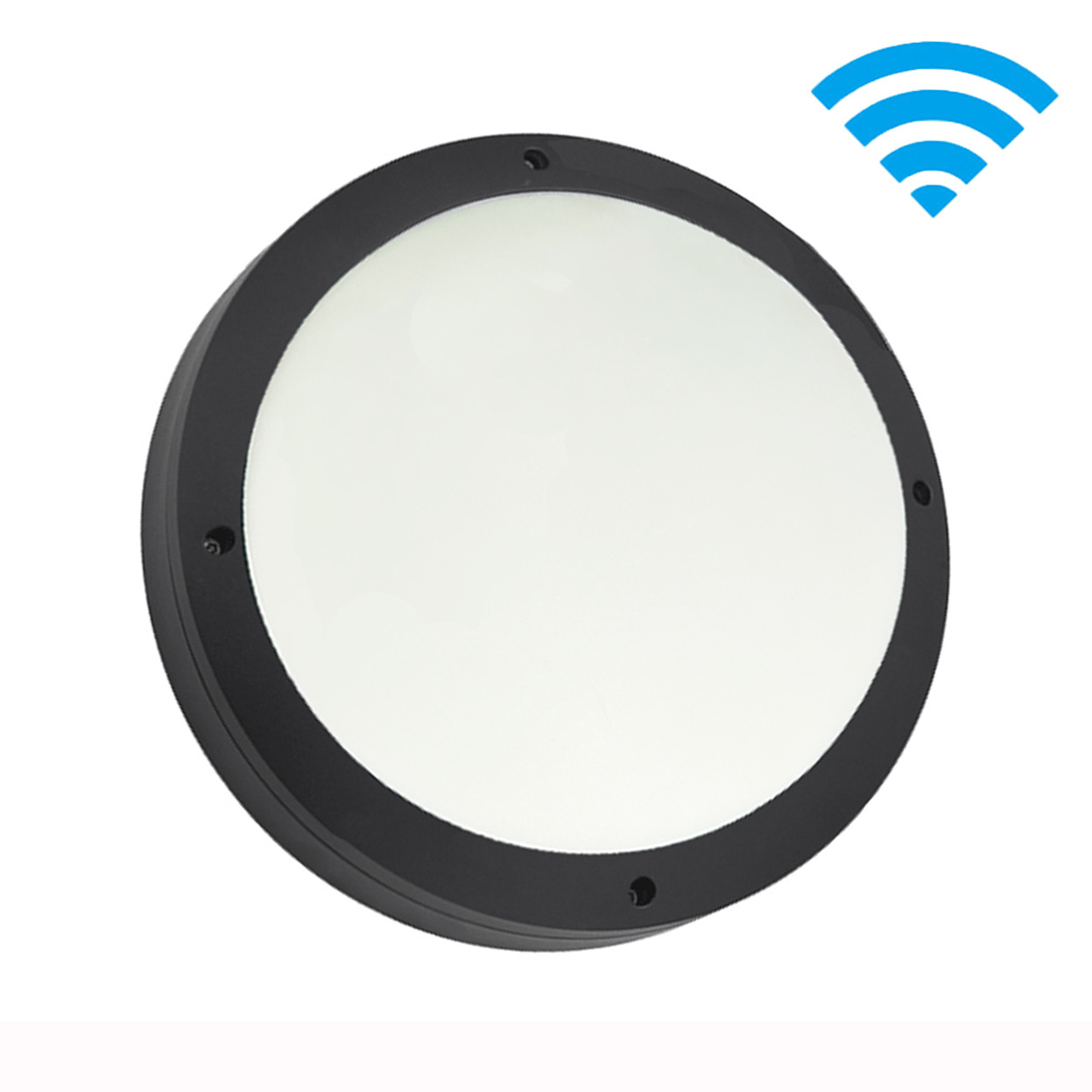

China Factory Bulkhead Led Surface Recessed IP65 Rechargeable 10W Emergency Led Bulkheads
Our led bulkhead light is designed to offer a multifunctional all-in-one product for exterior walls or ceilings. Brightness levels can be selected from low, medium to high brightness with a wattage switchable switch from
10W/15W/22W
depending on the desired brightness. Also the added option of changing the color temperature output via a switch. Switchable color temperature allows for the choice of a Warm White, Neutral White or White color temperature appearance. Smart installation features have been incorporated for quicker and easier installation. This bulkhead is also available in
White , Grey and Black
ABS+PP frame .
We are OEM Manufacturing , if you have special requirements or make your private product , please contact us , we can help you .
There are 5 benefits of co-operating with us :
1. Reliable Quality
2. Competitive Pricing
3. Faster Production
4. Excellent Support
5. Return on Investment
There are 5 benefits of co-operating with us :
1. Reliable Quality
2. Competitive Pricing
3. Faster Production
4. Excellent Support
5. Return on Investment
Professional Mold Design
BQLED Mold Design Team provides the mold design that combines decades of mold design experience and Profound Expertise with the latest CAD technology , our service is professional, efficient, integrity, good quality but not expensive.
Injection Molding Machine
We have our own injection molding machine , so we can design and produce the plastic housing for lamp by ourselves , ,
Experienced Lighting Technology
BQLED
Lighting R & D technical team with experienced engineers , they have enough ability to develop high quality and stable products , help you to solve the problem you meet and give you solution for the led lighting
Details Images
1. IP65 Waterproof Rating
The led bulkhead lamp has insert waterproof silicone loop and waterproof cable cap to ensure the waterproof rating .
2. Easy Installation
Our bulkhead lamp is quite easy to be installed , we have a special design that we made the lamp as two main parts , once the base part is fixed on the wall , we just need to connect the fast connector and screw the screws to fix the cover part , than the installation is complete .
3. 3CCT & 3 Powers Options
One product with 3 color temperatures and 3 powers , means that you will have 9 options and they are decided by you . It can help you to solve the problem for which color temperature or power is suitable for different places .
There is an adjust switch for selecting the color temperature and power , it is quite easy to control
There is an adjust switch for selecting the color temperature and power , it is quite easy to control
4. Microwave Sensor + PIR Sensor Options
The bulkhead lamp is compatible with microwave sensor and PIR sensor , the benefits of motion sensor lighting , of course, the most common use for motion detecting and sensitive lights is as security lights. They are installed in gardens and entryways for homeowners. They’re also common in car parks and building sites. These floodlights can light up as soon as they detect motion.
This not only provides security, and helps prevent people from creeping around your home, it also improves safety. No more fumbling around in the dark, trying to find steps or fumble with light switches when carrying bags and armfuls of groceries.
This not only provides security, and helps prevent people from creeping around your home, it also improves safety. No more fumbling around in the dark, trying to find steps or fumble with light switches when carrying bags and armfuls of groceries.
5. Sensor Master Slave Function
One product with sensor (master) can connect many products without sensor（slave）, the slave products can be controlled by the master product .
The master product detects human movement , all the slave products will turn on together , also they will turn off together when the sensor doesn’t detect any human movement .
This master slave function can help to save lots of cost and makes the lighting system more convenient .
The master product detects human movement , all the slave products will turn on together , also they will turn off together when the sensor doesn’t detect any human movement .
This master slave function can help to save lots of cost and makes the lighting system more convenient .
6.
Different Color Housing
The material of the bulkhead lamp is ABS , PP , so the color of housing can be customized such as
black , white and grey
.
7. Uniform Lighting
Leds are arranged
evenly
on the PCB , it makes the light of led ceiling light uniform and
comfortable .
8. Anti-thief System
The product uses anti-thief screws to fix the housing , it can prevent the bulkhead lamp from stealing .
9. Cable Clip
This is our special design as well , the cable clip helps to clip the cables and keep the accessories inside the product neatly .
Appliactions
Simple designed LED Bulkhead light can be used in different places as stairway , living room and corridor .
As it reaches IP65 , it even can be used at balcony .
Test
IP65 Waterproof Test
The bulkhead lamp is doing the waterproof test and passed .
IK10 Rating Test
This led bulkhead can pass IK10 test , no need to worry about the collision .
Aging Test
To ensure the quality before shipment
Product Paramenters
|
Model
|
BQ-BH300T3
|
|
Input voltage
|
240V ac
|
|
Power
|
10W 15W 20W
|
|
Voltage
|
AC 100V~240V
|
|
Frequency
|
50/60Hz
|
|
Size
|
300(D)* 80(H)
|
|
CCT
|
3000/4000K/6000K
|
|
Power Factor
|
≥ 0.9
|
|
Color Rendering Index
|
≥ 80
|
|
LED Luminous Flux
|
1425lm
|
|
Material
|
ABS (FR) +PC
|
|
Beam Angle
|
120°
|
|
Weight
|
1kg
|
|
Work Environment
|
Indoor + Outdoor
|
|
IP RATING
|
IP65
|
|
IK Rating
|
IK10
|
|
Operating Temperature
|
-30 ~ +50 ℃
|
|
Storage Temperature
|
-40 ~ +78 ℃
|
|
Certification
|
CE, RoHS ,LVD
|
