Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xinglong
-
Dimension(L*W*H):
-
customized
-
Weight:
-
120000 KG
-
Product name:
-
3 layer corrugated paper board pasing carton box gluing making machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
optional
-
Design speed:
-
60-220m/min
-
Paper width:
-
1200-2200mm
-
Layer:
-
3 5 layer
-
Cutting accuracy:
-
±1mm
-
Pakage:
-
wooden cases, wooen pallets
Quick Details
-
Application:
-
APPAREL, Chemical, Food, Machinery & Hardware, Medical, Textiles
-
Packaging Material:
-
Paper, Plastic, Wood
-
Voltage:
-
380v50hz customized
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xinglong
-
Dimension(L*W*H):
-
customized
-
Weight:
-
120000 KG
-
Product name:
-
3 layer corrugated paper board pasing carton box gluing making machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
optional
-
Design speed:
-
60-220m/min
-
Paper width:
-
1200-2200mm
-
Layer:
-
3 5 layer
-
Cutting accuracy:
-
±1mm
-
Pakage:
-
wooden cases, wooen pallets

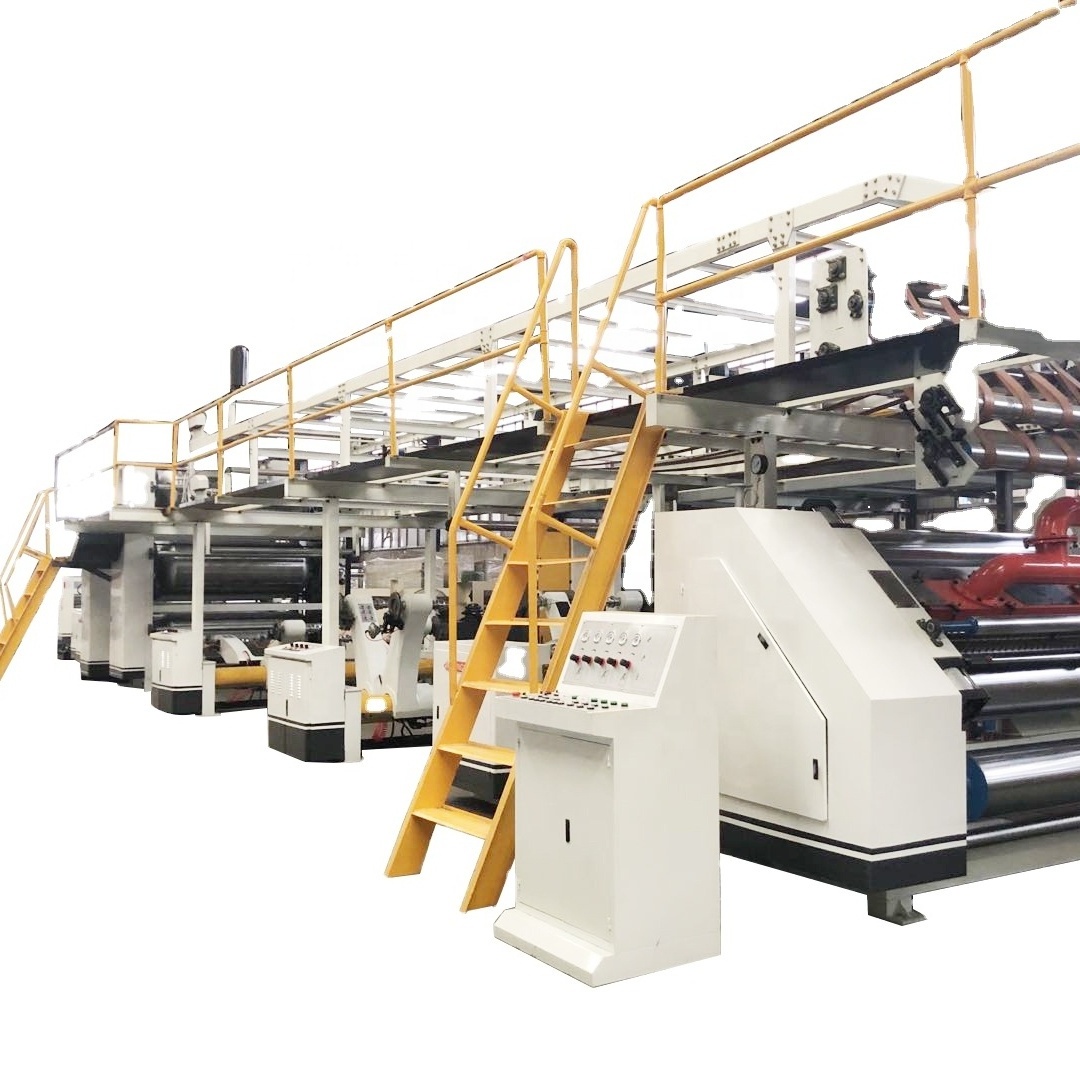

Used Corrugated cardboard production line(Second hand)/second hand carton box making machine/used corrugation machine
| Effective width | 1400mm |
| Design produce speed | 100m/min |
| Three layer economic speed | 60-80m/min |
| Maximum order change speed | 80m/min |
| Longitudinal separation accuracy | ±1mm |
| Cross-cutting precision | ±1mm |
Speed the above targets required to achieve:
Effecive width 1400mm, Comply with the following standards and ensure the paper's
equipment condition 175 ℃ heating surface temperature.
| Top paper index |
100 g /m² --180 g /m² Ring crush index(N. g /m² )≥8 (Water containning8-10%) |
| Core paper index |
80 g /m² --160 g /m² Ring crush index (N. g /m² )≥5.5 (Water containing 8-10%) |
| In paper index |
90 g /m² --160 g /m² Ring crush index (N g /m² )≥6 (Water containing8-10%) |
| Steam requirement |
The maximum pressure 16Kg/cm² Common pressure 10-12kgkg/cm² Use 2000kg/Hr |
| Electricity demand |
AC380V 50HZ 3PH Total power ≈350KW Running Power≈150KW |
| Compressed air |
The maximum pressure 9kg/cm² Common pressure4-8kg/cm² use1 m³/min |
| Space |
≈Lmin60m*Wmin 10m*Hmin5m (The actual drawing to provider to provide audited prevail) |
