- Product Details
- {{item.text}}
Quick Details
-
Features:
-
High Payload
-
Production Capacity:
-
productivity
-
Warranty:
-
1
-
Dimension(L*W*H):
-
-
-
Power:
-
-
-
Voltage:
-
-
-
Weight (KG):
-
15
-
Product Name:
-
KUKA Cobot Robot
-
Robot Brand:
-
KUKA
-
Model:
-
LBR iisy15
-
Arm length:
-
820mm
-
Repeatability:
-
0.04mm
-
Axis:
-
6
-
Payload:
-
6kg
-
Installation Method:
-
floor/Ceiling/Wall
-
Controller:
-
KR C4 compact
-
IP level:
-
IP54/IP65
Quick Details
-
Place of Origin:
-
Shanghai,China
-
Brand Name:
-
KUKA
-
Application:
-
Pick and Package
-
Features:
-
High Payload
-
Production Capacity:
-
productivity
-
Warranty:
-
1
-
Dimension(L*W*H):
-
-
-
Power:
-
-
-
Voltage:
-
-
-
Weight (KG):
-
15
-
Product Name:
-
KUKA Cobot Robot
-
Robot Brand:
-
KUKA
-
Model:
-
LBR iisy15
-
Arm length:
-
820mm
-
Repeatability:
-
0.04mm
-
Axis:
-
6
-
Payload:
-
6kg
-
Installation Method:
-
floor/Ceiling/Wall
-
Controller:
-
KR C4 compact
-
IP level:
-
IP54/IP65
Product Review
KUKA Cobot Robot Welding/
Handling Cobot Robot for Mental
KUKA Cobot Robot has been constantly exploring the breadth and depth for serving human by its self-developed leading collaborative robot technologies. The payload of the robots vary from 3kg to 18kg which can meet the requirements of various customers.Moreover, Han’s Robot has developed products from the first generation 6-axis collaborative robots Elfin robot to the second-generation Elfin-P robot with higher performance, and has released 7-axis intelligent collaborative robots MAiRA in March 2021.
G series 6-axis collaborative robots can be used in automated integrated production lines, assembly, picking, welding, grinding,painting and other fields, and have been successfully exported to more than 100 countries and regions including Europe, America,Japan and South Korea. The G series collaborative robot adopts a unique dualjoint module design. One motion module contains two joints, which constitute a unique kinematic structure, which is not only different from most collaborative robots in the market in appearance, but also can achieve higher flexibility during work.
|
Products Name
|

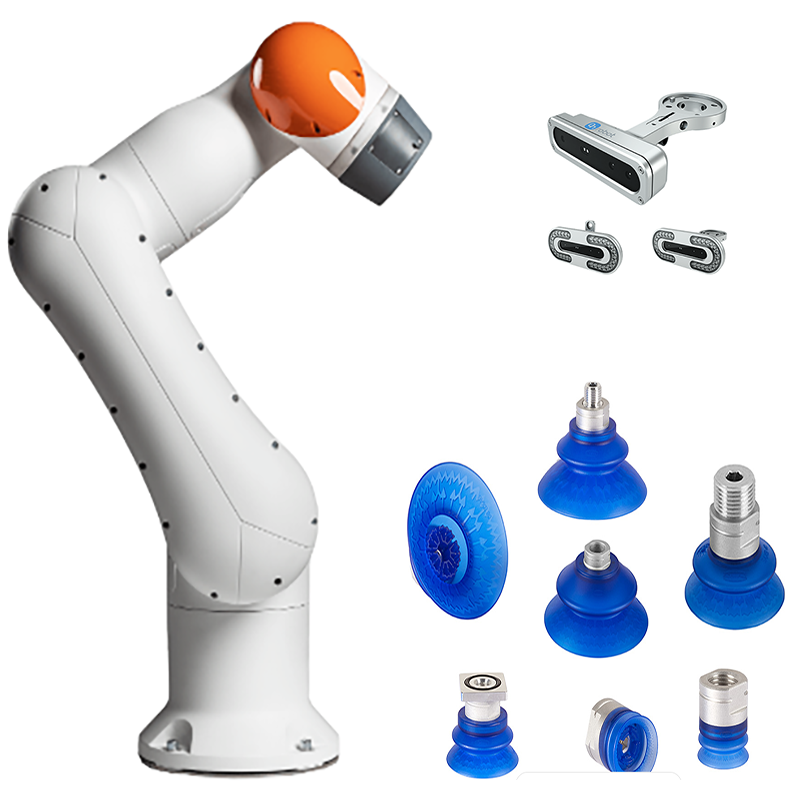

LBR iisy15 KUKA Cobot Robot With Onrobot vacuum sucker Or Gripper of Robot
|
|
|
Technical data
|
|
|
|
Robot Arm Length
|
1300mm
|
|
|
Payload
|
6kg
|
|
|
Repeativity
|
0.04mm
|
|
|
Axis
|
6
|
|
|
Installation Method
|
floor,ceilimg,wall
|
|
|
Weight
|
40kg
|
|
|
Motion Range
|
|
|
|
A1
|
+_170°
|
|
|
A2
|
-185°/65°
|
|
|
A3
|
-137°/163°
|
|
|
A4
|
+—185°
|
|
|
A5
|
+—120°
|
|
|
A6
|
+—350°
|
|
|
Speed with rated payload
|
|
|
|
A1
|
220°/s
|
|
|
A2
|
210°/s
|
|
|
A3
|
270°/s
|
|
|
A4
|
381°/s
|
|
|
A5
|
311°/s
|
|
|
A6
|
492°/s
|
|
|
Operating conditions
|
|
|
|
IP Level
|
IP54/IP65
|
|
|
Temperature
|
5°C to 45°C（278K to 318K)
|
|
|
Controller
|
KR C4 compact
|
|
Similar products
KR 810 Cobot Robot
HANS S20 Cobot Robot
Robot Related Products
Onrobot VGC10
Brand:
OnRobot
Customized:
No
Diameter:
127mm
Hight:
9.5mm
Size:
87*123*214mm
Type:
0.1kg
Weight:
1.2kg
Ip Level:
IP54
Teampture:
0-50°C
Art Model:
OnRobot Sander
Easy to deploy and program right out of the box for sanding, buffing and polishing
Protective Cover
Product characteristics:
1. Designed and manufactured using aramid composite materials
2. Has high strength (stretching>1900N)
3. High wear resistance (friction>100000 revolutions)
4. Has acid and alkaline resistance
5. Has anti-static properties
This protective clothing has a wide range of uses, mainly aimed at robots working in normal environments, to prevent dust, dust, metal particles splashing after work from affecting the normal operation of the robot;
Onrobot Vacuum Sucker
SCHUNK Gripper
