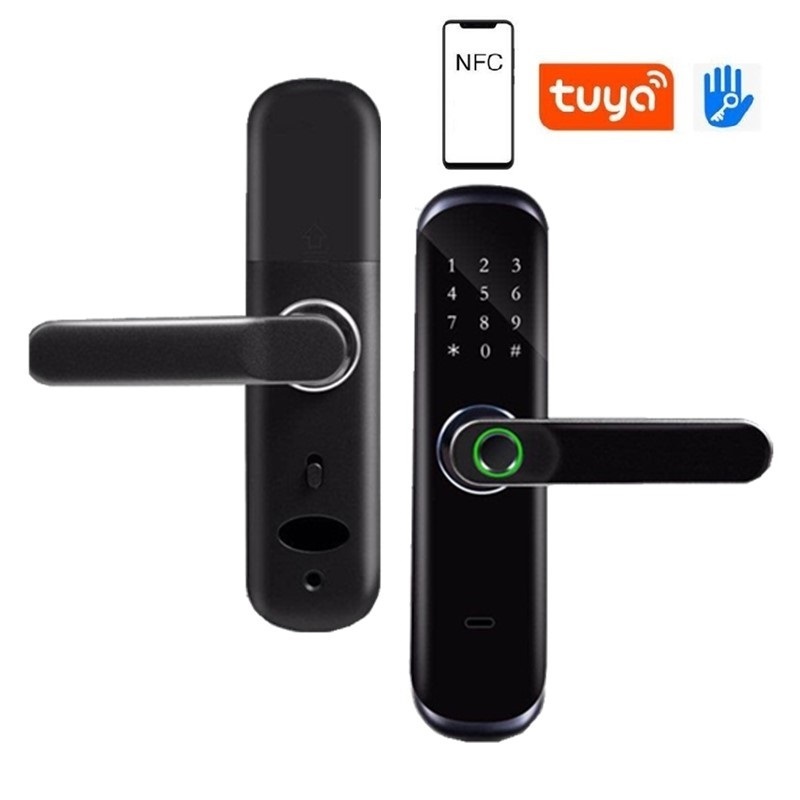

This door lock supports fingerprint, M1 card, password and keys by default; TTLock BLE or Tuya wifi optional
It is powered by 4pcs AAA (4.5 to 6v voltage)
Emergency power back-up(USB port), when power if off, it can be powered via power bank
The lock supports firmware update, and software functions can be expanded through firmware update.
The lock is suitable for and widely used in commercial office, residential, government departments, army, banks, hospitals, etc.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XPO-TECH
-
Model Number:
-
BL04
-
Unlock Ways:
-
Fingerprint,Card,Password, Keys; Smartphone App optional
-
Communication:
-
BLE/WIFI optional
-
APP Name:
-
TT Lock / Tuya APP optional
-
Power:
-
4 AAA alkaline battery (4.5-V)
-
Working current:
-
>250mA
-
Material:
-
Zinc Alloy+ABS
-
Application:
-
Office, Home, Apartment
-
Certification:
-
CE
Quick Details
-
Door Type:
-
Wood door, Steel door, Stainless Steel door, Aluminum door, Brass door
-
Network:
-
wifi, bluetooth
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XPO-TECH
-
Model Number:
-
BL04
-
Unlock Ways:
-
Fingerprint,Card,Password, Keys; Smartphone App optional
-
Communication:
-
BLE/WIFI optional
-
APP Name:
-
TT Lock / Tuya APP optional
-
Power:
-
4 AAA alkaline battery (4.5-V)
-
Working current:
-
>250mA
-
Material:
-
Zinc Alloy+ABS
-
Application:
-
Office, Home, Apartment
-
Certification:
-
CE
Recommend Products
BLAC1 Card Access Control
Non Waterproof
IC Card&Code&APP
200 IC Card Capacity
150 Custom Code
BLAC2 Card Access Control
IP66 Waterproof
IC Card&Code
&APP
20000 IC Card Capacity
150 Custom Code
BLAC2-F Fingerprint Access Control
IP66 Waterproof
Fingerprint&IC Card&Code
&APP
100 Fingerprint; 20000 IC Card Capacity
150 Custom Code
BL08-F Fingerprint Lock
Fingerprint&IC Card&Code&APP&Keys
100 Fingerprint; 100 IC Card Capacity
150 Custom Code
Products Description
Product Paramenters
|
Door Thickness
|
38 to 50mm thickness door
|
|
|
|
Power supply
|
4 ~ 6V(4 pcs AAA alkaline batteries)
|
|
|
|
BLE standard
|
4.0 BLE for BL04; WIFI for WF04
|
|
|
|
Support phone system
|
Android 4.3/IOS 7.0 above
|
|
|
|
Static current
|
≤55µA
|
|
|
|
Working current
|
>250 mA
|
|
|
|
Operating temperature
|
-10 ~ 60℃
|
|
|
|
Operating humidity
|
20 ~ 93%RH
|
|
|
|
Opening time
|
around 1.5 seconds
|
|
|
|
FAR
|
<0.001%
|
|
|
|
FRR
|
<1.0%
|
|
|
|
Standard Functions
|
Fingerprint/IC card/Password/Keys
|
|
|
|
Optional Functions
|
WIFI Tuya APP; TTLock BLE, WIFI gateway for TTLock
|
|
|
|
Fingerprint capacity
|
100pcs
|
|
|
|
M1 card capacity
|
100 pcs
|
|
|
|
Password Capacity
|
100pcs (Standalone no app)
|
|
|
|
TTLock Password Types
|
One-time password; Timed password; Permanent password; Cyclic password; Customize Password (150pcs)
|
|
|
|
Tuya Password Types
|
Online Temporary Code; Offline Temporary Code; One Time Code (Valid for 6 hours,can only be used once)
|
|
|
What you can do with our TTLock smart phone app
WIFI Gateway Optional for TTLock BLE Lock
What can you do with our Tuya smart phone app
