Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
Name:
-
Cut to length line
-
Model:
-
T44Q-6*1600
-
Usage:
-
Sheet metal decoiling and cutting
-
Applicable material:
-
Carbon steel / Stainless steel
-
Coil weight:
-
Max 25T
-
Material thickness:
-
3-6 mm
-
Coil width:
-
Max 1600mm
-
Coil diameter:
-
800-1800mm
-
Weight:
-
15800 KG
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TEWEI
-
Weight (KG):
-
15800
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
Name:
-
Cut to length line
-
Model:
-
T44Q-6*1600
-
Usage:
-
Sheet metal decoiling and cutting
-
Applicable material:
-
Carbon steel / Stainless steel
-
Coil weight:
-
Max 25T
-
Material thickness:
-
3-6 mm
-
Coil width:
-
Max 1600mm
-
Coil diameter:
-
800-1800mm
-
Weight:
-
15800 KG
Product Description

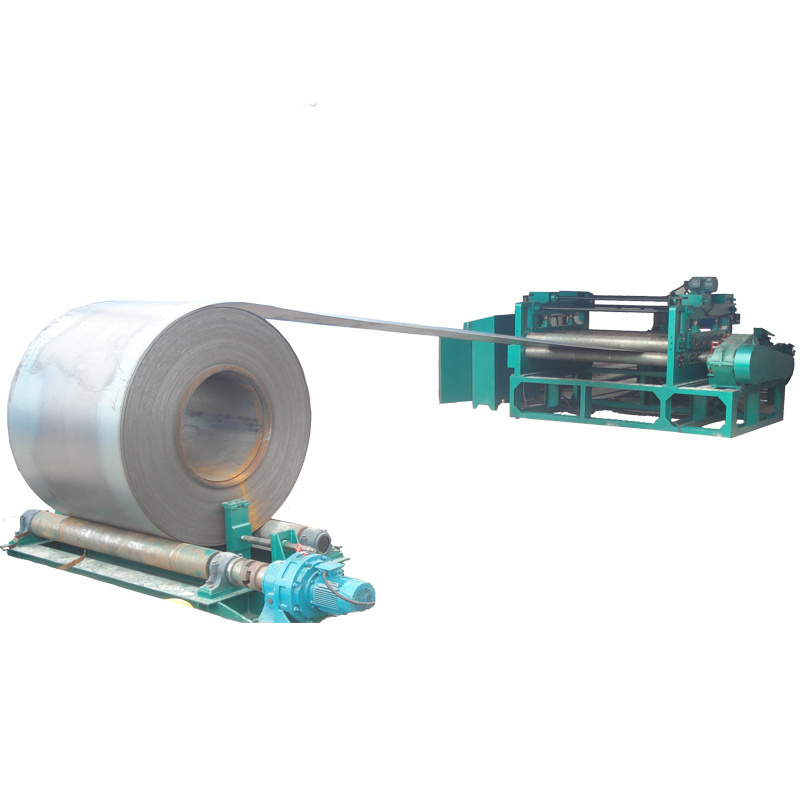

Equipment Combination.
1).Decoiler---2).Side Guiding Unit---3).Leveling Machine---4).Cutting Machine---5).Stack Table---6).Electric System
1).Decoiler---2).Side Guiding Unit---3).Leveling Machine---4).Cutting Machine---5).Stack Table---6).Electric System
Equipment Structure And Function:
(1). Uncoiler: Used To Support The Coil , Bearing 30 Tons. By The Support Shaft, Frame And Other Components. Sent To Board The First Artificial Leveling Machine, Leveling Machine Driven By The Coil To Start.
(2). Side Guiding: Sheet To Prevent Run-Time Deviation, Both Sides Of The Sheet Width Direction With Vertical Guide Rollers, Guide Roller Frame Fixed To The Respective Sliding Seat, Through The Hand Wheel By The Screw-Nut Fushi Slide In The Lead Column Along The Width Direction, To Accommodate Different Width .
(3). 11 Rollers Leveler: Pinch Steel And Steel Plate For Correction. From The Base, Frame, Sliding Seat Rolls, Leveler Rolls 11 ( Under 5 On 6 ) , Motor And Other Components To Enhance The Pressure Adjusting Mechanism . By The Motor Drive Gear Reducer, So That The Next Row Of Rollers Are Turning.
Adapt To The 3-6mm Thickness, 1600mm Width. Upper Straightening Rolls (5) Electric Lift, Pressure.
(4). Cutting: Down To Size After Shear. Mechanical Shears.
(5). Materials Sets: Carry On The Plates After Shearing
(6). Electric System: System Includes Console, Cabinet.
|
1
|
Coil Materials
|
Hot Rolled Plate Q235-A (Account As The Strength Of Materials)
|
|
2
|
Coil Thickness
|
3-6MM
|
|
3
|
Coil Width
|
800-1600MM
|
|
4
|
Coil Weight
|
≤25T
|
|
Unit Parameter
|
|
|
||
|
|
|
|
||
|
1
|
Leveling Speed
|
~8m/MIN
|
||
|
2
|
Leveling Accuracy
|
2MM/M (Related With Original Shape)
|
||
|
3
|
Scale Length Tolerance
|
±5MM
|
||
|
4
|
Main Motor Power
|
22KW
|
||
|
5
|
Unit Area
|
(L×W)About 24M×5.5M
|
||
|
6
|
Unit Working Direction
|
(Face To Console) From Right To Left
|
||
Recommend Products
|
SN
|
Name
|
|
Note
|
|
|
1
|
Coil Thickness
|
|
3~6MM
|
|
|
2
|
Max Processed Width
|
|
1600MM
|
|
|
3
|
Materials
|
|
Q235-A ΣB≤450MPA
|
|
|
4
|
Coil Weight
|
|
≤25000KG
|
|
|
5
|
Coil Diameters
|
|
Ø800~Ø1800MM
|
|
|
6
|
Plate Open Speed
|
|
125MM/S
|
|
|
7
|
Motor
|
Model
|
Y200l2-6
|
|
|
|
|
Power
|
22KW
|
|
|
|
|
Rev.
|
960R/MIN
|
|
|
8
|
Leveling Accuracy
|
|
≥2MM/M²
|
|
|
9
|
Machine Weight
|
|
15800KG
|
|
Product Paramenters
