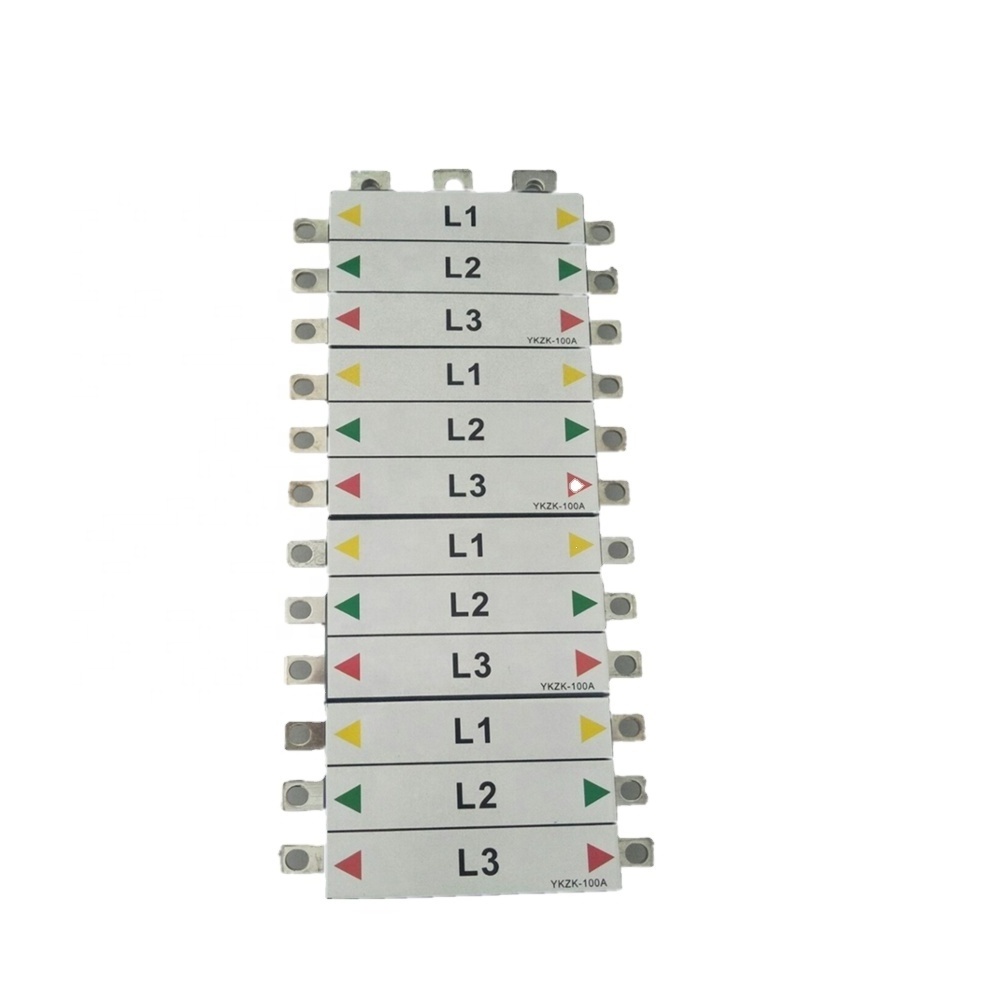

MCCB BUSBAR Pan Assembly and 400A bus bar MCPD for distribution box

MCCB BUSBAR Pan Assembly and 400A bus bar MCPD for distribution box

FOB Reference Price: Get Latest Price

≥500 Pieces

US $15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Pure Copper

Certificate:: CE ISO9001

Poles:: 3P-24P

Rated voltage:: 690V

Rated Current:: 400A

Product name:: MCCB BUSBAR Pan Assembly and 400A bus bar MCPD for distribution box

Brand:: CNZQ

Warranty:: 2 Years

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: CNZQ

Model Number:: BFP3

Material:: Pure Copper

Certificate:: CE ISO9001

Poles:: 3P-24P

Rated voltage:: 690V

Rated Current:: 400A

Product name:: MCCB BUSBAR Pan Assembly and 400A bus bar MCPD for distribution box

Brand:: CNZQ

Warranty:: 2 Years

Product Description

MCCB BUSBAR Pan Assembly and 400A bus bar MCPD for distribution box

Model	Incoming Current	Out Going Current	Outgoing Switch Quantity
SP-400125-4W	400A	125A	4 PCS MCCB
SP-400125-6W	400A	125A	6 PCS MCCB
SP-400125-8W	400A	125A	8 PCS MCCB
SP-400125-10W	400A	125A	10 PCS MCCB
SP-400125-12W	400A	125A	12 PCS MCCB
SP-400125-14W	400A	125A	14 PCS MCCB
SP-400125-16W	400A	125A	16 PCS MCCB
SP-400225-4W	400A	225A	4 PCS MCCB
SP-400225-6W	400A	225A	6 PCS MCCB
SP-400225-8W	400A	225A	8 PCS MCCB
SP-400225-10W	400A	225A	10 PCS MCCB
SP-400225-12W	400A	225A	12 PCS MCCB
SP-400225-14W	400A	225A	14 PCS MCCB
SP-400M-W	400A	125A/225A	6+2 PCS MCCB
SP-400M-W	400A	125A/225A	8+2 PCS MCCB
SP-400M-W	400A	125A/225A	10+2 PCS MCCB
SP-400M-W	400A	125A/225A	2+4 PCS MCCB
SP-400M-W	400A	125A/225A	4+4 PCS MCCB
SP-400M-W	400A	125A/225A	6+4 PCS MCCB
SP-400M-W	400A	125A/225A	4+6 PCS MCCB
SP-400M-W	400A	125A/225A	8+4 PCS MCCB
SP-400M-W	400A	125A/225A	2+6 PCS MCCB
SP-400M-W	400A	125A/225A	2+8 PCS MCCB
SP-400M-W	400A	125A/225A	2+10 PCS MCCB
SP-400M-W	400A	125A/225A	4+8 PCS MCCB
SP-10063-4W	125A	63A	4 PCS MCCB
SP-10063-6W	125A	63A	6 PCS MCCB
SP-10063-8W	125A	63A	8 PCS MCCB
SP-10063-10W	125A	63A	10 PCS MCCB
SP-10063-12W	125A	63A	12 PCS MCCB
SP-10063-14W	125A	63A	14 PCS MCCB
SP-10063-16W	125A	63A	16 PCS MCCB

In electrical systems subject to the installation requirements stipulated in DIN VDE 0100 or IEC 60204-1 / EN 60204-1/ VDE 0113-1 & IEC 60439, neutral, protective earth or phase conductors are often connected to central bus bars. This requires clear labeling of the conductor or the terminal block to the corresponding circuit.

The connection terminal blocks fulfill these conditions in two ways:

- By marking each terminal block individually

- By their blue, green-yellow or black colored housings.

Electric Safety

The inner case made of flame-retardant materials insulation Bus-Bar location, so there is no risk of electrical accidents.

Superior Workability

Bus-Bar signing this tedious task distributor, you can work easily without need to modular MCPD.

Easy to install

By using complex and costly and time-MCPD is a quick and easy installation it does not require more than two busbars consuming production process possible.

Diverse applicability

Even in the same product configuration changes easily in accordance with the appropriate circuit construction site conditions, it can be configured.

First installation

MCPD in place using a distribution panel installation is needed urgently, you can install an emergency.

Quick Installation Guide

Standardization

Unlike complexity by using a modular and conventional power distribution PAN ASSEMBLY it is lacking consistency, modularity and standardized / normalized distribution panel production is possible.

Cost savings

It can simplify and reduce the cost of production by using low power distribution unit of power distribution PAN ASSEMBLY manufacturing process.

Miniaturization / maturity

Can reduce the overall size distribution board as the circuit configuration intensive distribution panel, you can increase the completeness of the work in an intuitive configuration.

Compatibility / adaptability

The connection to the circuit breaker assembly can be easily applied in a variety of formats and structures in the panel, including countries as diverse as connectors, circuit breakers can be connected with almost all of the outside is possible by any circuit configuration.

Chinese copper material designation:

Name	Code	Cu+Ag	P	Ag	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
No. 1 Cu	T1	99.95	0.001	-	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
No. 2 Cu	T2	99.9	-	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
No. 3 Cu	T3	99.7	-	-	0.002	-	-	-	-

Material designation in the world

China	German		Europe		INTERNATIONAL	USA	Japan
GB	DIN		EN		ISO	UNS	JIS
TU2	OF-Cu	2.004	Cu-OFE	CW009A	Cu-OF	C10100	C1011
-	SE-Cu	2.007	Cu-HCP	CW021A	-	C10300	-
-	SE-Cu	2.007	Cu-PHC	CW020A	-	C10300	-
T2	E-Cu58	2.0065	Cu-ETP	CW004A	Cu-ETP	C11000	C1100
