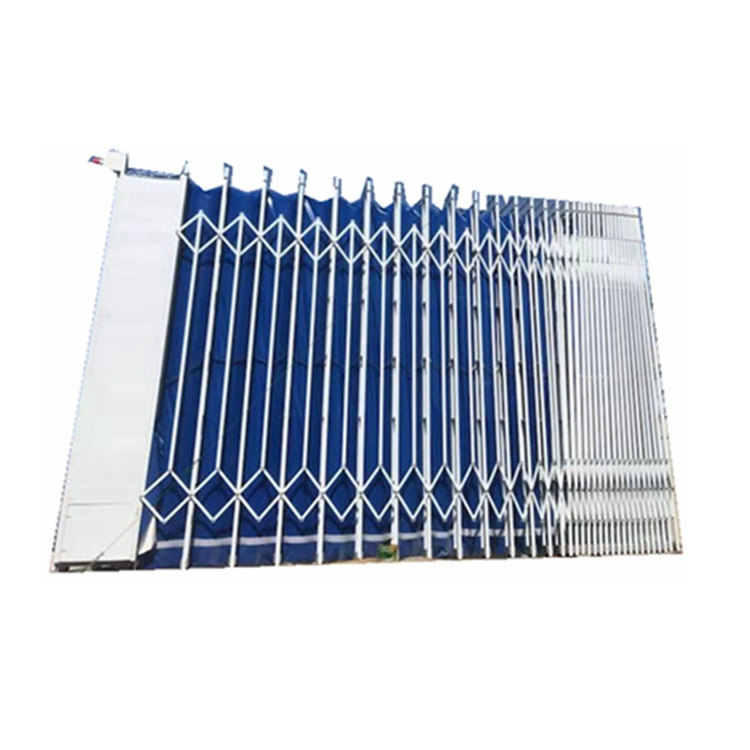

2019 Cover Little Area Folded Spray Booth / Mobile Spray Booth for Large Product and Heavy Product

Inside Size :(mm)

(L*W*H)

8000×4500×3500

Total Power

12kw

Cabin System

Main and

assistant carriage

Primary and secondary and post-holder carriage is mainly composed of 80*80mm square steel pipe, welded into steel frame structure on both sides of the main carriage, there is a removable gear motor.

back fixation

Linkage

Consist of 40 * 60 square steel tube and bushings, shaft pin and other components.

Fire-proof

soft curtain

From anti-flammable soft cloth curtain, transparent PVC soft curtain on both sides of the chamber body for observing interior operating conditions at any time during the day.

Guide rail

and pulleys

4 sets of rails, made by 12kg rail track steel underground.

Steel wheel welded with the primary and secondary carriage, can slide freely on the track.

Air circulation System

Exhaust fan

Putting the back of the booth outside, have air valves for adjusting the air pressure.

Quantity

1 sets

Power

11 kw

Pressure

1767-1399pa

Air flow

27375-50712m ³ /h

The frame for exhaust fan is made by square pipe and galvanized steel, and soft connection, the exhaust air duct is made by 1mm zinc plates.

Air Purification System

Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. It’s Filtering Rate Reaches 98%.

Light System

Two rows of roof lights on the ceiling, 12 sets of the carriage.

E-Control System

Spray & Baking Switch, Light Switch, Emergency Stop, Alarm, timer, etc

Environmental System

Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
