Quick Details
-
Lamp Body Material:
-
Aluminum
-
Lamp Luminous Flux(lm):
-
950
-
Input Voltage(V):
-
DC 4.2V
-
Lamp Luminous Efficiency(lm/w):
-
950LM
-
Working Time (hours):
-
0.5lm 82h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MANKER
-
Model Number:
-
MC13
-
Waterproof:
-
IP68 standard waterproof (1.5 meters submersible)
-
Specification(LxD):
-
90.75mm(3.57") length x 41.7mm(1.64") head dia. x 25.8mm(1.01")
-
LED:
-
W,G,R,Y,B
-
Ranges:
-
760m~450m
-
Weight:
-
108.6g(3.83 oz) w/o battery, 136.7g(4.82 oz) w/ battery
Quick Details
-
Battery Type:
-
18350 Li-ion x1
-
Usage:
-
Emergency
-
Power Source:
-
rechargeable battery
-
Lamp Body Material:
-
Aluminum
-
Lamp Luminous Flux(lm):
-
950
-
Input Voltage(V):
-
DC 4.2V
-
Lamp Luminous Efficiency(lm/w):
-
950LM
-
Working Time (hours):
-
0.5lm 82h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MANKER
-
Model Number:
-
MC13
-
Waterproof:
-
IP68 standard waterproof (1.5 meters submersible)
-
Specification(LxD):
-
90.75mm(3.57") length x 41.7mm(1.64") head dia. x 25.8mm(1.01")
-
LED:
-
W,G,R,Y,B
-
Ranges:
-
760m~450m
-
Weight:
-
108.6g(3.83 oz) w/o battery, 136.7g(4.82 oz) w/ battery

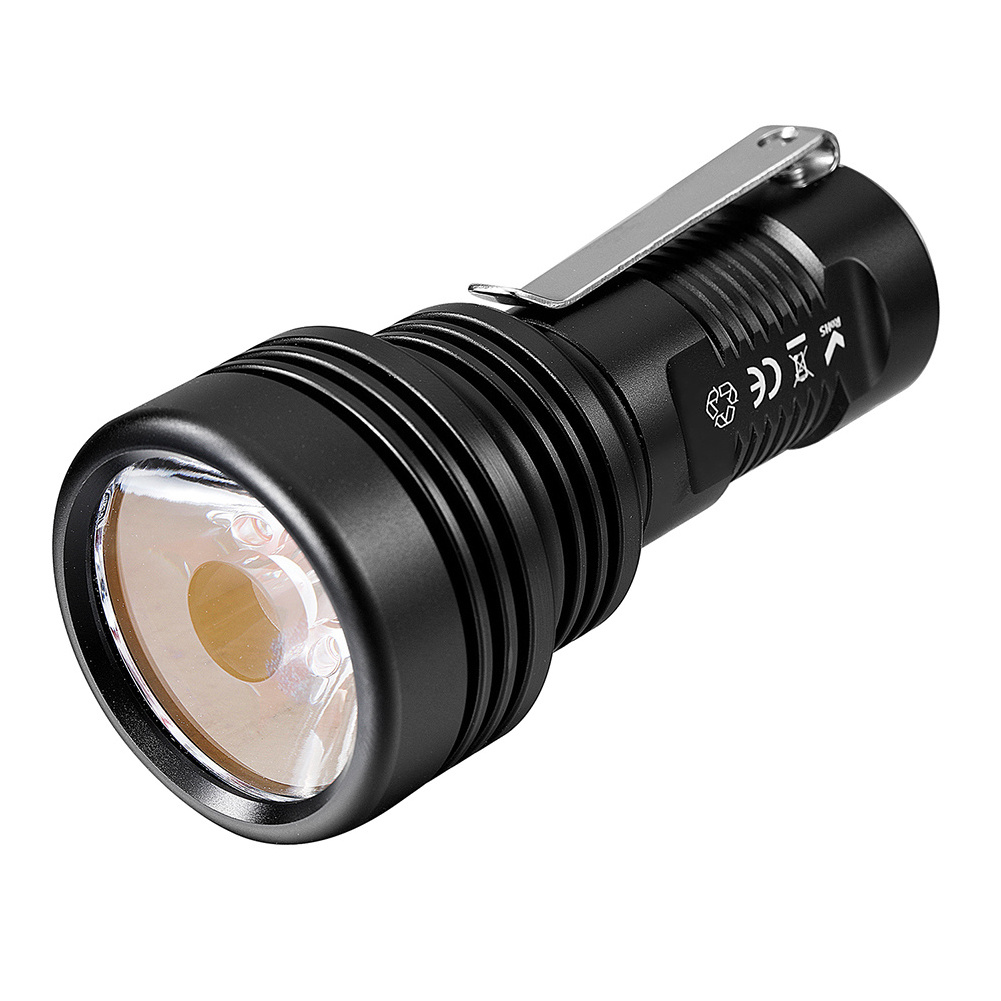

Manker MC13 Ultra-Throw Flashlight - Multi LED Option + Type-C USB Rechargeable 18350 Battery(10A) - Mankerlight
Features
- LED Option1: OSRAM KW CULNM1.TG LED (white light)
Max. 950 lumens output, Max. 760meters beam distance
- LED Option2: OSRAM KP CSLNM1.F1 LED (
green
light)
Max. 1200 lumens output, Max. 858meters beam distance
- LED Option3: OSRAM KR CSLNM1.23 LED (
red
light)
Max. 260 lumens output, Max. 450meters beam distance
- LED Option4: OSRAM KY CSLNM1.FY LED (
Yellow
light)
Max. 350 lumens output, Max. 506meters beam distance
- LED Option5: OSRAM KB CSLNM1.14 LED (
blue
light)
Max. 115 lumens output, Max. 640meters beam distance
- Powered by 1x 3.7V 1100mAh high drain protected 18350 li-ion battery with Type-C USB port (Included)
- Working Voltage: 2.8-4.3V
- Driver: Most efficiency constant current circuit (Non-PWM)
- With advanced intelligent temperature regulation module,MC13 regulates its output and adapts to the ambient environment,maintaining optimal performance
- Anti-reverse battery protection & overdischarge protection
- Pocket Size, Compact, lightweight
- One-handed, one-button for easy and fast operation
- Lockout mode prevents accidental activation
- Moonlight Mode: Multiple user selectable levels
- Low battery voltage indicated & battery charging indicated
- Material: aircraft-grade aluminum body
stainless steel button cap
- Surface Treatment: Premium type-III hard-anodized anti-abrasive finish
- Clip: Stainless steel deep carry clip
- Lens: Toughened ultra-clear glass lens with anti-reflective coating + high temperature resistant optics TIR Lens
- Tail stand capability
- IPX-8 waterproof standard (2 meters under water)
- Impact resistance: 1 meters
- Size: 90.75mm(3.57") length x 41.7mm(1.64") head dia. x 25.8mm(1.01") body dia.
- Weight: 108.6g(3.83 oz) w/o battery, 136.7g(4.82 oz) w/ battery
- Accessory: 18350 li-ion battery x1, type-C USB charging cable x1, lanyard x1, spare o-ring x1, Manual x1
Output/runtime (White light)
Moonlight: 0.5 lumens 82 hours
Low 120 lumens 4 hours 05 minutes
Middle 240 lumens 1 hours 47 minutes
High 450 lumens 45 minutes
Turbo 950 lumens 35 minutes
Strobe 950 lumens -
Peak beam intensity: 144,000 cd
Maximum beam distance: 760 meters
Impact resistance: 1 meters
Waterproof standard: IPX-8,2M
Output/runtime (
Green light
)
Moonlight: 0.5 lumens 82 hours
Low 45 lumens 11 hours
Middle 190 lumens 3 hours 11 minutes
High 520 lumens 53 minutes
Turbo 1200 lumens 47 minutes
Strobe 1200 lumens -
Peak beam intensity: 184,041 cd
Maximum beam distance: 858 meters
Impact resistance: 1 meters
Waterproof standard: IPX-8,2M
Output/runtime (
Red light
)
Moonlight: 0.5 lumens 82 hours
Low 60 lumens 25 hours
Middle 90 lumens 2 hours 03 minutes
High 152 lumens 57 minutes
Turbo 260 lumens 53 minutes
Strobe 260 lumens -
Peak beam intensity: 50,625 cd
Maximum beam distance: 450 meters
Impact resistance: 1 meters
Waterproof standard: IPX-8,2M
Output/runtime (
Yellow light
)
Moonlight: 0.5 lumens 82 hours
Low 50 lumens 14 hours
Middle 120 lumens 3 hours
High 240 lumens 57 minutes
Turbo 350 lumens 54 minutes
Strobe 350 lumens -
Peak beam intensity: 64,000 cd
Maximum beam distance: 506 meters
Impact resistance: 1 meters
Waterproof standard: IPX-8,2M
Output/runtime (
Blue light
)
Moonlight: 0.5 lumens 82 hours
Low 10 lumens 11 hours 30 minutes
Middle 23 lumens 2 hours 35 minutes
High 50 lumens 57 minutes
Turbo 115 lumens 50 minutes
Strobe 115 lumens -
Peak beam intensity: 102,400 cd
Maximum beam distance: 640 meters
Impact resistance: 1 meters
Waterproof standard: IPX-8,2M
Technical Data
| Brand / Model | MANKER MC13 |
|---|---|
| LED | w,r,g,b,g,y |
| Lumens | 115-1200 |
| Beam intensity | 450-760 METERS |
| Battery config. | 1*18350 |
| Material | aluminum |
| Waterproof | IPX8 |
Operating Instructions
Remark:
1. Memory function stores the general mode last used (Low or Medium or High).
2. While OFF, 4 quick clicks will lock-out the flashlight (4 flickers show successful lock-out).
While locked-out, 4 quick clicks again will unlock.
3. Low battery indicator:
Voltage <3.2V, the brightness level downshifts to Moonlight.
Voltage = 2.9V, turn off.
(Ratio Error: ± 0.1V,while using different battery)
4. Battery charging indicator:
Solid red light = battery charging,
Solid green light = battery full charged.
Battery option
***Kindly note: This item has included 1x Manker high drain 18350 battery with Type-C USB charging port.***
***Kindly note: If you select 'yes' under item option ' with 18650 tube ', you can also use 18650 battery in your hand. We highly recommend you to buy high quality high discharge 18650 battery***
