The stirring paddle can be removed according to customer requirements.
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
1kg
-
Weight (KG):
-
30 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
110V220V230V380V400V415V440V500V600V50HZ60HZ
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
0.25 kW
-
Product name:
-
Mini powder Mixer
-
MOC:
-
304ss
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO CE SGS
Quick Details
-
Barrel Volume (L):
-
3
-
Max. Loading Volume (L):
-
1 L
-
Range of Spindle Speed(r.p.m):
-
1 - 36 r.p.m
-
Max. Loading Capacity:
-
1kg
-
Weight (KG):
-
30 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
110V220V230V380V400V415V440V500V600V50HZ60HZ
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
0.25 kW
-
Product name:
-
Mini powder Mixer
-
MOC:
-
304ss
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO CE SGS
Product Description

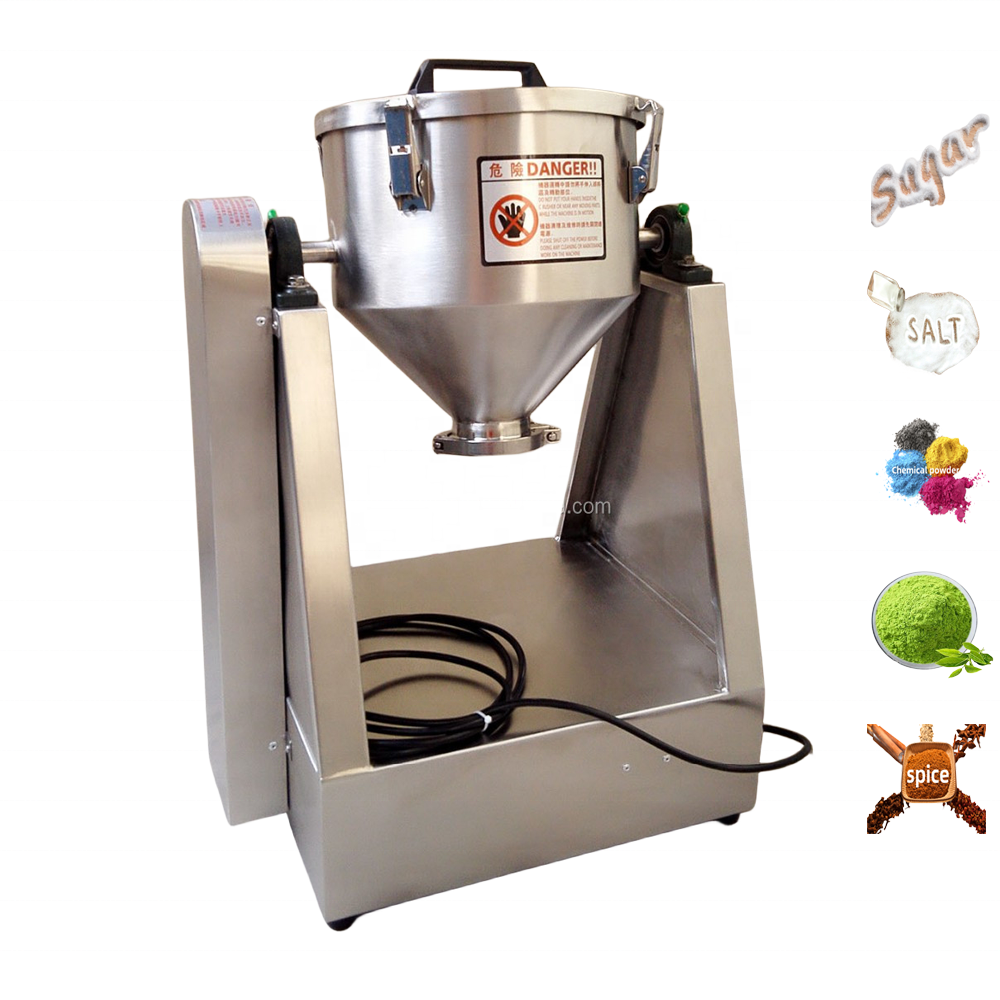

DZJX Hot Sale 1L 10L 20L 50L 100L 200L 1000L Small Or Large Dry Powder Granule Rotating Drum Mixer Double Cone Mixing Machine
This machine is standard timing shutdown, speed adjustable
0-36R/M
,sorting purchase timed reverse mixing, can realize positive rotation after a few laps in a few laps so agreed to reverse the mixing time of shutdown, this function than the single direction of high mixing efficiency several times, Widely used in
food, magnetic powder, ceramics, chemical, pharmaceutical, feed and other industries
, also suitable for the
Laboratory
of precision or mixed materials need efficient mixing.
The mixing barrel of the machine has unique structure, uniform mixing , high efficiency and non accumulation. The model has the advantages of simple structure and easy operation . The outer surface and material contact parts are made of high quality stainless steel , with beautiful appearance, convenient maintenance and cleanness.
The mixer inner walls are smooth
without any dead corner
. The tank is provided with unique four-direction mixing movement track.
With mixing evenness of 99%
, high mixing precision and high speed, ideal mixing effect is achieved.
Detailed Images
PRODUCT MATERIAL
The appearance and material contact parts are made of high-quality 304 stainless steel,with beautiful appearance ,convenient maintenance and easy cleaning.
TIMING SYSTEM
The mixer has a timed shutdown system, and the speed can be adjusted between 0~36 r/min.After adding the materials to the mixer, the materials are evenly mixed together under impact.
HIGH PRECISION
The mixer has high mixing precision and speed, and the materials uniformity can reach 99%,which is an ideal mixing device.
The mixing bin can rotate 360 degrees. Mixing is more efficient and uniform.
Products Show
Laboratory and small drum mixer（1L-155L）
Total volume: 3L-155L, loading volume: 1L-50L, mixing volume: 1kg-50kg.
It is s
uitable for laboratories in industries such as food, pharmaceuticals, chemicals, and minerals, as well as for mixing small capacity powders, particles, and small materials.
Medium and large drum mixer (100L-6000L)
It is suitable for the mixing of powders, particles, and small materials in industries such as medium-sized and large food, pharmaceutical, chemical, and mineral industries.
Technical Parameter
|
Model
|
Volume(L)
|
Effective volume(L)
|
Max load(kg)
|
Power(w)
|
weight(kg)
|
Overall size(mm)
|
Speed(r/min)
|
|||||||
|
DZ-1
|
3
|
1
|
1
|
20
|
9.5
|
350*250*480
|
0~36
|
|||||||
|
DZ-2
|
6
|
2
|
2
|
40
|
13
|
430*300*520
|
|
|||||||
|
DZ-3
|
9
|
3
|
3
|
40
|
17
|
440*300*580
|
|
|||||||
|
DZ-5
|
15
|
5
|
5
|
60
|
19
|
480*380*680
|
|
|||||||
|
DZ-10
|
32
|
10
|
10
|
120
|
36
|
600*420*860
|
|
|||||||
|
DZ-15
|
46
|
15
|
15
|
120
|
46
|
600*600*1050
|
|
|||||||
|
DZ-20
|
62
|
20
|
20
|
250
|
48
|
580*650*1100
|
|
|||||||
|
DZ-50
|
155
|
50
|
50
|
550
|
88
|
860*1000*1450
|
|
|||||||
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Capacity(kg/batch)
|
Mixing time(min)
|
Cylinder speed(r/min)
|
Motor power(kw)
|
Weight(kg)
|
Overall dimensions(mm)
|
||||||
|
DZ500
|
100
|
6-10
|
12
|
1.5
|
550
|
1680*750*1850
|
||||||
|
DZ1000
|
200
|
6-10
|
12
|
4
|
810
|
1765*1500*2370
|
||||||
|
DZ2000
|
400
|
6-10
|
10
|
7.5
|
1500
|
3160*1900*3500
|
||||||
|
DZ4000
|
800
|
6-10
|
10
|
18.5
|
3200
|
4750*2500*3680
|
||||||
|
|
|
|
|
|
|
|||||||
Application range
The machine is suitable for mixing dry, powdery, granular materials and irregular materials in chemical,
pharmaceutical,
food products.
