-Support Mouse operating；
-Support reversing aid setting ；
-Proprietary SD card bad track detection technology to ensure video continuity and extend SD lifespan；
-Built-in super capacitor to avoid abnormal power loss data loss and disk damage；
-Support intelligent power management identification, low power automatic shutdown, flameout low power consumption；
-Various protection circuits such as undervoltage, short circuit, and reverse connection are applicable to various models.
- Product Details
- {{item.text}}
Quick Details
-
Function:
-
Waterproof, NIGHT VISION, Remote Control, FULL COLOR, G-Sensor, Motion Detection
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZX/OEM
-
Model Number:
-

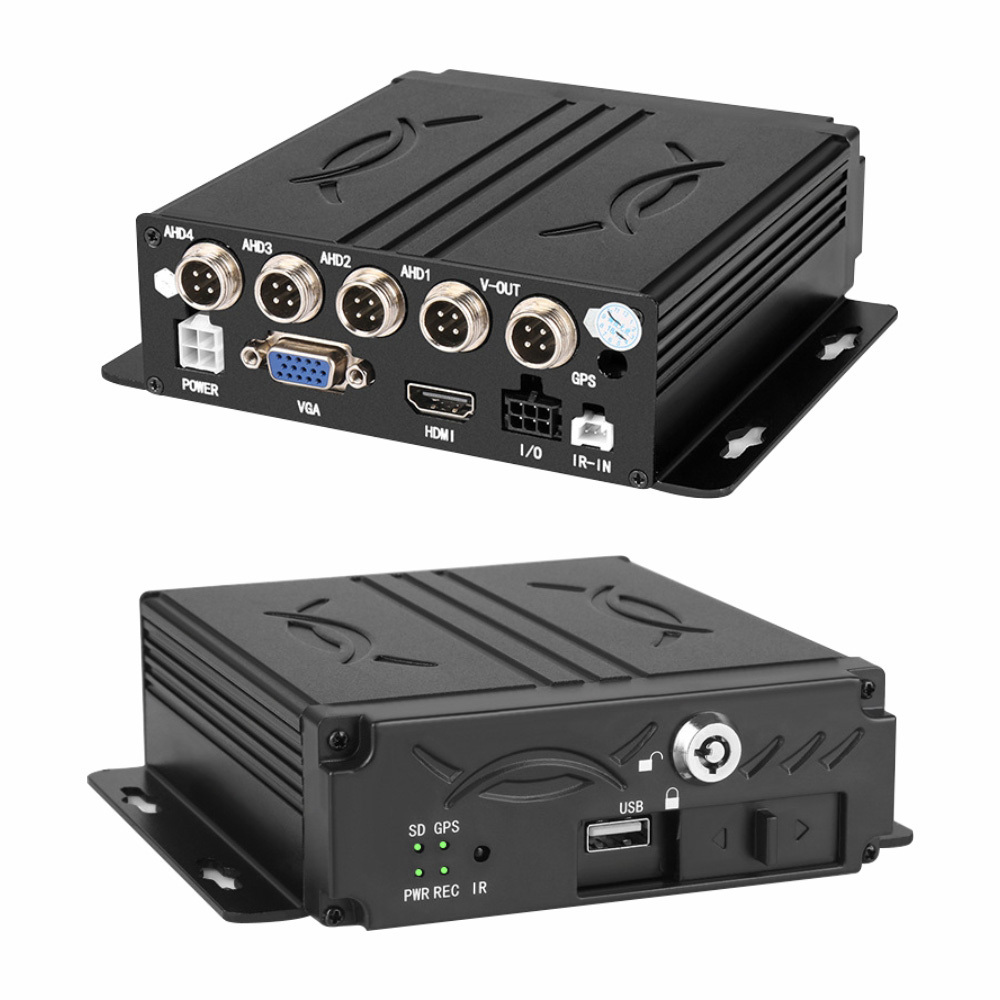

MDVR801
-
Product Name:
-
1080P Mobile DVR
-
Main Processor:
-
Hi3520DV300
-
Interface:
-
HD-MI /VGA + Aviation
-
Password:
-
Users Password/ Administrator Password
-
Language:
-
Chinese/English/support all language
-
Video Standard:
-
PAL/NTSC
-
Power Supply:
-
12-36V
-
Storage:
-
Support 2pc SD Card & 2TB Hard Disk (maximum)
-
Keyword:
-
Security Surveillance System
Quick Details
-
Car Fitment:
-
Universal
-
Angle:
-
130°
-
Resolution:
-
1080P
-
Function:
-
Waterproof, NIGHT VISION, Remote Control, FULL COLOR, G-Sensor, Motion Detection
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZX/OEM
-
Model Number:
-
MDVR801
-
Product Name:
-
1080P Mobile DVR
-
Main Processor:
-
Hi3520DV300
-
Interface:
-
HD-MI /VGA + Aviation
-
Password:
-
Users Password/ Administrator Password
-
Language:
-
Chinese/English/support all language
-
Video Standard:
-
PAL/NTSC
-
Power Supply:
-
12-36V
-
Storage:
-
Support 2pc SD Card & 2TB Hard Disk (maximum)
-
Keyword:
-
Security Surveillance System
Product Description
|
Power
|
Voltage Input
|
DC12-36V
|
|
|
Voltage Output
|
DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A)
|
|
System
|
Main Processor
|
Hi3520DV300
|
|
|
Operating system
|
Embedded Linux OS
|
|
|
Language
|
Chinese/English/support all language
|
|
|
OSD
|
Graphical User interface OSD menu
|
|
|
Password
|
Users Password/ Administrator Password
|
|
Video
|
Video input
|
4CH AHD digital signal or Analog Video Inputs
|
|
|
Video output
|
1CH Video Inputs (1.0Vp-p/ 75 Ohms),
|
|
|
|
1CH VGA output
|
|
|
Preview
|
1 CH/ 4 CH Preview.
|
|
|
Recording Ratio
|
PAL: 25 Frame/s; NTSC: 30 Frame/s
|
|
|
Image Compression
|
H.264 or H.265 Main profile/MJPEG
|
|
|
Video Standard
|
PAL/NTSC
|
|
|
Image Resolution
|
1080P/1080N/720P/960H/D1/CIF
|
|
|
Playback quality
|
1080P/1080N/720P/960H/D1/CIF
|
|
Audio
|
Audio input
|
4CH/6CH
|
|
|
Audio output
|
1-CH
|
|
|
Audio Bit Rate
|
8KB/S
|
|
|
Recording mode
|
Audio & Video sync.
|
|
Image processing& Storage
|
Video Quality
|
1080P/720P/960H/D1/CIF each channel;
|
|
|
|
Highest Video Quality: 4CH Full 1080P
|
|
|
Bit Rate
|
1080P: 2048Kbps~6144Kbps
|
|
|
|
D1: 512Kbps~1536Kbps
|
|
|
|
6 levels optional.
|
|
|
Storage
|
2TB Hard Disk & 128GB SD Card (maximum)
|
|
Alarm
|
Alarm input
|
4 alarm inputs
|
|
|
Alarm output
|
1 alarm output
|
|
Firmware Upgrading
|
Upgrading mode
|
Manual/Automatically/Remote/Emergency Recovery
|
|
|
Upgrading method
|
USB disk/Wireless network/SD card
|
|
Interface
|
RJ45 Interface
|
No
|
|
|
AV input
|
4/6 ch Aviation interface
|
|
|
AV output
|
1ch VGA video output, 1ch Aviation AV output
|
|
|
Ignition input
|
1 ACC signal
|
|
|
UART
|
1 LVTTL Level
|
|
|
USB 2.0 Port
|
Yes
|
|
|
RS232 Interface
|
1-RS232 interface
|
|
Wireless
|
3G/4G
|
Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD
|
|
|
|
LTE/TDD LTE
|
|
|
Wi-Fi
|
Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz
|
|
|
External GPS Module
|
(Optional) ,Support detecting antenna Plug in/Unplug/Short
|
|
Operation Environment
|
Temperature
|
‘-20°~70°
|
|
|
Humidity
|
10% to 95%
|
Related Products
Packing And Shipping
Company Introduction
We focuse on product development specialized in the auto electronics industry about 8 years in China. Our products cover car monitor& camera , MDVR, air pump&purifier, new models released constantly with innovation to meet various demands in the global market.
Our Services & Strength
- Focused on manufacturing auto electronics more than 9 years.
- Own logistics support team(Short shipping time &Low shipping costs).
- More than 500 available designs.
- IP67/IP68/IP69K waterproof (for cameras).
Factory Show
Exhibition
certificate show
Buyer Reviews
FAQ
Q1. How about your delivery time?
A: Usually, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2. How about the shipping?
A: We have our own logistics support team, which can provide door-to-door dedicated route service, international express, ocean shipping, air transport, land transport, etc., with faster timeliness and cheaper freight..
Q3. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. We can make OEM as your request when the order is up to MOQ.
Q4.
Can it be delivered to FBA amazon warehouse ?
A:
Yes, and we can print Amazon label and provide UPC code for you.
Q5. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q6. Why should I buy from you, not from other suppliers?
A: We are a manufacturer of car camera and car rearview monitor systems brand from Shenzhen, China. With more than 9 years of engineering experience. Our products could apply all kinds of vehicle monitors. All of our products have a 100% strictly QC test before delivery. Doing business with us will be a very pleasant experience.
