Quick Details
-
Power:
-
Standard
-
Voltage:
-
12V
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
veise
-
Model Number:
-
DF-3DH4-AHD
-
High-Definition Monitor:
-
MHD-771
-
Resolution:
-
1024(H) X 600(V)dot
-
Brightness(cd/m2):
-
600
-
Load dump:
-
DC24+174V(Td350mS) 5pulses
-
Video input:
-
Maximum support 2 channels CVBS / AHD720P /1080P video signal input
-
birdview camera:
-
CHD-805Z
-
Horizontal resolution:
-
1080P
-
Viewing angle:
-
Horizontal angle 210°
-
Waterproof rating:
-
IP69K
-
Working voltage:
-
DC12V±10% (powered by the display)
Quick Details
-
Car Fitment:
-
Yale Lift Truck, Universal, Yale
-
View Angle:
-
210°
-
Function:
-
Waterproof, NIGHT VIEW, 3D IMAGE, Split Screen, Parking Line, ADAS
-
Power:
-
Standard
-
Voltage:
-
12V
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
veise
-
Model Number:
-
DF-3DH4-AHD
-
High-Definition Monitor:
-
MHD-771
-
Resolution:
-
1024(H) X 600(V)dot
-
Brightness(cd/m2):
-
600
-
Load dump:
-
DC24+174V(Td350mS) 5pulses
-
Video input:
-
Maximum support 2 channels CVBS / AHD720P /1080P video signal input
-
birdview camera:
-
CHD-805Z
-
Horizontal resolution:
-
1080P
-
Viewing angle:
-
Horizontal angle 210°
-
Waterproof rating:
-
IP69K
-
Working voltage:
-
DC12V±10% (powered by the display)
Product Description

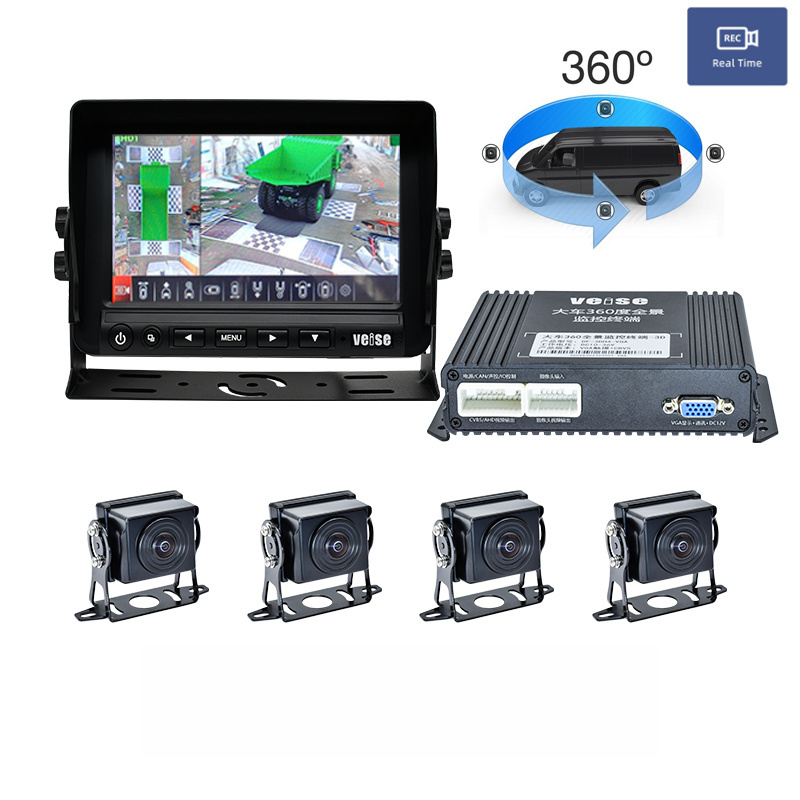

360 Degree Car Security Camera 3D Bird View System 4 Way Split Screen Car Reversing Aid 360 Camera
Features
Engineering machinery equipment vehicles, agricultural machinery equipment vehicles, municipal environmental sanitation sweepers, etc. have the characteristics of wide-body width and long shaft length of the vehicle body, and a high driving position. There is a large driving visual safety blind zone around the vehicle. A single camera and multi-picture rear-view system cannot meet the requirements of multiple monitoring areas. The 360 panoramic pedestrian and vehicle detection and early warning system is composed of four wide-angle starlight full-color cameras installed in the four directions of the vehicle, which synthesizes the panoramic overhead view around the vehicle through 360° AI visual algorithm. When there are pedestrians and other vehicles around the vehicle, the system's onboard display screen picture and sound and light alarm are linked for early warning, providing drivers with intuitive safety prompts, and making the vehicle's driving safer and more efficient.
Around View Monitor (AVM) System Mainframe
Engineering machinery equipment vehicles, agricultural machinery equipment vehicles, municipal environmental sanitation sweepers, etc. have the characteristics of wide-body width and long shaft length of the vehicle body, and a high driving position. There is a large driving visual safety blind zone around the vehicle. A single camera and multi-picture rear-view system cannot meet the requirements of multiple monitoring areas. The 360 panoramic pedestrian and vehicle detection and early warning system is composed of four wide-angle starlight full-color cameras installed in the four directions of the vehicle, which synthesizes the panoramic overhead view around the vehicle through 360° AI visual algorithm. When there are pedestrians and other vehicles around the vehicle, the system's onboard display screen picture and sound and light alarm are linked for early warning, providing drivers with intuitive safety prompts, and making the vehicle's driving safer and more efficient.
Around View Monitor (AVM) System Mainframe
Shoot images by multiple (generally four) super-wide cameras. Carry out distortion correction and stitching on the taken images by special algorithms, forming a system that shows the panoramic images around the object. Intellectual (automatic, manual) fast stitching. The steering signal automatically switches between 3D/2D images of the vehicle. Intellectual voice control 12 kinds of image monitor modes. Detect and warn the safety distance of the pedestrians and cars around the vehicle, achieving 360° non-blind collision protection.
When the speed of the car is lower than 25 kilometers per hour, the system automatically switches the warning picture, turns to the lane changing assist warning picture, and links to outdoor sound and light alarm.
Support the input of 4 AHD panoramic cameras and expand 2 monitoring cameras additionally. Support the input of 16 radar probes. Support the alarm function of setting the defense when the engine is turned off. Support the CAN bus communication protocol.
Support 4-channel AHD panoramic camera input, real-time recording, cyclic recording, and video playback (SD card + MSATA storage way).
7-inch HD IPS Monitor
automative-grade DSP, 1024RGB(H) X 600(V)dot resolution
DC8~32V wide range working voltage, independent power output, load dump pulse voltage protection, external reverse polarity protection for power supply. LED constant current and constant voltage protection avoids improper use and guarantees for shelf life.
Around View Camera
210° wide angle ,automative-grade DSP, 2 million HD pixel, IP69K waterproof rate, starlight full color, cold-resistant signal
output line
When the speed of the car is lower than 25 kilometers per hour, the system automatically switches the warning picture, turns to the lane changing assist warning picture, and links to outdoor sound and light alarm.
Support the input of 4 AHD panoramic cameras and expand 2 monitoring cameras additionally. Support the input of 16 radar probes. Support the alarm function of setting the defense when the engine is turned off. Support the CAN bus communication protocol.
Support 4-channel AHD panoramic camera input, real-time recording, cyclic recording, and video playback (SD card + MSATA storage way).
7-inch HD IPS Monitor
automative-grade DSP, 1024RGB(H) X 600(V)dot resolution
DC8~32V wide range working voltage, independent power output, load dump pulse voltage protection, external reverse polarity protection for power supply. LED constant current and constant voltage protection avoids improper use and guarantees for shelf life.
Around View Camera
210° wide angle ,automative-grade DSP, 2 million HD pixel, IP69K waterproof rate, starlight full color, cold-resistant signal
output line
|
monitor
|
model
|
MHD-779
|
||
|
|
screen
|
7-inch IPS screen
|
||
|
|
resolution
|
1024×RGB×600
|
||
|
|
brightness
|
600cd/m2
|
||
|
|
viewing angle
|
85/85/85/85（left/right/up/down）
|
||
|
|
signal input
|
support two-way AHD1080/720/CVBS video signal input
|
||
|
|
power input
|
DC11-32V/5W
|
||
|
|
|
|
||
|
|
working temperature
|
-20℃~+70℃
|
||
|
|
storage temperature
|
-30℃~+80℃
|
||
|
|
vibration/shock
|
GB∕T 2423.56-2018 standard (random 5G vibration)
|
||
|
|
bracket
|
U-shaped tinplate bracket
|
||
|
|
size
|
200*130*82mm（without support）
|
||
|
|
|
|
||
|
AVM+DVR
|
model
|
DF-3DH7AI-AHD
|
||
|
|
power consumption
|
10-30W
|
||
|
|
power supply protection
|
anti-surge and anti-reverse function, low-power protection, shor-circuit and overload protection
|
||
|
|
video input【optional】
|
AHD/HDMI/VGA
|
||
|
|
video input
|
four 1080P_AHD panoramic cameras input
|
||
|
|
warning function
|
BSD
|
||
|
|
video recording format
|
H.265
|
||
|
|
recording resolution
|
1920*1080
|
||
|
|
working temperature
|
-20℃~+70℃
|
||
|
|
image storage
|
SD卡8-512GB
|
||
|
|
vibration/shock
|
GB∕T 2423.56-2018 standard (random 5G vibration)
|
||
|
|
size (millimeter）
|
100*130*29（length*width*height)
|
||
|
|
weight
|
400g
|
||
|
|
|
|
||
|
panoramic camera
|
model
|
CHD-805Z
|
||
|
|
resolution
|
1080P
|
||
|
|
working temperature
|
-20℃~+60℃
|
||
|
|
waterproof rate
|
IP68
|
||
|
|
low illumination
|
0.01 Lux
|
||
|
|
vibration/shock
|
GB∕T 2423.56-2018 standard (random 5G vibration)
|
||
|
|
horizontal angle
|
210°
|
||
|
|
vertical angle
|
126°
|
||
|
|
voltage input
|
DC8-16V
|
||
Detailed Images
Our Company
R & D
Quality Control
The light intensity analyzer ensures that the output light intensity of LED warning light conforms to ECE R65;
The patented sealed pressure tester to ensure that the waterproof level of the camera and light conforms to IP69K;
