Quick Details
-
Application:
-
Building, Construction Fire protection
-
Design Style:
-
Others
-
Place of Origin:
-
China
-
Brand Name:
-
Fusil
-
Model Number:
-
ARG150, Fusil-ARG150
-
Type:
-
silica aerogel
-
Product Name:
-
aerogel granulat
-
Package:
-
According to requirement
-
Color:
-
White
-
Porosity:
-
>90%
-
Pore Diameter:
-
~20nm
-
Surface property:
-
Hydrophobic
-
Thermal conductivity:
-
0.016-0.021 W/kg
-
Bluk Density:
-
80-100 kg/m3
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Building, Construction Fire protection
-
Design Style:
-
Others
-
Place of Origin:
-
China
-
Brand Name:
-
Fusil
-
Model Number:
-
ARG150, Fusil-ARG150
-
Type:
-
silica aerogel
-
Product Name:
-
aerogel granulat
-
Package:
-
According to requirement
-
Color:
-
White
-
Porosity:
-
>90%
-
Pore Diameter:
-
~20nm
-
Surface property:
-
Hydrophobic
-
Thermal conductivity:
-
0.016-0.021 W/kg
-
Bluk Density:
-
80-100 kg/m3

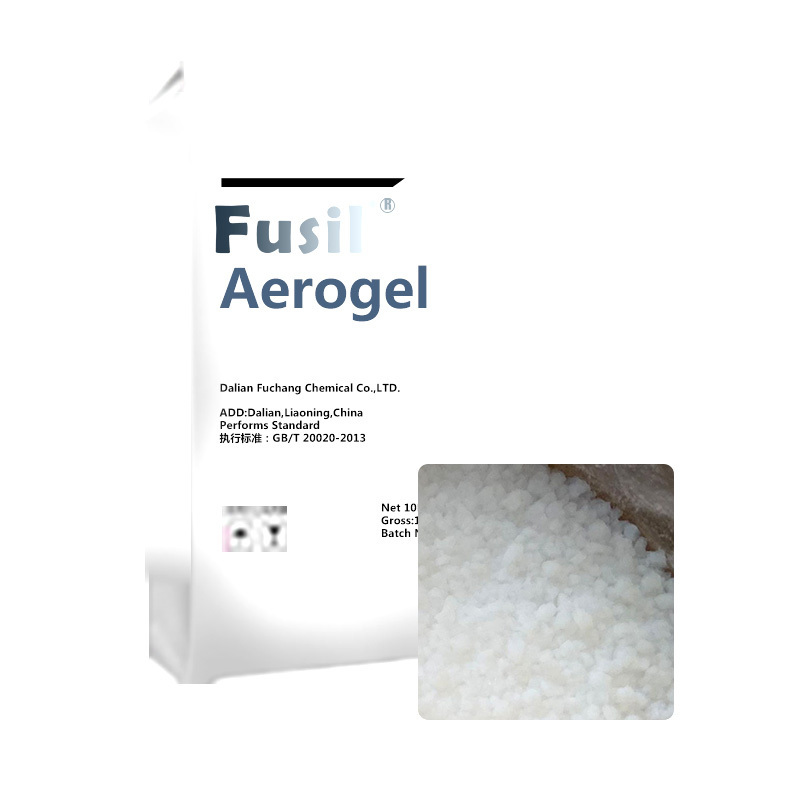

Hydrophobic Silica Aerogel Crystals Thermal Insulation Aerogel Granulat for Home Insulation
Products Description
Silica aerogel is also known as "blue smoke" or "solid smoke", which is currently known to have low density and mass Light solid materials are also materials with good thermal insulation performance so far. Because of its nanoporous structure (1~100nm), low density (3~250kg/m3), low dielectric constant (1.1~2.5), low thermal conductivity Number (0.013~0.025W/(m-k)), high porosity (80~99.8%), surface area (500~1000m2/g) and other characteristics, showing uniqueness in mechanics, acoustics, thermals, optics, etc.
In terms of quality, aerogels seem to be "weak", but they are actually very durable. It can bear the equivalent of its own quality A thousand times the pressure will melt when the temperature reaches 1200 degrees Celsius. In addition, its thermal conductivity and refractive index are also very Low, insulation capacity is 39 times stronger than good glass fiber. In aerospace, military petroleum, chemical industry, minerals, Communication, medical, building materials, electronics, metallurgy and many other fields have extensive and huge application value, and are called "magic materials that change the world".
In terms of quality, aerogels seem to be "weak", but they are actually very durable. It can bear the equivalent of its own quality A thousand times the pressure will melt when the temperature reaches 1200 degrees Celsius. In addition, its thermal conductivity and refractive index are also very Low, insulation capacity is 39 times stronger than good glass fiber. In aerospace, military petroleum, chemical industry, minerals, Communication, medical, building materials, electronics, metallurgy and many other fields have extensive and huge application value, and are called "magic materials that change the world".
|
Model
|
ARG 150
|
ARG 200
|
ARG 300
|
|
Thermal conductivity
|
0.016-0.021 W/mk
|
0.016-0.021 W/mk
|
0.016-0.021 W/mk
|
|
Partical Size Range
|
0.1~4.0mm
|
0.1-1.2 mm
|
1.2-4.0 mm
|
|
Pore Diameter
|
~20nm
|
~20nm
|
~20nm
|
|
Porosity
|
>90%
|
>90%
|
>90%
|
|
Partical Density(Kg/m3)
|
120-150
|
120-180
|
120-180
|
|
Bluk Density(Kg/m3)
|
80-100
|
75-95
|
65-85
|
|
Performance
|
Hydrophobic
|
Hydrophobic
|
Hydrophobic
|
|
Surface Area(m2/g)
|
600-800
|
600-800
|
600-800
|
|
CAS RN
|
102262-30-6
|
102262-30-6
|
102262-30-6
|
|
Oil Absorption
|
540-650g DBP/100g
|
540-650g DBP/100g
|
540-650g DBP/100g
|
Aerogel SEM
Aerogel micrograph
Aerogel molecular structure
Performance Benefits
* Thermal insulation
* Hydrophbic/water repellant
* UV stability
* Sound absorption
* High light transmission
* Lightweight
* Non-combustible
* Inert
Products Application
1) petrochemical pipeline heat preservation and heat insulation of the fillers.
2) packing clothes.
3) insulation foam plank packing.
4) alternative gas phase silica used as all kinds of packing.
5) is suitable for manufacturing water-based aerogel slurry, add in water-based paint made in all kinds of heat preservation and
heat insulation coating.
6) powder also can instead of pigments and fillers added in powder coatings.
7) can be used as the oceans, lakes and other water oil pollution detergent.
8) can be added in the foaming PVC made sound insulation board used for building materials (20%).
2) packing clothes.
3) insulation foam plank packing.
4) alternative gas phase silica used as all kinds of packing.
5) is suitable for manufacturing water-based aerogel slurry, add in water-based paint made in all kinds of heat preservation and
heat insulation coating.
6) powder also can instead of pigments and fillers added in powder coatings.
7) can be used as the oceans, lakes and other water oil pollution detergent.
8) can be added in the foaming PVC made sound insulation board used for building materials (20%).
