Quick Details
-
Color Temperature(CCT):
-
5700K (Daylight)
-
IP Rating:
-
IP54, IP68
-
Beam Angle(°):
-
365
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
DC 48V or 24V
-
Lamp Luminous Flux(lm):
-
4*24000
-
Warranty(Year):
-
For LED,3 years
-
Working Lifetime(Hour):
-
80000
-
Working Temperature(℃):
-
Within 85
-
Type:
-
mobile solar trailer
-
Material:
-
Aluminum Alloy
-
Application:
-
outdoor
-
Light source:
-
LED
-
Certificate:
-
ISO CE ROHS SAA
-
Usage:
-
lighting and surveillance camera CCTV
-
Battery:
-
Gel battery or lithium battery
-
Feature:
-
Environmental Friendly
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Robuster Lighting
-
Model Number:
-
RPLT-4800
-
Color Temperature(CCT):
-
5700K (Daylight)
-
IP Rating:
-
IP54, IP68
-
Beam Angle(°):
-
365
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
DC 48V or 24V
-
Lamp Luminous Flux(lm):
-
4*24000
-
Warranty(Year):
-
For LED,3 years
-
Working Lifetime(Hour):
-
80000
-
Working Temperature(℃):
-
Within 85
-
Type:
-
mobile solar trailer
-
Material:
-
Aluminum Alloy
-
Application:
-
outdoor
-
Light source:
-
LED
-
Certificate:
-
ISO CE ROHS SAA
-
Usage:
-
lighting and surveillance camera CCTV
-
Battery:
-
Gel battery or lithium battery
-
Feature:
-
Environmental Friendly

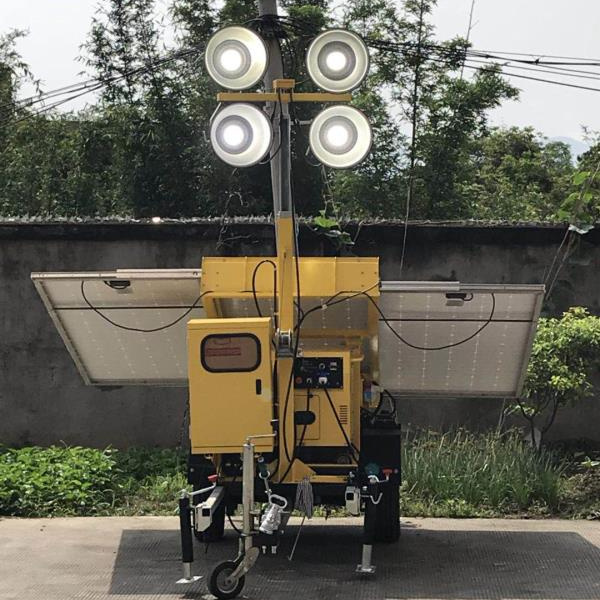

Solar lighting tower portable solar trailer optional backup diesel generator manual,hydraulic or pneumatic mast pole 6m~12m
- 8 meters max.height when fully extended,
-Lights operate at any height
-Photocell system for automatic Start/ Stop
-POWER SYSTEM
-48V DC/300AH Gel battery
-Charging way by The solar energy converter
-Three 300W Solar power panel
-48V Solar power voltage,current 15A
RPLT-4800
Technical Specifications
| Maximum extention of telescopic mast | 8~9 meter |
| Raising/lowing mast | Hydraulic |
| Stages | 6~7 sections |
| Lamp | |
| Power | 4*160W LED flood/project lights,Cree chip,round or square |
| Voltage | DC 48V |
| Luminous flux | 4*24000lm |
| Housing Material | Aluminium |
| Certificates | CE,SAA |
| Battery pack system | |
| Battery material | Lithium interchangeable battery |
| Battery capacity | 16*3.2V*200AH |
|
Working hours for Lighting
|
>12 hours |
| The battery voltage | DC 48V |
| Charging way | The solar energy /The power converter |
| The solar energy | |
| Power of Solar panels | 3X320W |
| Solar power voltage | DC 48V |
| Current | 20A |
| Trailer | |
| Tow hitch |
Ball or ring hitch
|
| Tire Size | 52 cm |
|
Anti-wind capacity
|
100 Km/h |
| Axle | Single |
| Packing Dimension | |
| Storage | 4020*2080*2250mm |
| Working | 4020*2080*10250mm |
| Container Load (20GP) | 6 units |
More Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
