Quick Details
-
Voltage/frequency:
-
220-240V/50hz
-
Cooling sytem:
-
Dry cooling sytem
-
Climate:
-
N
-
Temperature:
-
3-8℃
-
Dispense capacity:
-
25 L/H
-
Pull down time:
-
5~8min
-
Compressor Power:
-
1/4 HP
-
Product Dimension(W*D*H):
-
168*395*415 mm
-
Beer coil length:
-
8 meter
-
Refrigerant:
-
R134a / R600a
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AMED
-
Model Number:
-
AM-SY01
-
Voltage/frequency:
-
220-240V/50hz
-
Cooling sytem:
-
Dry cooling sytem
-
Climate:
-
N
-
Temperature:
-
3-8℃
-
Dispense capacity:
-
25 L/H
-
Pull down time:
-
5~8min
-
Compressor Power:
-
1/4 HP
-
Product Dimension(W*D*H):
-
168*395*415 mm
-
Beer coil length:
-
8 meter
-
Refrigerant:
-
R134a / R600a

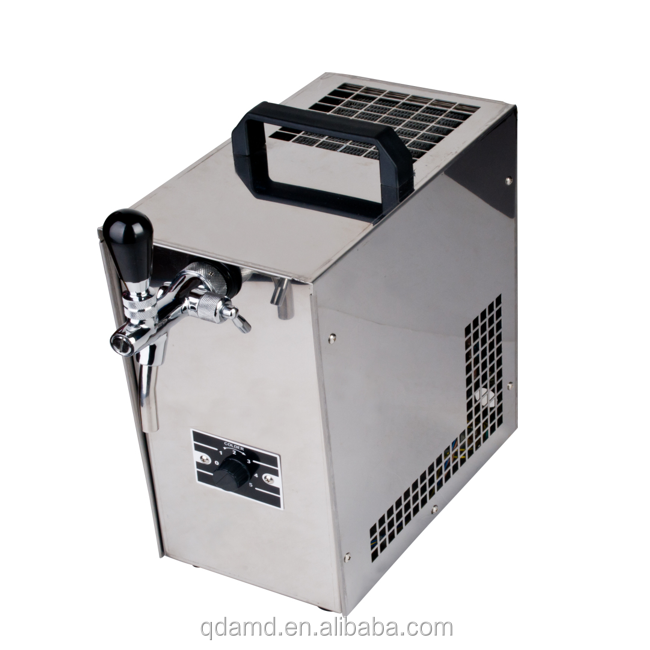

Over counter dry contact beer cooler with ice tube cooling for beer and beverage cooling
AM-SY01
Features & Benefits
* It c an cool beer very quickly. The best chilled beer will be ready in the thermoblock within 5-8 minutes after the coller has been switched on.
* Small dimension With mini pump and handle , sophiticated design and h igh polish stainless steel case, quick and easy to install, suitable for small size bar.
* Environmentally friendly refrigerant & low energy consumption.High press density and thick insulation to keep the cool inside the cabinet
*Performance: rapid cooling, 46-50 cups of 500cc dispensable per hour
* Rapid boot: 5-8 mins to get into the refridgeration condition
Optional
* Customized beer tower and taps available
Specification of AM-SY01A
| Technical Data | ||
| Cooling sytem | / | Dry cooling system |
| Dispense Capacity | L/H | 25 46~50 cups of 500cc dispenserable per hour |
| Outlet temperature of beverage | ℃ | 3~8 |
| Pull down time | min | 5~8 |
| Beer coil length | m | 8 |
| Climate class | ℃ | N |
| Certificate | / | CCC |
| Main material | / | Stainless steel |
| Electrical Data | ||
| Voltage/Frequency | / | 220~240V/50HZ,60HZ |
| Compressor rated Power | HP | 1/4HP |
| Cooling power | W | 421 |
| Refrigerant | / | R134a |
| Weight & Dimensions | ||
| Gross weight | kg | 20 |
| Net weight | kg | 17 |
| External dimensions (W*D*H) | mm | 168*395*415 |
| Packaging dimensions (W*D*H) | mm | 188*415*465 |
