Quick Details
-
Rated Voltage:
-
230V
-
Frequency:
-
50/60Hz
-
Application:
-
alarm
-
Material:
-
Plastic sealing, Polyamide
-
Voltage Range:
-
24-36V
-
Termination:
-
2*2.5mm²
-
Voltage - Rated:
-
24-36V
-
Series:
-
CH1208
-
Features:
-
The shell is made of aluminum alloy
-
Mounting Type:
-
Board back type or matching with the box body
-
Size / Dimension:
-
140*50
-
Description:
-
Equipped with imported buzzer components
-
Product name:
-

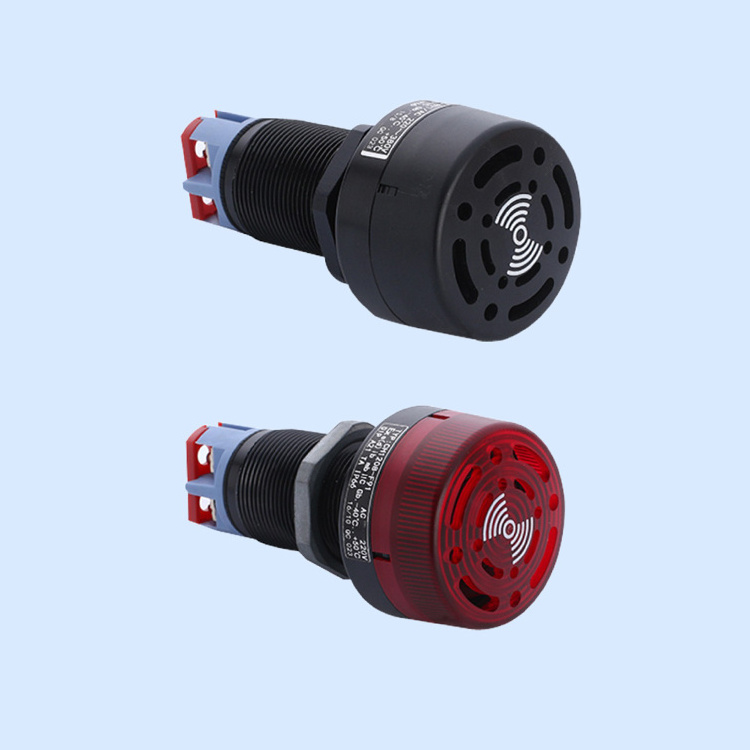

Explosion proof (flash) buzzer for panel mounting
-
Color:
-
red,black
-
Certification:
-
Ex NEPSI & CNEX
-
Working temperature:
-
-40℃~ +60℃
-
Rated voltage:
-
AC/DC24-36V,AC240V
-
Electric life:
-
00,000 hours
-
Warranty:
-
1 Year or depend on the products
-
Sound pressure level:
-
60dB (at 30 cm)
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YXFB
-
Model Number:
-
CH1208-1
-
Rated Voltage:
-
230V
-
Frequency:
-
50/60Hz
-
Application:
-
alarm
-
Material:
-
Plastic sealing, Polyamide
-
Voltage Range:
-
24-36V
-
Termination:
-
2*2.5mm²
-
Voltage - Rated:
-
24-36V
-
Series:
-
CH1208
-
Features:
-
The shell is made of aluminum alloy
-
Mounting Type:
-
Board back type or matching with the box body
-
Size / Dimension:
-
140*50
-
Description:
-
Equipped with imported buzzer components
-
Product name:
-
Explosion proof (flash) buzzer for panel mounting
-
Color:
-
red,black
-
Certification:
-
Ex NEPSI & CNEX
-
Working temperature:
-
-40℃~ +60℃
-
Rated voltage:
-
AC/DC24-36V,AC240V
-
Electric life:
-
00,000 hours
-
Warranty:
-
1 Year or depend on the products
-
Sound pressure level:
-
60dB (at 30 cm)
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
YXFB
|
|
Model Number
|
CH1208-0315
|
|
Product name
|
Explosion proof (flash) buzzer for panel mounting
|
|
Color
|
red,black
|
|
Material
|
Polyamide
|
|
Certification
|
Ex NEPSI & CNEX
|
|
Working temperature
|
-40℃~ +60℃
|
|
Rated voltage
|
AC/DC24-36V,AC240V
|
|
Electric life
|
00,000 hours
|
|
Warranty
|
1 Year or depend on the products
|
|
Sound pressure level
|
60dB (at 30 cm)
|
|
|
|
Features
1.The transparent part is injection molded from polycarbonate;
2.Equipped with imported buzzer components;
3. The shell is made of aluminum alloy, the surface is anodized, or stainless steel;
4.The buzzer module is designed with flashing type and non-flashing type;
5.The flashing buzzer has a variety of flashing colors to choose from;
6. LED indicator, with super long service life (>60000h), energy saving, environmental protection and other performance;
7. installation form: behind the board type explosion-proof buzzer is used in conjunction with the cover or the box. Can not be used alone in explosive gas environment and combustible dust environment.
