Chassis
Mature chassis used is made by using worldclass technology, stable and reliable.
Engine
Engine provided is B3.9-C turbocharged engine imported with original packaging, and is trustworthy.
Main winch
It is provided with the complete set of imported hydraulic system assembly, which makes the main winch high-efficiency and powerful.
Auxiliary winch
It has auxiliary winding function, which makes construction conveniently.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
35000 KG
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuchai
-
Dimension(L*W*H):
-
12630*2990*3350mm
-
Weight:
-
35000 KG
Contact
Sylvi Lu
Sales Consultant
Phone/iMessage/Wechat/Whatsapp:
+86 18766381590
Email: sylvi@maxizm.com
www.maxizm.com
MAXIZM Construction Machinery Co.,Ltd
www.maxizm.com
(
construction equipment: truck crane, wheel loader, excavator, bulldozer, road roller, motor grader, forklift, concrete machinery, dump truck, etc.)

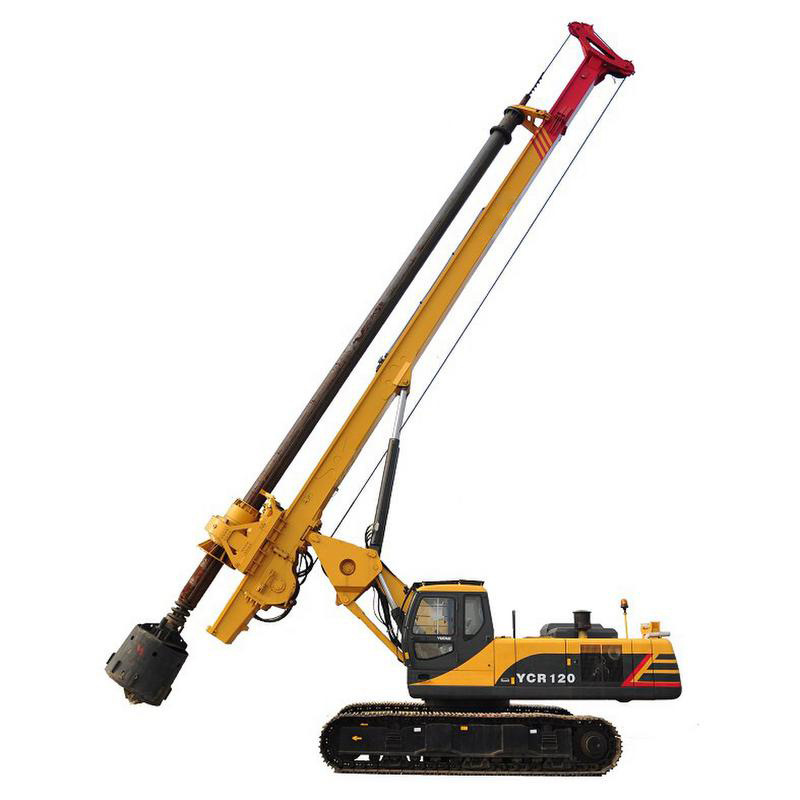

YuChai Rotary Drilling Rig YCR120
Products Description
Product Paramenters
|
Model
|
YCR120
|
|
||
|
Chassis
|
Rated power/speed
|
194/1900kw/rpm
|
||
|
|
Overall width(extended side frames)
|
2990mm
|
||
|
|
Track shoe width
|
800mm
|
||
|
|
Traction force
|
350KN
|
||
|
Power Head
|
Max. torque
|
160kN.m
|
||
|
|
Speed
|
28 r/min
|
||
|
|
Max. pressure
|
50kN
|
||
|
|
Max pulling force
|
60kN
|
||
|
|
Pressurized cylinder stroke
|
1500mm
|
||
|
|
|
|
||
|
Main Hoist
|
The first layer lifting force
|
160kN
|
||
|
|
Max lifting speed
|
80m/min
|
||
|
|
Rope diameter
|
Φ26mm
|
||
|
|
|
|
||
|
Deputy Hoist
|
The first layer lifting force
|
50kN
|
||
|
|
Max lifting speed
|
75m/min
|
||
|
|
Rope diameter
|
Φ16mm
|
||
|
|
|
|
||
|
Kelly Bar
|
The forward angle
|
5°
|
||
|
|
The inclination angle of the left and right
|
±4°
|
||
|
|
Kelly bar diameter
|
Φ377mm
|
||
|
|
Operating weight
|
62t
|
||
|
|
|
|
||
|
Depth and Diameter
|
Max diameter
|
1500mm
|
||
|
|
Max depth
|
55m
|
||
|
|
|
|
||
|
Size of Machine
|
Operating height
|
17100mm
|
||
|
|
Operating width
|
4000mm
|
||
|
|
Transport height
|
3455mm
|
||
|
|
Transport width
|
3110mm
|
||
Details Images
