Quick Details
-
Material:
-
PP
-
Weight (KG):
-
1.5 kg
-
Membrane:
-
PP,cotton,glass fiber
-
Core:
-
PP,stainless steel
-
O ring/Gasket:
-
Silicone, EPDM, Buna , Viton
-
Pore size:
-
1,5,10,20,30,50,100,150 Micron
-
Outer Diameter(OD):
-
60mm,61mm,62mm,63mm,115mm(can be decided by client)
-
Length(inch):
-
5"10"20" 30"40"(can be decided by client)
-
Max differential pressure:
-
4.5 bar at 25°C
-
Recommended change out:
-
1-1.5bar
-
Application:
-
Water Purification
-
Product name:
-
string wound filter cartridge/cotton yarn filter cartridge
Quick Details
-
Core Components:
-
PP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JK
-
Material:
-
PP
-
Weight (KG):
-
1.5 kg
-
Membrane:
-
PP,cotton,glass fiber
-
Core:
-
PP,stainless steel
-
O ring/Gasket:
-
Silicone, EPDM, Buna , Viton
-
Pore size:
-
1,5,10,20,30,50,100,150 Micron
-
Outer Diameter(OD):
-
60mm,61mm,62mm,63mm,115mm(can be decided by client)
-
Length(inch):
-
5"10"20" 30"40"(can be decided by client)
-
Max differential pressure:
-
4.5 bar at 25°C
-
Recommended change out:
-
1-1.5bar
-
Application:
-
Water Purification
-
Product name:
-
string wound filter cartridge/cotton yarn filter cartridge

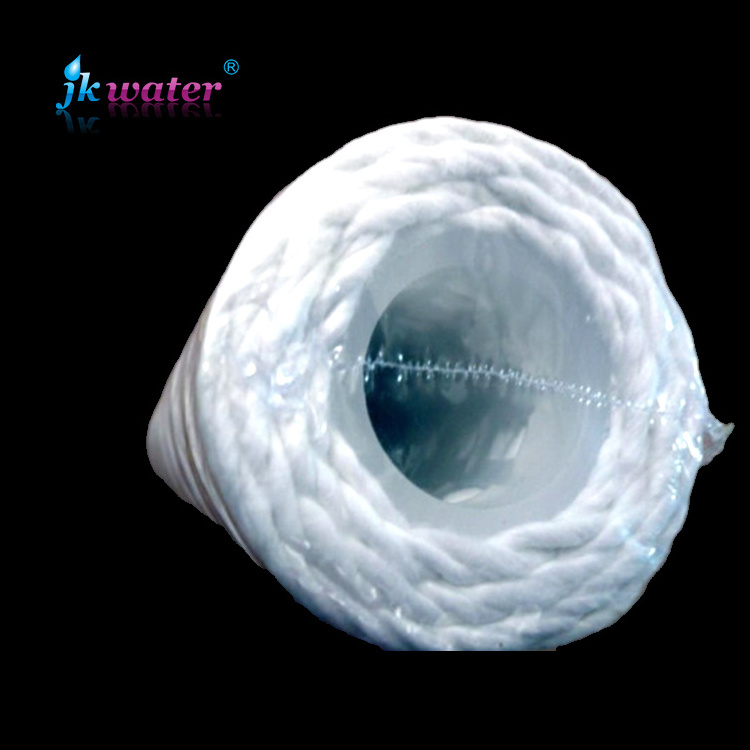

String wound filter cartridge/cotton yarn filter cartridge/glass fiber filter cartridge
Specification
| Material | Membrane: | PP,cotton,glass fiber |
| Core: | PP,stainless steel | |
| O ring/Gasket: | Silicone, EPDM, Buna , Viton | |
| Specifications | Pore size(um): | 1,5,10,20,30,50,100,150 Micron |
| Outer Diameter(OD): | 60mm,61mm,62mm,63mm,115mm(can be decided by client) | |
| Length(inch): | 5"10"20"30"40"(can be decided by client) | |
| Technical data | Max differential pressure: | 4.5 bar at 25°C |
| Recommended change out: | 1-1.5bar | |
| Max temperature: | PP yarn+PP core(80°C) Cotton yarn+SS core(180°C) Glass fiber+SS core(200°C) |
