Quick Details
-
Model Number:
-
YG6, YG8, JX55, K10/K20/K30
-
Size:
-
OEM Available, Customized
-
Surface:
-
Blanks or polished grinding
-
Raw material:
-
100% Virgin tungsten carbide
-
Application:
-
motorcycles wear parts,tire studs
-
Free Sample:
-
1-2 pcs available
-
Payment:
-
T/T, L/C, western union and money gram
-
Name:
-
Carbide Screw Ice grip studs bicycle tire snow spike studs
-
Certificate:
-
ISO9001:2015
Quick Details
-
Warranty:
-
5 month
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HONGZUAN
-
Model Number:
-
YG6, YG8, JX55, K10/K20/K30
-
Size:
-
OEM Available, Customized
-
Surface:
-
Blanks or polished grinding
-
Raw material:
-
100% Virgin tungsten carbide
-
Application:
-
motorcycles wear parts,tire studs
-
Free Sample:
-
1-2 pcs available
-
Payment:
-
T/T, L/C, western union and money gram
-
Name:
-
Carbide Screw Ice grip studs bicycle tire snow spike studs
-
Certificate:
-
ISO9001:2015

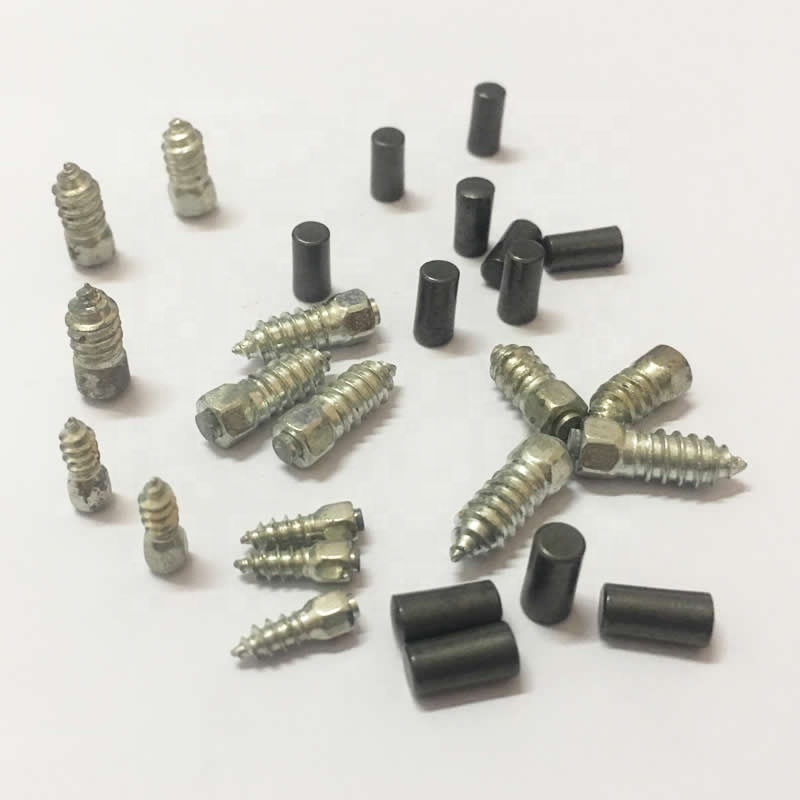

Tungsten Carbide Stud pin for the Tyre studs spike shoes horses buses trucks
Carbide pins, carbide stud, carbide spike, hardmetal pin
We produce a series of Tungsten Carbide Pins for the tire stud/spike, due to the
application of the double-action pressing machines and the well-prepared materials, our
carbide pins can be controlled within a very tight tolerance at +/-0.05mm
All of our materials for the carbide pins /stud are made by our own Powder Plant,
So our quality is fine and the price is competitive. Any of your inquiries about our carbide pins will be warmly welcomed
We offer different size carbide tips&pins depending on your needs.
The carbide tips&pins have wide applications:
1. As scriber tips, they are assembling on tool bit for engraving or scribing on very hard items, like aluminum, brass, bronze, metals, steel, glass, ceramics, hardwood, plastics, concrete and so on.
2. As glass breaker, they're designed for breaking glass or hard surface when emergency.
3. As Bush Hammer carbide tips, they're mounted on an 11-inch or 9-inch plate, to be run under a concrete floor grinder. The tool is designed to break down difficult coatings, and leaves a textured surface to promoted bonding of future coatings or overlays.
What can Bush Hammers do?
a.Surface Prep for coatings
b.Quickly expose large aggregate
c.Remove hard coatings and overlays Ideal for use on exterior spaces and creating anti-slip surfaces. They also work great for removal of thin coatings when prepping the floor for epoxy application.
4. For making core clampers of Lathes and Periphery Grinders.
Our strength:
Seal rings , bushings and sleeves, nozzles, sandblasting nozzles , balls and seats, valves /choke beans for fluid controlling , carbide pins/stud , inserts for woodworking , inserts for tobacco machine , Drill bits for oil well , carbide tips for coal drilling /rock drilling ,carbide wear resistance plate etc wear resistance parts.
Main Grade for Tungsten carbide studs, pins, spike
| Grade/ Properties / Application | ||||||||
| Grade | Equal to ISO Category Number | Performance | Performance&application recommended | |||||
| Density | Bend Strength | Hardness | ||||||
| G/Cm 3 | N/mm 2 | HRA | ||||||
| YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. | |||
| YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 | ||||
| YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. | |||
| YG8 | K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. | |||
| YG10X | 14.5 | 2400 | 91.5 | Fine grain alloy, good wear resistance,Used for processing hard | ||||
| wood, veneer board,PCB,PVC and metals. | ||||||||
| YL10.2 | 14.5 | 2400 | 91.8 | Forming or stamping dies for metal powders and nonmental powders. | ||||
| YG13X | 14.3 | 2600 | 89.5 | For oil cone dril bits, for medium soft and medium-hard rocks. | ||||
Our Main products include : Carbide ball and seat, Carbide plates for agriculture wear parts, Carbide gipper, Strips, Bushings, Seals ring, Brazed tips, Nozzles, End Mills & Drill Bits, CNC inserts, Rotary Burrs, Grits, Customized carbide cutter: Woodworking tool cutter, V-cutter, mining tool, Any customized carbide products are acceptable.
