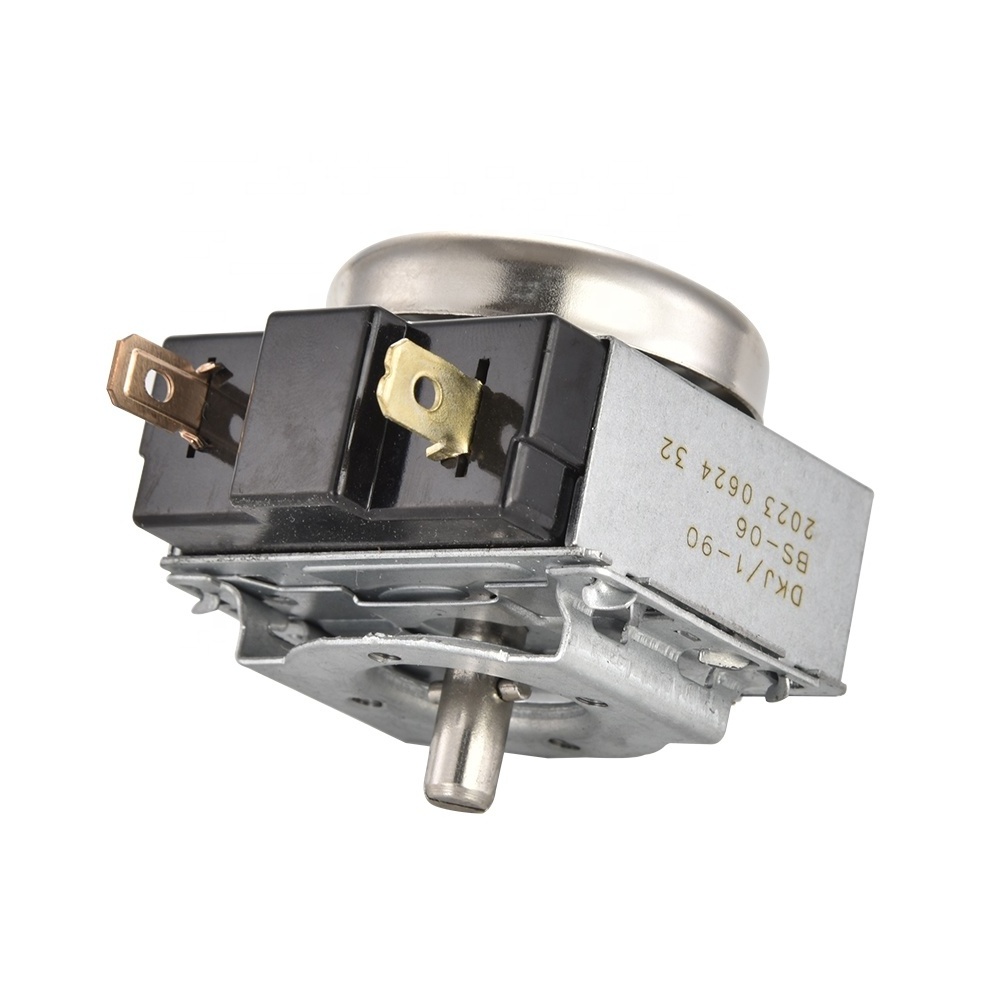

imichef Customized Factory Wholesale Electric Pressure Cooker Mechanical Timer Switch With Bell Spare Parts For Oven Rice Cooker

After-sales Service Provided

Return and Replacement

Warranty

1 Year

Type

Electric Pressure Cooker Parts

Application

Hotel, Commercial, Household

Power Source

Electric

Place of Origin

China

Guangdong

Brand Name

OEM/ODM

Model Number

IMF-TMS01-90

Time Setting Range

15'/20'/30'/60'/120'/180' or custom

Applicable

microwave / oven / electric pressure cooker / other kitchen machine

Contact Capacity

AC 120V 15A; AC 250V 15A

Time Setting Direction

Continuous

Working Direction

Counterclockwise

Operating Temperature Range

-10 ° C -+120 °C

Product Cycles

>=10000 times, 6 times/min

Working Angle

270 ° ± 5 ° / 285 ° ± 5 ° / 315 ° ± 5 ° or custom

Insulation Resistance

1500V / 1min; 1800V / sec (DC 500V megohmmeter)

Withstand Voltage

1 minute minute ac1800v / 0.5A

Operation

<0.4N.m

Shaft Shank

horizontal pin or flat shaft or custom

Operating Torque

1.0-4.0kg.f-cm

Loosen Torque

1.0-4.0kg.f-cm

Time Tolerance

±4% (270°)-±5%

Specifications and Features

1. When the timer stops running, the system will cut off the power and stop the control system.
2. Single current system, on/off.
3, precision production makes the product's operating error is almost zero, and high temperature resistance.
4. When the prompt sounds, it means the timer stops running. (system closed)
1-180 minutes oven timer passed UL, TUV certification, suitable for kitchen appliances such as rice cooker / oven, electric
steamer
