Quick Details
-
Voltage:
-
DC 12 V
-
Operating time:
-
4-6s
-
Cabinet material:
-
die-Cast Zinc alloy
-
Remote control:
-
15 M
-
Protection Grade:
-
IP 68
-
Certificates:
-
CE, ISO
-
Weight bear:
-
5 T
-
Current:
-
0.4 A
-
Dimension:
-
357*370*82.5 mm
-
Keyword:
-
parking lock
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEJOIN
-
Model Number:
-
CS101
-
Voltage:
-
DC 12 V
-
Operating time:
-
4-6s
-
Cabinet material:
-
die-Cast Zinc alloy
-
Remote control:
-
15 M
-
Protection Grade:
-
IP 68
-
Certificates:
-
CE, ISO
-
Weight bear:
-
5 T
-
Current:
-
0.4 A
-
Dimension:
-
357*370*82.5 mm
-
Keyword:
-
parking lock

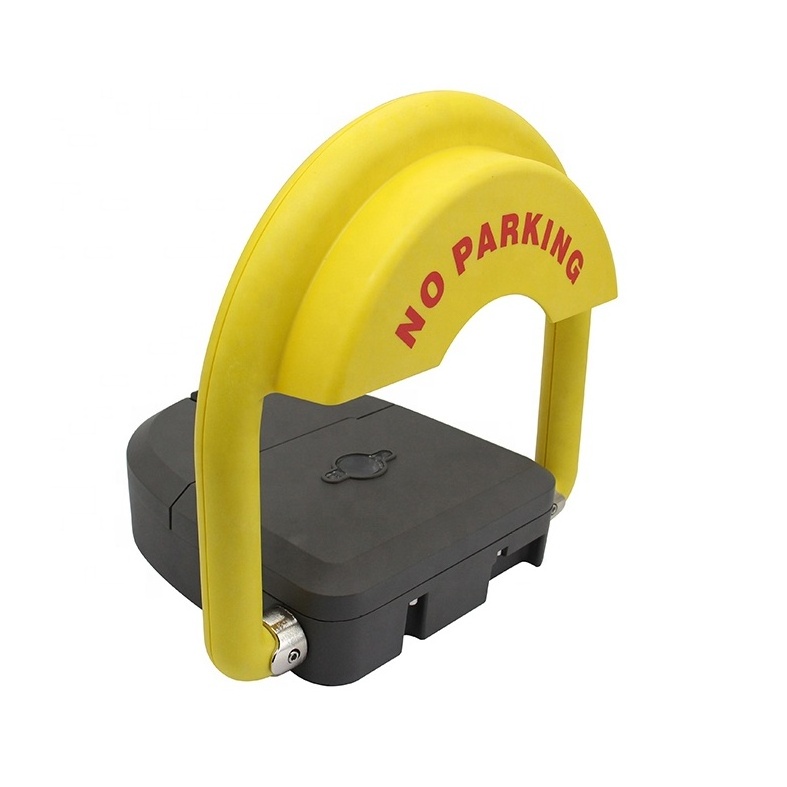

Remote control car no parking barrier
Specification
|
Voltage |
DC12V |
Battery |
DC12, 7Ah |
|
Dimension |
357×370×82.5mm |
Current |
0.4A |
|
Running Time |
4~6s |
Extended Height |
340mm |
|
Remote Distance |
≤15M |
Working Temperature |
-35 ℃ ~+55 ℃ |
|
Weight Born |
5t |
IP Class |
IP68 |
WJCS101 Dimension
Functions & Features
1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.
2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.
3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install .
Product Installation
A. Installation Spot: It is suggested to install the parking lock at the very center of parking seat.
B. Installation Ground: To install the parking lock in a dry and smooth concrete ground, and no radio signal interference around.
C. Installation Steps: Drill four corresponding holes 10*5 mm in the ground and use four expansion bolts prepared in the package to fasten it. (as the following drawings show)
